09450-04940 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935001930
09450-04940 PUMP ASSY, INJECTI
Rating:
60
Buy PUMP ASSY, INJECTI 09450-04940 genuine, new aftermarket engine parts with delivery

Components :

001. PUMP ASSY, INJECTI 09450-04940

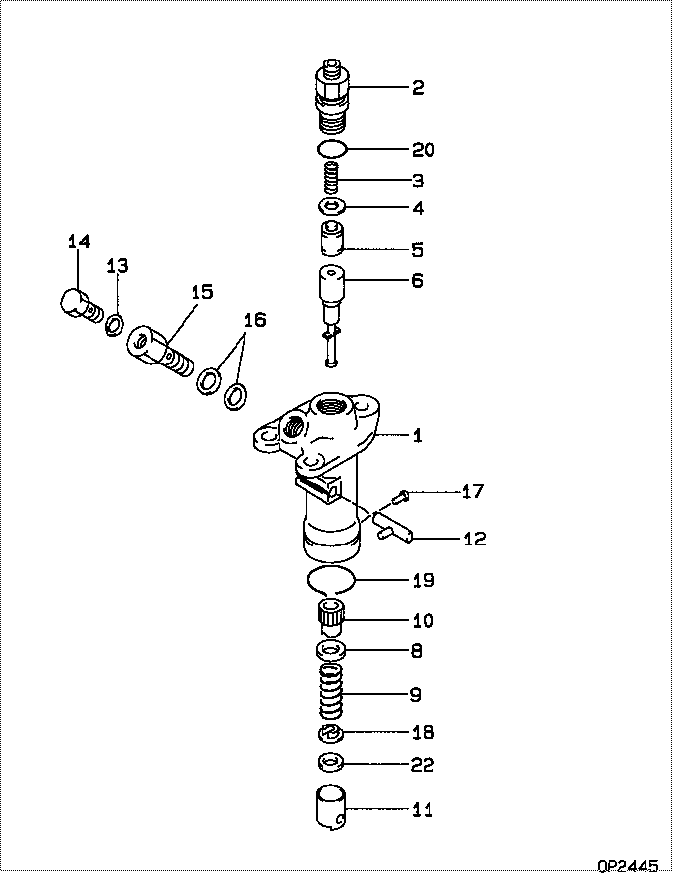

Scheme ###:

000. [01] 09450-04940 PUMP ASSY, INJECTI 19701-51011
001. [01] 09011-02300 HOUSING SUB-ASSY, 14287-51081
002. [01] 09013-10280 HOLDER, DELIVERY V 15601-51221
002. [01] 09013-10520 HOLDER, DELIVERY V
003. [01] 09013-60230 SPRING, DELIVERY V 15221-51231
004. [01] 09013-70061 GASKET, DELIVERY V 15221-51241
004. [01] 09013-70130 GASKET, DELIVERY V 11420-51241
005. [01] 09014-00410 VALVE SUB-ASSY, IN 15221-51031
006. [01] 09015-01790 ELEMENT SUB-ASSY, 14911-51051
008. [01] 09016-30082 SEAT, SPRING, UPR 15221-51271
009. [01] 09016-40170 SPRING, PUMP PLUNG 15221-51281
010. [01] 09016-10210 SLEEVE, PLUNGER CO 15221-51382
011. [01] 09017-00170 TAPPET SUB-ASSY,IN 15221-51071
011-001. [01] 09017-10021 TAPPET, INJECTION 15021-51990
011-002. [01] 09217-60010 ROLLER, FEED PUMP 15109-52931
011-003. [01] 09017-60020 PIN, INJECTION PUM 15021-51970
012. [01] 09021-00342 RACK ASSY, CONTROL 14911-51061
013. [01] 94901-81020 WASHER, COPPER PLA 15221-96661
014. [01] 09024-40080 SCREW, AIR BLEEDER 15221-51351
015. [01] 09024-50080 SCREW, HOLLOW 15221-51321
016. [01] 09024-10010 WASHER, AIR BLEEDE 15221-96651
017. [01] 09018-30041 PIN, INJECTION PUM 15221-51251
017. [01] 09018-30130 PIN, INJECTION PUM
018. [01] 09030-10060 SEAT, SPRING, LWR 15021-51291
019. [01] 94907-20830 RING, SNAP 14911-51431
020. [01] 09013-90410 O-RING
020. [01] 90802-20150 O-RING 14611-51201
022. [1C] 09031-10300 PLATE, TAPPET ADJU
022. [1C] 09031-10280 PLATE, TAPPET ADJU
022. [1C] 09031-10170 PLATE, TAPPET ADJU
022. [1C] 09031-10160 PLATE, TAPPET ADJU
022. [1C] 09031-10140 PLATE, TAPPET ADJU
022. [1C] 09031-10130 PLATE, TAPPET ADJU 15221-51491
022. [1C] 09031-10120 PLATE, TAPPET ADJU
022. [1C] 09031-10110 PLATE, TAPPET ADJU
022. [1C] 09031-10010 PLATE, TAPPET ADJU 14109-51301
022. [1C] 09031-10310 PLATE, TAPPET ADJU

Include in #3:

09450-04940 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09450-04940  19701-5101  PUMP ASSY, INJECTI
19701-51011    KUBOTA PUMP ASSY, INJECTI




Information:

Introduction
The permanent solution for the problem that is identified below is not known. Until the permanent solution is known, use the solution that is identified below.Problem
The above listed serial numbers have had issues with metal shavings in the Hydraulic Electronic Unit Injector (HEUI) oil passages. These shavings were left in the HEUI oil passages as a result of a nozzle that was not operating correctly.Solution
Return 0R-8849 Cylinder Head Gp with date codes 09006 through date code 12006. Return the 0R-7907 Cylinder Block Gp with the following sequence numbers.
Table 1
Sequence Numbers
01650     01649     01648     01647     01646
01645     01644     01642     01641     01636
01635     01630     01628     01627     01626
01625     01618     01617     01614     01613
01610     01609     01608     01607     01606
01605     01603     01602     01600     01599
01598     01597     01595     01592        Note: If cylinder blocks or cylinder heads have been installed, do not replace the cylinder heads. Instead, flush the HEUI oil system and replace all of the fuel injectors.
