Information pump assy, injecti
Nozzle:
0935001000
Rating:
Components :

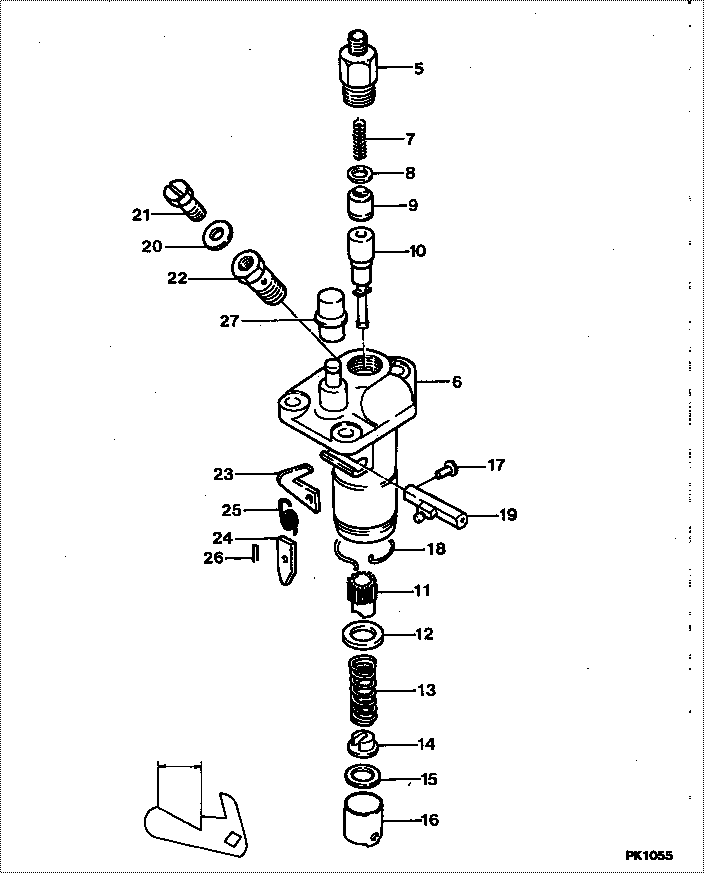

| 001. | PUMP ASSY, INJECTI | 09450-04400 |
Scheme ###:
| 000. | [01] | 09450-04400 | PUMP ASSY, INJECTI | MM335746 |
| 005. | [01] | 09013-10010 | HOLDER, DELIVERY V | ME022081 |
| 006. | [01] | 19011-01681 | HOUSING KIT, INJEC | |
| 007. | [01] | 09013-60080 | SPRING, DELIVERY V | MM500331 |
| 008. | [01] | 09013-70010 | GASKET, DELIVERY V | ME022084 |
| 009. | [01] | 09014-00500 | VALVE SUB-ASSY, IN | MM500010 |
| 010. | [01] | 09015-01521 | ELEMENT SUB-ASSY, | MM500886 |
| 011. | [01] | 09016-10200 | SLEEVE, PLUNGER CO | MM500878 |
| 012. | [01] | 09016-30191 | SEAT, SPRING, UPR | ME736080 |
| 012. | [01] | 09016-30010 | SEAT, SPRING, UPR | ME702061 |
| 013. | [01] | 09016-40010 | SPRING, PUMP PLUNG | ME702062 |
| 014. | [01] | 09016-50160 | SEAT, SPRING, LWR | MM514055 |
| 015. | [ C] | 09031-10270 | PLATE, TAPPET ADJU | MM500978 |
| 015. | [ C] | 09031-10260 | PLATE, TAPPET ADJU | MM500977 |
| 015. | [ C] | 09031-10250 | PLATE, TAPPET ADJU | MM500976 |
| 015. | [ C] | 09031-10240 | PLATE, TAPPET ADJU | MM500975 |
| 015. | [ C] | 09031-10230 | PLATE, TAPPET ADJU | MM500974 |
| 015. | [ C] | 09031-10220 | PLATE, TAPPET ADJU | MM500973 |
| 015. | [ C] | 09031-10210 | PLATE, TAPPET ADJU | MM500972 |
| 015. | [ C] | 09031-10200 | PLATE, TAPPET ADJU | MM500971 |
| 015. | [ C] | 09031-10190 | PLATE, TAPPET ADJU | MM500970 |
| 016. | [01] | 09017-00160 | TAPPET SUB-ASSY,IN | MM500880 |
| 017. | [01] | 09018-30060 | PIN, INJECTION PUM | MM500881 |
| 018. | [01] | 09018-40060 | RING, CLAMP | MM500371 |
| 019. | [01] | 09021-00121 | RACK ASSY, CONTROL | MM500374 |
| 020. | [01] | 09022-20080 | WASHER, FUEL PIPE | ME702235 |
| 021. | [01] | 09024-40190 | SCREW, AIR BLEEDER | MM501359 |
| 021. | [01] | 09024-40180 | SCREW, AIR BLEEDER | MM501152 |
| 022. | [01] | 09024-50210 | SCREW, HOLLOW | MM501320 |
| 023. | [ C] | 09021-90161 | STOPPER | MM500477 |
| 023. | [ C] | 09021-90760 | STOPPER | MM500394 |
| 023. | [ C] | 09021-90750 | STOPPER | MM500393 |
| 023. | [ C] | 09021-90740 | STOPPER | MM500392 |
| 023. | [ C] | 09021-90730 | STOPPER | MM500814 |
| 023. | [ C] | 09021-90720 | STOPPER | MM500813 |
| 023. | [ C] | 09021-90181 | STOPPER | MM500382 |
| 023. | [ C] | 09021-90171 | STOPPER | MM500476 |
| 025. | [01] | 09055-40040 | SPRING, DIAPHRAGM | MM500405 |
| 026. | [01] | 90400-16101 | PIN, SPLIT | MM500431 |
| 027. | [01] | 09007-80013 | COVER | MM500365 |
Include in #3:
09450-04400
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09450-04400 | MM335746 | PUMP ASSY, INJECTI | |
| MM335746 | MITSUBISHI | PUMP ASSY, INJECTI |
Information:
Features and Benefits Cat Remanufactured injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured Injectors by providing immediate, off-the-shelf availability at a fraction of the new price.
Features Benefits
All critical engineering changes and updates included
Improved reliability and performance
Worldwide availability through Caterpillar? parts distribution system
Customer access regardless of location
Off the shelf availability
Reduced downtime
Backed by Cat warranty
Consistent support
Core Acceptance
Core Acceptance Criteria for Caterpillar Remanufactured injectors is simple. Full core credit is issued when the core is fully assembled, there is no excessive rust or non-operational damage and it is an acceptable part number. Consult your Core Acceptance Guide for complete details.
Warranty
Please consult the appropriate warranty statement for your area.
Core Management
Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all Reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail.
For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website https://reman.cat.com.
If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537 - 2928. For assistance with technical questions, call the Peoria Reman Customer Satisfaction Hot Line also toll free at (888) 88-REMAN or use our E-mail address -- Reman_Help.
PELJ0637 CATERPILLAR? ?2006 Caterpillar
Features Benefits
All critical engineering changes and updates included
Improved reliability and performance
Worldwide availability through Caterpillar? parts distribution system
Customer access regardless of location
Off the shelf availability
Reduced downtime
Backed by Cat warranty
Consistent support
Core Acceptance
Core Acceptance Criteria for Caterpillar Remanufactured injectors is simple. Full core credit is issued when the core is fully assembled, there is no excessive rust or non-operational damage and it is an acceptable part number. Consult your Core Acceptance Guide for complete details.
Warranty
Please consult the appropriate warranty statement for your area.
Core Management
Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all Reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail.
For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website https://reman.cat.com.
If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537 - 2928. For assistance with technical questions, call the Peoria Reman Customer Satisfaction Hot Line also toll free at (888) 88-REMAN or use our E-mail address -- Reman_Help.
PELJ0637 CATERPILLAR? ?2006 Caterpillar
