Information pump assy, injecti
Nozzle:
0935001000
Rating:
Components :
| 001. | PUMP ASSY, INJECTI | 09450-04390 |

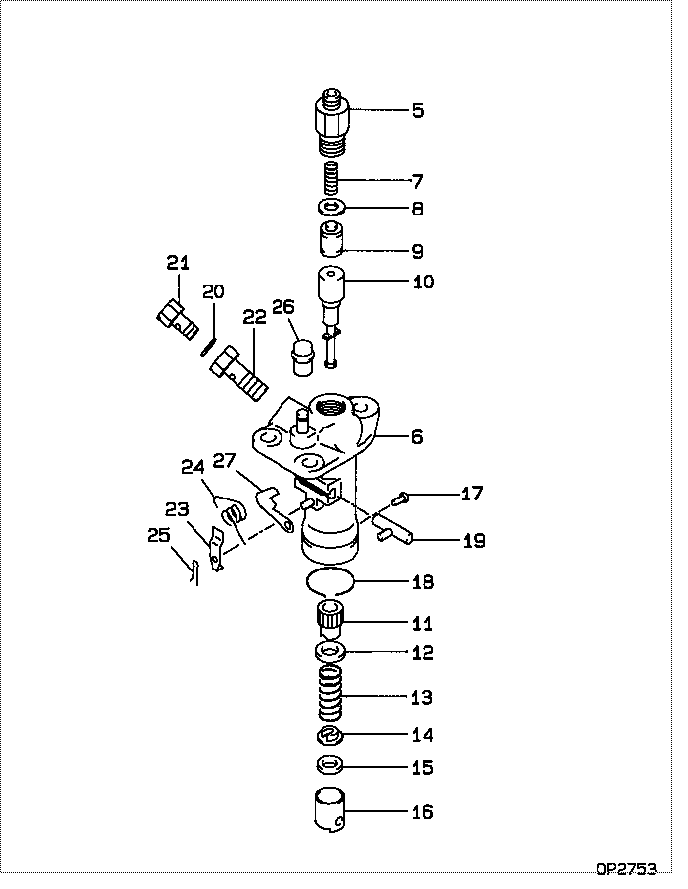

Scheme ###:
| 000. | [01] | 09450-04390 | PUMP ASSY, INJECTI | MM335738 |
| 005. | [01] | 09013-10440 | HOLDER, DELIVERY V | MM501137 |
| 006. | [01] | 19011-01860 | HOUSING KIT, INJEC | MM501042 |
| 007. | [01] | 09013-60080 | SPRING, DELIVERY V | MM500331 |
| 008. | [01] | 09013-70010 | GASKET, DELIVERY V | ME022084 |
| 009. | [01] | 09014-00500 | VALVE SUB-ASSY, IN | MM500010 |
| 010. | [01] | 09015-01521 | ELEMENT SUB-ASSY, | MM500886 |
| 011. | [01] | 09016-10200 | SLEEVE, PLUNGER CO | MM500878 |
| 012. | [01] | 09016-30010 | SEAT, SPRING, UPR | ME702061 |
| 013. | [01] | 09016-40010 | SPRING, PUMP PLUNG | ME702062 |
| 014. | [01] | 09016-50160 | SEAT, SPRING, LWR | MM514055 |
| 015. | [1C] | 09031-10270 | PLATE, TAPPET ADJU | MM500978 |
| 015. | [1C] | 09031-10260 | PLATE, TAPPET ADJU | MM500977 |
| 015. | [1C] | 09031-10250 | PLATE, TAPPET ADJU | MM500976 |
| 015. | [1C] | 09031-10240 | PLATE, TAPPET ADJU | MM500975 |
| 015. | [1C] | 09031-10230 | PLATE, TAPPET ADJU | MM500974 |
| 015. | [1C] | 09031-10220 | PLATE, TAPPET ADJU | MM500973 |
| 015. | [1C] | 09031-10210 | PLATE, TAPPET ADJU | MM500972 |
| 015. | [1C] | 09031-10200 | PLATE, TAPPET ADJU | MM500971 |
| 015. | [1C] | 09031-10190 | PLATE, TAPPET ADJU | MM500970 |
| 016. | [01] | 09017-00160 | TAPPET SUB-ASSY,IN | |
| 017. | [01] | 09018-30060 | PIN, INJECTION PUM | MM500881 |
| 018. | [01] | 09018-40060 | RING, CLAMP | MM500371 |
| 019. | [01] | 09021-00121 | RACK ASSY, CONTROL | MM500374 |
| 020. | [01] | 09022-20080 | WASHER, FUEL PIPE | ME702235 |
| 020. | [01] | 94901-81020 | WASHER, COPPER PLA | ME022309 |
| 021. | [01] | 09024-40180 | SCREW, AIR BLEEDER | MM501152 |
| 022. | [01] | 09024-50210 | SCREW, HOLLOW | MM501320 |
| 023. | [01] | 09022-30010 | PLATE, PUSH | MM500401 |
| 024. | [01] | 09055-40040 | SPRING, DIAPHRAGM | MM500405 |
| 025. | [01] | 90400-16101 | PIN, SPLIT | MM500431 |
| 026. | [01] | 09007-80013 | COVER | MM500365 |
| 027. | [1C] | 09021-92940 | STOPPER | MM514063 |
| 027. | [1C] | 09021-92930 | STOPPER | MM514062 |
| 027. | [1C] | 09021-90950 | STOPPER | MM500208 |
| 027. | [1C] | 09021-90930 | STOPPER | MM500015 |
| 027. | [1C] | 09021-90901 | STOPPER | MM500481 |
| 027. | [1C] | 09021-90891 | STOPPER | MM500400 |
| 027. | [1C] | 09021-90881 | STOPPER | MM500399 |
| 027. | [1C] | 09021-90871 | STOPPER | MM500398 |
| 027. | [1C] | 09021-90670 | STOPPER | MM514061 |
| 027. | [1C] | 09021-90660 | STOPPER | MM514060 |
| 027. | [1C] | 09021-90400 | STOPPER | MM514059 |
| 027. | [1C] | 09021-90341 | STOPPER | MM514058 |
| 027. | [1C] | 09021-90330 | STOPPER | MM514057 |
| 027. | [1C] | 09021-90320 | STOPPER | MM514056 |
| 027. | [1C] | 09021-92950 | STOPPER | MM514064 |
Include in #3:
09450-04390
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09450-04390 | MM335738 | PUMP ASSY, INJECTI | |
| MM335738 | MITSUBISHI | PUMP ASSY, INJECTI |
