09450-04360 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935001660
09450-04360 PUMP ASSY, INJECTI
Rating:
42
Buy PUMP ASSY, INJECTI 09450-04360 genuine, new aftermarket engine parts with delivery

Components :

001. PUMP ASSY, INJECTI 09450-04360

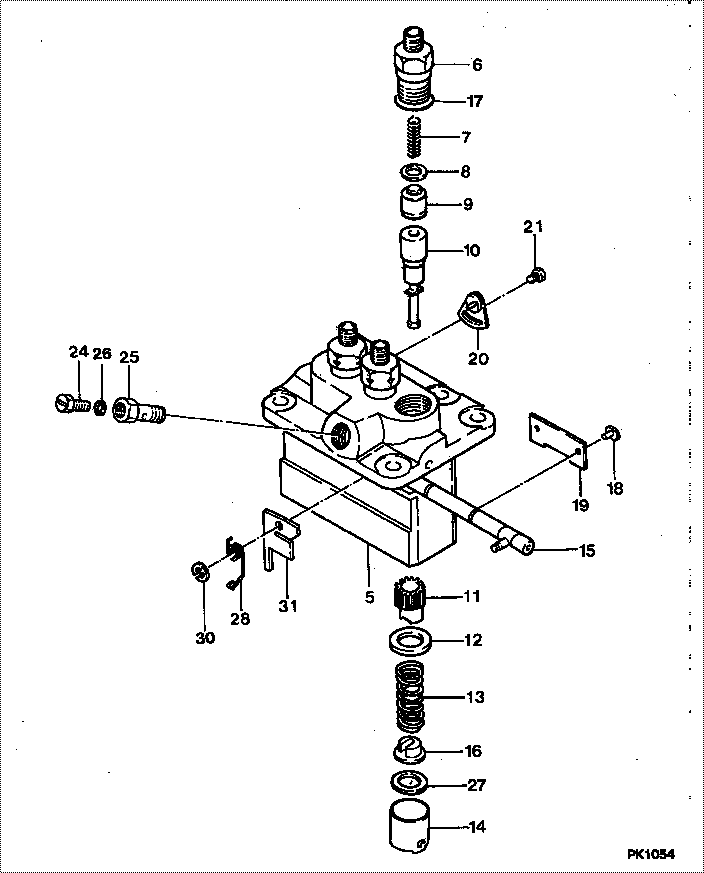

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09450-04360 PUMP ASSY, INJECTI MM436012
005. [01] 09011-02090 HOUSING SUB-ASSY, MM501159
006. [03] 09013-10520 HOLDER, DELIVERY V MM501507
007. [03] 09013-60540 SPRING, DELIVERY V MM501161
008. [03] 09013-70061 GASKET, DELIVERY V P720-16141
008. [03] 09013-70130 GASKET, DELIVERY V MM501856
009. [03] 09014-00410 VALVE SUB-ASSY, IN MM500227
010. [03] 09015-02190 ELEMENT SUB-ASSY, MM501200
011. [03] 09016-10210 SLEEVE, PLUNGER CO MM500229
012. [03] 09016-30082 SEAT, SPRING, UPR MM501098
013. [03] 09016-40170 SPRING, PUMP PLUNG MM500360
014. [03] 09017-00170 TAPPET SUB-ASSY,IN MM500230
014-001. [03] 09017-10021 TAPPET, INJECTION
014-002. [03] 09217-60010 ROLLER, FEED PUMP ME702227
014-003. [03] 09017-60020 PIN, INJECTION PUM P720-1429
015. [01] 09021-00371 RACK ASSY, CONTROL MM501160
016. [03] 09030-10060 SEAT, SPRING, LWR MM500316
017. [03] 90802-20150 O-RING MM500438
018. [03] 09018-30050 PIN, INJECTION PUM MM500231
019. [01] 09046-70040 PLATE MM501162
020. [02] 09007-00012 PLATE ASSY, ADJUST MM501077
020. [02] 09006-80020 PLATE, ADJUSTING MM514109
021. [02] 94904-71980 BOLT, W/WASHER MM501244
021. [02] 94904-80800 BOLT, WASHER HEAD
024. [01] 09024-40180 SCREW, AIR BLEEDER MM501152
025. [01] 09024-50210 SCREW, HOLLOW MM501320
026. [01] 09022-20080 WASHER, FUEL PIPE ME702235
027. [ C] 09031-10310 PLATE, TAPPET ADJU MM501365
027. [ C] 09031-10300 PLATE, TAPPET ADJU MM501364
027. [ C] 09031-10280 PLATE, TAPPET ADJU MM501246
027. [ C] 09031-10170 PLATE, TAPPET ADJU P760-15160
027. [ C] 09031-10160 PLATE, TAPPET ADJU MM500314
027. [ C] 09031-10140 PLATE, TAPPET ADJU MM500312
027. [ C] 09031-10130 PLATE, TAPPET ADJU MM500311
027. [ C] 09031-10120 PLATE, TAPPET ADJU MM500310
027. [ C] 09031-10110 PLATE, TAPPET ADJU MM500309
027. [ C] 09031-10010 PLATE, TAPPET ADJU ME702559
028. [01] 09055-40390 SPRING, DIAPHRAGM MM501459
030. [01] 09089-40020 E-RING ME702639
031. [ C] 09021-94550 STOPPER MM501621
031. [ C] 09021-94560 STOPPER
031. [ C] 09021-94570 STOPPER MM501622
031. [ C] 09021-94580 STOPPER MM501623
031. [ C] 09021-94590 STOPPER
031. [ C] 09021-94600 STOPPER MM501624
031. [ C] 09021-94540 STOPPER MM501620
031. [ C] 09021-94530 STOPPER
031. [ C] 09021-94520 STOPPER MM501619
031. [ C] 09021-94510 STOPPER MM501618
031. [ C] 09021-94500 STOPPER
031. [ C] 09021-94490 STOPPER MM501617
031. [ C] 09021-94480 STOPPER
031. [ C] 09021-94470 STOPPER MM501066
031. [ C] 09021-94610 STOPPER MM501625

Include in #3:

09450-04360 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09450-04360  MM436012  PUMP ASSY, INJECTI
MM436012    MITSUBISHI PUMP ASSY, INJECTI




Information:

Features And Benefits Cat? Remanufactured injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured injectors. Cat Remanufactured injectors provide immediate, off-the-shelf availability at a fraction of the new price. Features
All critical engineering changes and updates included
Worldwide availability through Caterpillar? parts distribution system
Backed by Cat warranty Benefits
Improved reliability and performance
Customer access regardless of location
Consistent support Core Acceptance Core Acceptance Criteria for Caterpillar Remanufactured injectors is simple, visual, and requires no special tools. Full core credit is issued when the core is complete, fully assembled, and has an acceptable part number. Consult your Core Acceptance Guide for complete details.Warranty Please consult the appropriate warranty statement for your area.Core Management Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail.For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website https://reman.cat.com If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537-2928. For assistance with technical questions, call the Peoria Reman Customer Satisfaction Hot Line also toll free at (888) 88-REMAN or use our E-mail address--Reman_Help.
PELJ0271 CATERPILLAR? ?2003 Caterpillar

Have questions with 09450-04360?





09450-04350 PUMP ASSY, INJECTI 09450-04330 09450-04310 09450-04300 09450-04290
01700061 PUMP ASSY, FUEL FE 01705213 PUMP ASSY, INJECTI 01705223 01705242 01705252

Group cross 09450-04360
