09450-03051 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

09450-03051 PUMP ASSY, INJECTI
Rating:
21
Buy PUMP ASSY, INJECTI 09450-03051 genuine, new aftermarket engine parts with delivery

Components :

001. PUMP ASSY, INJECTI 09450-03051

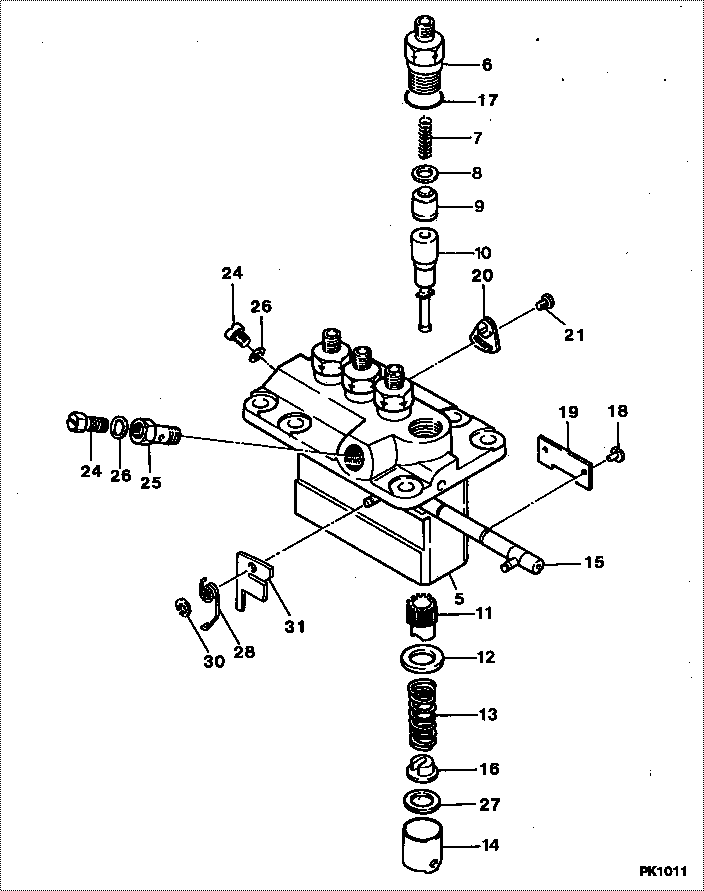

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09450-03051 PUMP ASSY, INJECTI MM432334
005. [01] 09011-01870 HOUSING SUB-ASSY, MM501070
006. [04] 09013-10280 HOLDER, DELIVERY V MM501075
006. [04] 09013-10520 HOLDER, DELIVERY V MM501507
007. [04] 09013-60480 SPRING, DELIVERY V MM501047
008. [04] 09013-70130 GASKET, DELIVERY V MM501856
008. [04] 09013-70061 GASKET, DELIVERY V P720-16141
009. [04] 09014-00410 VALVE SUB-ASSY, IN MM500227
010. [04] 09015-01531 ELEMENT SUB-ASSY, MM501211
011. [04] 09016-10210 SLEEVE, PLUNGER CO MM500229
012. [04] 09016-30082 SEAT, SPRING, UPR MM501098
013. [04] 09016-40170 SPRING, PUMP PLUNG MM500360
014. [04] 09017-00170 TAPPET SUB-ASSY,IN MM500230
014-001. [04] 09017-10022 TAPPET, INJECTION
014-002. [04] 09217-60010 ROLLER, FEED PUMP ME702227
014-003. [04] 09017-60020 PIN, INJECTION PUM P720-1429
015. [01] 09021-00351 RACK ASSY, CONTROL MM501072
016. [04] 09030-10060 SEAT, SPRING, LWR MM500316
017. [04] 90802-20150 O-RING MM500438
018. [04] 09018-30050 PIN, INJECTION PUM MM500231
019. [02] 09046-70030 PLATE MM500232
020. [03] 09007-00012 PLATE ASSY, ADJUST MM501077
020. [03] 09006-80020 PLATE, ADJUSTING MM514109
021. [03] 94904-71980 BOLT, W/WASHER MM501244
021. [03] 94904-80800 BOLT, WASHER HEAD
024. [02] 09024-40180 SCREW, AIR BLEEDER MM501152
025. [01] 94918-00510 SCREW, HOLLOW MM500446
026. [02] 09022-20080 WASHER, FUEL PIPE ME702235
027. [ C] 09031-10010 PLATE, TAPPET ADJU ME702559
027. [ C] 09031-10310 PLATE, TAPPET ADJU MM501365
027. [ C] 09031-10300 PLATE, TAPPET ADJU MM501364
027. [ C] 09031-10280 PLATE, TAPPET ADJU MM501246
027. [ C] 09031-10170 PLATE, TAPPET ADJU P760-15160
027. [ C] 09031-10160 PLATE, TAPPET ADJU MM500314
027. [ C] 09031-10140 PLATE, TAPPET ADJU MM500312
027. [ C] 09031-10130 PLATE, TAPPET ADJU MM500311
027. [ C] 09031-10120 PLATE, TAPPET ADJU MM500310
027. [ C] 09031-10110 PLATE, TAPPET ADJU MM500309
028. [01] 09055-40370 SPRING, DIAPHRAGM MM501430
030. [01] 09089-40020 E-RING ME702639
031. [ C] 09021-94290 STOPPER MM501060
031. [ C] 09021-94300 STOPPER MM501604
031. [ C] 09021-94310 STOPPER MM501605
031. [ C] 09021-94320 STOPPER MM501061
031. [ C] 09021-94330 STOPPER MM501606
031. [ C] 09021-94340 STOPPER
031. [ C] 09021-94280 STOPPER MM501603
031. [ C] 09021-94270 STOPPER MM501602
031. [ C] 09021-94260 STOPPER MM501059
031. [ C] 09021-94250 STOPPER MM501601
031. [ C] 09021-94240 STOPPER MM501600
031. [ C] 09021-94230 STOPPER MM501058
031. [ C] 09021-94220 STOPPER MM501599
031. [ C] 09021-94210 STOPPER MM501598
031. [ C] 09021-94350 STOPPER MM501062

Include in #3:

09450-03051 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09450-03051  MM432334  PUMP ASSY, INJECTI




Information:

Introduction
The valve housing may crack causing certain remanufactured fuel injectors to malfunction.Problem
Some remanufactured valve bodies on fuel injectors have been cracking under high pressure. This crack in the valve body can cause fuel to get into the engine oil.Solution
All 10R-0957 Injector Gp Fuel with serial number range 848368 to 850132 should be removed from the parts stock. 10R-0960 Injector Gp Fuel , 10R-0961 Injector Gp Fuel , 10R-0963 Injector Gp Fuel , and 10R-1268 Injector Gp Fuel with a serial number range from 188029 to 188914 should be removed from the parts stock. The above listed fuel injectors should be removed from the parts stock and the injectors should be held pending further instructions.

Have questions with 09450-03051?





09450-03042 PUMP ASSY, INJECTI 09450-03030 09450-03020 09450-03010 09450-03000
01700061 PUMP ASSY, FUEL FE 01705213 PUMP ASSY, INJECTI 01705223 01705242 01705252

Group cross 09450-03051
