09450-02170 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935001660
09450-02170 PUMP ASSY, INJECTI
Rating:
11
Buy PUMP ASSY, INJECTI 09450-02170 genuine, new aftermarket engine parts with delivery

Components :

001. PUMP ASSY, INJECTI 09450-02170

Scheme ###:

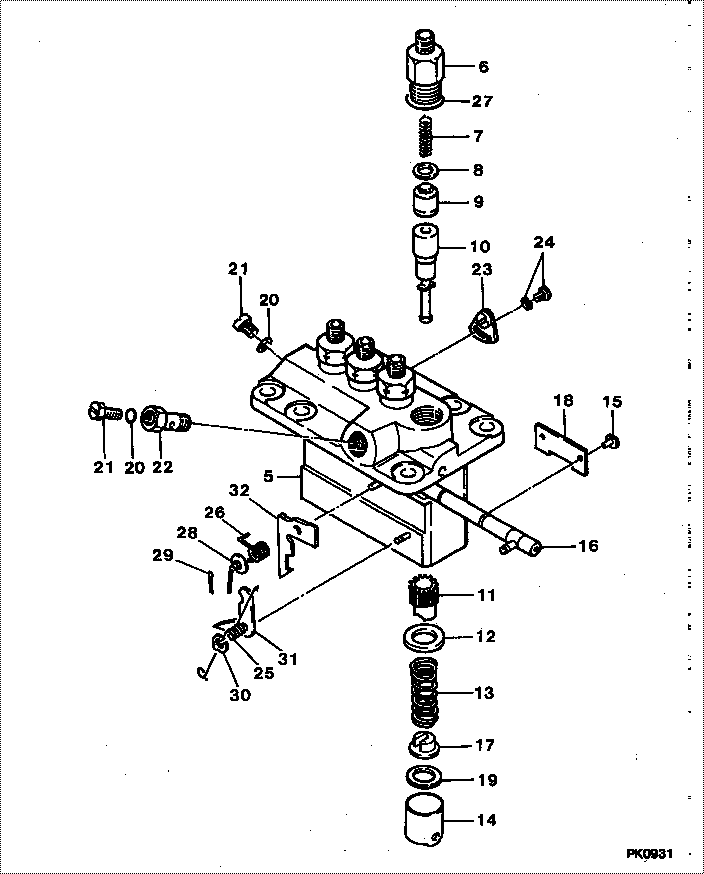

PUMP ASSY, INJECTI
000. [01] 09450-02170 PUMP ASSY, INJECTI MM406938
005. [01] 09011-02420 HOUSING SUB-ASSY, MM501253
006. [04] 09013-10280 HOLDER, DELIVERY V MM501075
006. [04] 09013-10520 HOLDER, DELIVERY V MM501507
007. [04] 09013-60480 SPRING, DELIVERY V MM501047
008. [04] 09013-70061 GASKET, DELIVERY V P720-16141
008. [04] 09013-70130 GASKET, DELIVERY V MM501856
009. [04] 09014-00800 VALVE SUB-ASSY, IN MM501076
010. [04] 09015-01840 ELEMENT SUB-ASSY, MM501071
011. [04] 09016-10210 SLEEVE, PLUNGER CO MM500229
012. [04] 09016-30082 SEAT, SPRING, UPR MM501098
013. [04] 09016-40170 SPRING, PUMP PLUNG MM500360
014. [04] 09017-00170 TAPPET SUB-ASSY,IN MM500230
014-001. [04] 09017-10022 TAPPET, INJECTION
014-002. [04] 09217-60010 ROLLER, FEED PUMP ME702227
014-003. [04] 09017-60020 PIN, INJECTION PUM P720-1429
015. [04] 09018-30050 PIN, INJECTION PUM MM500231
016. [01] 09021-00440 RACK ASSY, CONTROL MM501255
017. [04] 09030-10060 SEAT, SPRING, LWR MM500316
018. [02] 09046-70030 PLATE MM500232
019. [ C] 09031-10310 PLATE, TAPPET ADJU MM501365
019. [ C] 09031-10300 PLATE, TAPPET ADJU MM501364
019. [ C] 09031-10280 PLATE, TAPPET ADJU MM501246
019. [ C] 09031-10170 PLATE, TAPPET ADJU P760-15160
019. [ C] 09031-10160 PLATE, TAPPET ADJU MM500314
019. [ C] 09031-10140 PLATE, TAPPET ADJU MM500312
019. [ C] 09031-10130 PLATE, TAPPET ADJU MM500311
019. [ C] 09031-10120 PLATE, TAPPET ADJU MM500310
019. [ C] 09031-10110 PLATE, TAPPET ADJU MM500309
019. [ C] 09031-10010 PLATE, TAPPET ADJU ME702559
020. [02] 09022-20080 WASHER, FUEL PIPE ME702235
021. [02] 09024-40150 SCREW, AIR BLEEDER
022. [01] 94918-00510 SCREW, HOLLOW MM500446
023. [03] 09007-00012 PLATE ASSY, ADJUST MM501077
023. [03] 09006-80020 PLATE, ADJUSTING MM514109
024. [03] 94904-71980 BOLT, W/WASHER MM501244
024. [03] 94904-80800 BOLT, WASHER HEAD
025. [01] 09055-40300 SPRING, DIAPHRAGM MM501256
026. [01] 09055-40160 SPRING, DIAPHRAGM MM501073
027. [04] 90802-20150 O-RING MM500438
028. [01] 94901-13010 WASHER, STEEL PLAT MM500928
029. [01] 90400-16101 PIN, SPLIT MM500431
030. [01] 09089-40010 E-RING ME702112
031. [ C] 09021-92540 STOPPER MM501275
031. [ C] 09021-92530 STOPPER MM501260
031. [ C] 09021-92520 STOPPER MM501259
031. [ C] 09021-92510 STOPPER MM501258
031. [ C] 09021-92500 STOPPER MM501257
032. [ C] 09021-92810 STOPPER
032. [ C] 09021-92800 STOPPER
032. [ C] 09021-92790 STOPPER
032. [ C] 09021-92780 STOPPER
032. [ C] 09021-92770 STOPPER
032. [ C] 09021-92760 STOPPER
032. [ C] 09021-92750 STOPPER
032. [ C] 09021-92740 STOPPER
032. [ C] 09021-92730 STOPPER
032. [ C] 09021-92720 STOPPER
032. [ C] 09021-92710 STOPPER
032. [ C] 09021-92700 STOPPER
032. [ C] 09021-92690 STOPPER
032. [ C] 09021-92820 STOPPER

Include in #3:

09450-02170 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09450-02170  MM406938  PUMP ASSY, INJECTI
MM406938    MITSUBISHI PUMP ASSY, INJECTI




Information:

1. Remove oil supply tube (1) and suction bell and tube (2). 2. Remove bolts (3) that hold the oil pump to the cylinder block and remove oil pump (4).3. To install, put oil pump (4) in position on the cylinder block. Install the bolts that hold the oil pump to the cylinder block.4. Put clean engine oil on the O-ring seals of the tubes.5. Install oil supply tube (1), suction bell and tube (2).End By:a. install oil panDisassemble Oil Pump
Start By:a. remove oil pump 1. Remove the bolt and washer that hold the gear on the shaft.2. Use Tool (A) and remove drive gear (1) from the shaft. Remove the key from the shaft. 3. Remove retainer (3) for the bypass valve. Remove the spring and the bypass valve.4. Remove cover (2) from the pump body. 5. Use Tool (B) and remove the bearings from the cover. 6. Remove gears (5) from pump body (4).7. Use Tool (B) and remove the bearings from pump body (4).Assemble Oil Pump
1. Use Tool (B) to install the bearings in the pump body. Install the bearings so the joint in the bearings is 30 15 degrees from the center line of the oil pump outlet passage (2). 2. Install idler gear and drive gear (5) in the oil pump body (4). Put clean engine oil on the bearings and the gears. 3. Use Tool (A) and install the bearings in cover (2). Install the bearings so the joint of the bearing bores toward oil pump outlet passage (6).4. Install bypass valve (7), spring (8) and the retainer.5. Install the key on the shaft. 6. Install gear (1) on the shaft. Install the washer and bolt that hold the gear on the shaft. Be sure the pump turns freely after assembly.End By:a. install oil pump
