09450-02020 PUMP ASSY, INJECTI Denso Cross

Information pump assy, injecti

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 09450-02020 genuine, new aftermarket engine parts with delivery

Components :

001.	PUMP ASSY, INJECTI	09450-02020

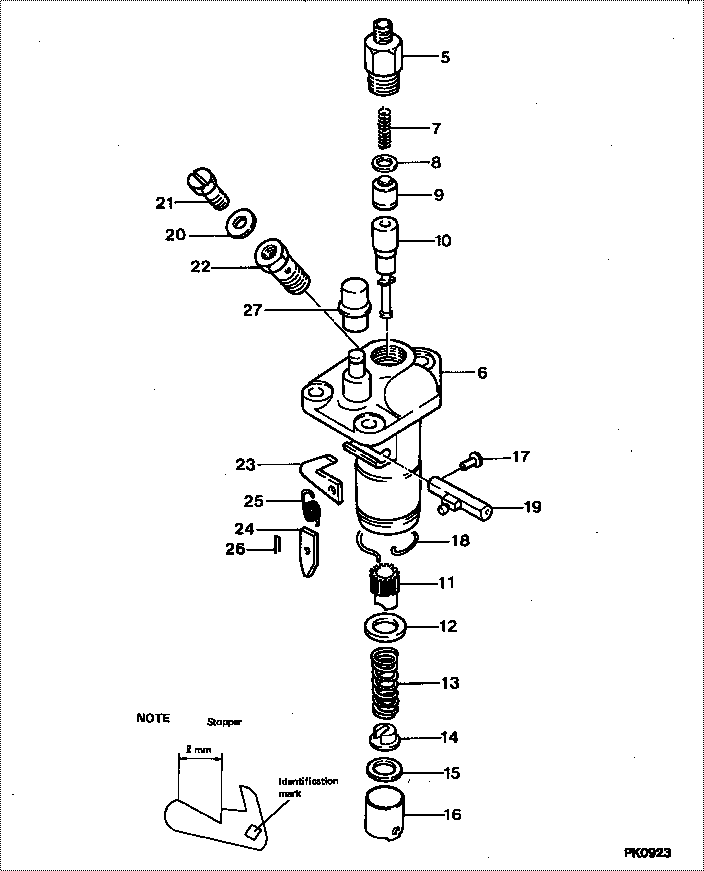

Scheme ###:

000.	[01]	09450-02020	PUMP ASSY, INJECTI	MM300459
005.	[01]	09013-10010	HOLDER, DELIVERY V	ME022081
006.	[01]	19011-01860	HOUSING KIT, INJEC	MM501042
007.	[01]	09013-60080	SPRING, DELIVERY V	MM500331
008.	[01]	09013-70010	GASKET, DELIVERY V	ME022084
009.	[01]	09014-00500	VALVE SUB-ASSY, IN	MM500010
010.	[01]	09015-01521	ELEMENT SUB-ASSY,	MM500886
011.	[01]	09016-10200	SLEEVE, PLUNGER CO	MM500878
012.	[01]	09016-30191	SEAT, SPRING, UPR	ME736080
012.	[01]	09016-30010	SEAT, SPRING, UPR	ME702061
013.	[01]	09016-40010	SPRING, PUMP PLUNG	ME702062
014.	[01]	09016-50020	SEAT, SPRING, LWR	MM500879
015.	[ C]	09031-10270	PLATE, TAPPET ADJU	MM500978
015.	[ C]	09031-10260	PLATE, TAPPET ADJU	MM500977
015.	[ C]	09031-10250	PLATE, TAPPET ADJU	MM500976
015.	[ C]	09031-10240	PLATE, TAPPET ADJU	MM500975
015.	[ C]	09031-10230	PLATE, TAPPET ADJU	MM500974
015.	[ C]	09031-10220	PLATE, TAPPET ADJU	MM500973
015.	[ C]	09031-10210	PLATE, TAPPET ADJU	MM500972
015.	[ C]	09031-10200	PLATE, TAPPET ADJU	MM500971
015.	[ C]	09031-10190	PLATE, TAPPET ADJU	MM500970
016.	[01]	09017-00160	TAPPET SUB-ASSY,IN	MM500880
017.	[01]	09018-30060	PIN, INJECTION PUM	MM500881
018.	[01]	09018-40060	RING, CLAMP	MM500371
019.	[01]	09021-00121	RACK ASSY, CONTROL	MM500374
020.	[01]	09022-20080	WASHER, FUEL PIPE	ME702235
021.	[01]	09024-40190	SCREW, AIR BLEEDER	MM501359
021.	[01]	09024-40180	SCREW, AIR BLEEDER	MM501152
022.	[01]	09024-50012	SCREW, HOLLOW	MM500403
023.	[ C]	09021-90250	STOPPER	MM500054
023.	[ C]	09021-90310	STOPPER	MM501307
023.	[ C]	09021-90300	STOPPER	MM501306
023.	[ C]	09021-90290	STOPPER	MM501305
023.	[ C]	09021-90280	STOPPER	MM500057
023.	[ C]	09021-90270	STOPPER	MM500056
023.	[ C]	09021-90260	STOPPER	MM500055
024.	[01]	09022-30010	PLATE, PUSH	MM500401
025.	[01]	09055-40040	SPRING, DIAPHRAGM	MM500405
026.	[01]	90400-16101	PIN, SPLIT	MM500431
027.	[01]	09007-80013	COVER	MM500365

Include in #3:

09450-02020 as PUMP ASSY, INJECTI

Cross reference number

Part num	Firm num	Firm	Name
09450-02020	MM300459		PUMP ASSY, INJECTI
MM300459		MITSUBISHI	PUMP ASSY, INJECTI

Information:

3. Remove turbo supply and drain lines (1). 4. Remove bolts (3) that holds bonnet (2) to engine block and torque converter oil cooler.5. Remove bolts (5), (6) and (7) (not shown) and remove cooler. Install in the reverse order. Fill cooling system with coolant. See the Operation & Maintenance Manual for the proper procedure and levels. Check the engine oil level. See the Operation & Maintenance Manual for the proper procedure and levels.End By:a. install oil filters and baseDisassemble Engine Oil Cooler & Bypass Valves
Start By:a. remove engine oil cooler and bypass valves 1. Remove bolts (1) to remove bypass valve assembly (3) from oil cooler (2). 2. Remove adapter (6) from the engine oil cooler. Remove O-ring seals (5) from the adapter.3. Remove bolts (4) to remove cover (7). Remove valves (9) and springs (8) from water line.4. Remove tube (10) from water lines. Remove O-ring seals (11) from the tube. 5. Clean the engine oil cooler tubes with a 3.2 mm (.125 in) diameter rod as shown.Assemble Engine Oil Cooler & Bypass Valves
1. Install new O-ring seals (1) on adapter (2). Install adapter (2) in the engine oil cooler.2. Install new O-ring seals (7) on tube (6). Install tube in water lines.3. Install valves (5) and springs (4) in the water line. Install cover (3) with the bolts (9) that hold it. 4. Install the bypass valve assembly on the engine oil cooler with the bolts (8) that hold it. Install the cover and bolts (9).End By:a. install engine oil cooler and bypass valves
