09450-01750 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935001660
09450-01750 PUMP ASSY, INJECTI
Rating:
2
Buy PUMP ASSY, INJECTI 09450-01750 genuine, new aftermarket engine parts with delivery

Components :

001. PUMP ASSY, INJECTI 09450-01750

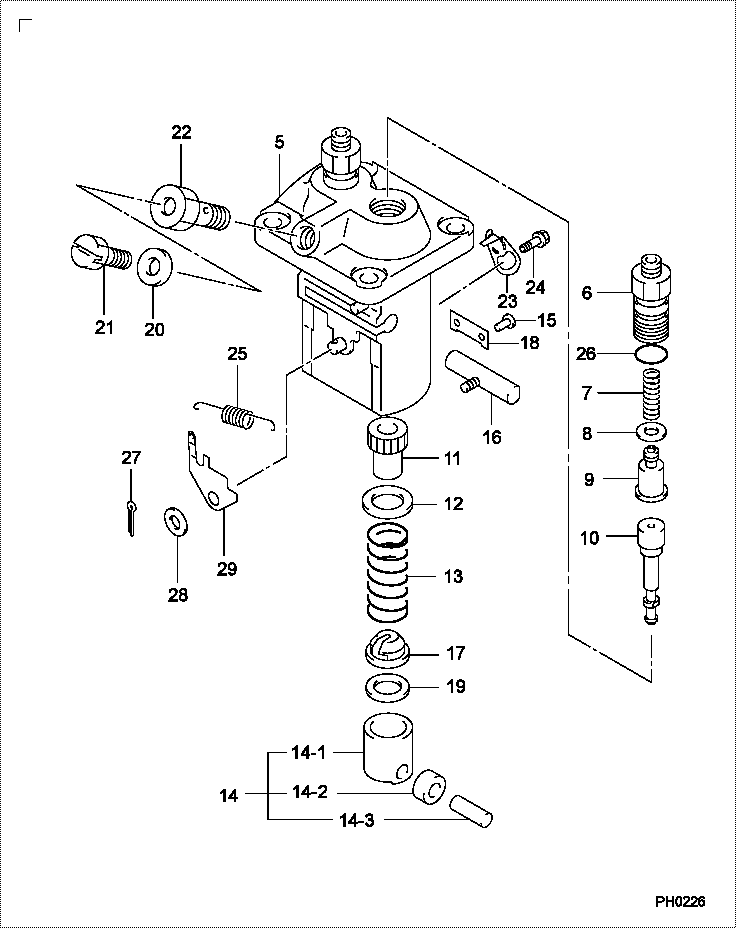

Scheme ###:

000. [01] 09450-01750 PUMP ASSY, INJECTI
005. [01] 09011-02720 HOUSING SUB-ASSY,
006. [02] 09013-10520 HOLDER, DELIVERY V
007. [02] 09013-60480 SPRING, DELIVERY V
008. [02] 09013-70130 GASKET, DELIVERY V
009. [02] 09014-00410 VALVE SUB-ASSY, IN 09014-00410
010. [02] 09015-02001 ELEMENT SUB-ASSY,
011. [02] 09016-10210 SLEEVE, PLUNGER CO
012. [02] 09016-30082 SEAT, SPRING, UPR MM501098
013. [02] 09016-40170 SPRING, PUMP PLUNG
014. [02] 09017-00170 TAPPET SUB-ASSY,IN EZ01775027
014-001. [02] 09017-10022 TAPPET, INJECTION
014-002. [02] 09017-60020 PIN, INJECTION PUM
014-003. [02] 09217-60010 ROLLER, FEED PUMP 09217-60010
015. [02] 09018-30050 PIN, INJECTION PUM
016. [01] 09021-00281 RACK ASSY, CONTROL
017. [02] 09030-10060 SEAT, SPRING, LWR EZ0177514
018. [01] 09046-70030 PLATE
019. [2C] 09031-10310 PLATE, TAPPET ADJU
019. [2C] 09031-10300 PLATE, TAPPET ADJU
019. [2C] 09031-10280 PLATE, TAPPET ADJU
019. [2C] 09031-10170 PLATE, TAPPET ADJU FR51530028
019. [2C] 09031-10160 PLATE, TAPPET ADJU FR51530027
019. [2C] 09031-10140 PLATE, TAPPET ADJU 09031-10140
019. [2C] 09031-10130 PLATE, TAPPET ADJU 09031-10130
019. [2C] 09031-10120 PLATE, TAPPET ADJU 09031-10120
019. [2C] 09031-10110 PLATE, TAPPET ADJU 09031-10110
019. [2C] 09031-10010 PLATE, TAPPET ADJU 09031-10010
020. [01] 09022-20080 WASHER, FUEL PIPE MM500114
021. [01] 09024-40180 SCREW, AIR BLEEDER MM501152
022. [01] 09024-50210 SCREW, HOLLOW
023. [01] 09006-80020 PLATE, ADJUSTING
024. [01] 94904-80800 BOLT, WASHER HEAD MM514195
025. [01] 09055-40270 SPRING, DIAPHRAGM
026. [02] 90802-20150 O-RING
027. [01] 90400-16101 PIN, SPLIT FR51530045
028. [1C] 94901-34040 WASHER, PLATE, SK 94901-34040
028. [1C] 94901-34030 WASHER, PLATE, SK 94901-34030
028. [1C] 94901-34020 WASHER, PLATE, SK 94901-34020
028. [1C] 94901-33880 WASHER, PLATE, SK 94901-33880
029. [1C] 09021-93320 STOPPER
029. [1C] 09021-93310 STOPPER
029. [1C] 09021-93300 STOPPER
029. [1C] 09021-93290 STOPPER
029. [1C] 09021-93280 STOPPER
029. [1C] 09021-93270 STOPPER
029. [1C] 09021-93260 STOPPER
029. [1C] 09021-93250 STOPPER
029. [1C] 09021-93240 STOPPER
029. [1C] 09021-93230 STOPPER
029. [1C] 09021-93220 STOPPER
029. [1C] 09021-93210 STOPPER
029. [1C] 09021-93200 STOPPER
029. [1C] 09021-93190 STOPPER
029. [1C] 09021-93330 STOPPER

Include in #3:

09450-01750 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09450-01750    PUMP ASSY, INJECTI




Information:


Do not let the tops of the fuel nozzles turn when the fuel lines are loosened. The nozzles will be damaged if the top of the nozzles turns in the body.
1. Loosen the fuel injection line nut at the nozzle end with tool (A) and a 7/8 5P0328 ( in) Crow Foot Wrench.2. Loosen the fuel line nut at the fuel injection line adapter with Tool (B). Remove inner fuel injection lines (1). Install caps and plugs on all fuel line openings to keep dirt out of the fuel system.
Typical Example If necessary, use Tool (D) to turn the engine so the valves do not make contact with the pistons when the valves are opened with Tool (C) to remove the push rods.3. Put compression on the valve springs with Tool (C), and remove push rods (2). Put identification marks on the push rods as to their location in the engine.4. Push the push rod end of the rocker arms down. 5. Remove the intake valve lifter with Tool (E) as follows:a. Install 5P2685 Nut (3) and 5P6601 Collet (4) on 5P2408 Outer Handle Assembly (5).b. Install 5P6599 Inner Handle Assembly (6) in 5P2408 Outer Handle Assembly (5).
Typical Examplec. Install Tool (E) in the intake valve lifter. Hold the 5P2408 Outer Handle Assembly and tighten the 5P6599 Inner Handle Assembly until the 5P6601 Collet is tight against the inside of the intake valve lifter.
Typical Exampled. Remove intake valve lifters (7) from the cylinder block with Tool (E). Put identification marks on the lifters as to their location in the engine.
Typical Example6. Remove the exhaust valve lifters with Tool (E) as follows:a. Install 5P2685 Nut (3) and 5P6601 Collet (4) on 5P2408 Outer Handle Assembly (5). The opening in the cylinder head assembly for the intake valve lifter is larger than the opening in the exhaust valve lifter side. The tooling and each valve lifter must be installed and removed from the intake valve lifter side.b. Install the outer handle assembly in the intake valve lifter side of the cylinder head assembly. Slide the flat area of 5P2408 Outer Handle Assembly (5) through the head casting and install the 5P6601 Collet in the exhaust valve lifters.
Typical Examplec. Install 5P6599 Inner Handle Assembly (6) in 5P2408 Outer Handle Assembly (5). Hold the 5P2408 Handle Assembly and tighten the 5P6599 Handle Assembly until the 5P6601 Collet is tight against the inside of the exhaust valve lifter.d. Pull the exhaust valve lifter up until the spring on the exhaust valve lifter is free from the cylinder block.e. Remove the 5P6599 Inner Handle Assembly. Slide the 5P2408 Outer Handle Assembly through the head casting and remove it from the intake valve lifter side of the cylinder head.
Typical Examplef. Use a magnet and remove exhaust valve lifters (8) from the intake valve lifter side of the cylinder head assembly. Put identification makes on the lifters as to their location in the engine.7. Remove the guide springs from the lifters.Install Valve Lifters
Steps 1 and 2
