09410-00430 BODY ASSY, SUPPLY Denso Cross




Information body assy, supply

BODY ASSY, SUPPLY HR
  • #..DMCF DENSO PRODUCTION CW094100-043#
09410-00430 BODY ASSY, SUPPLY
Rating:
47
Buy BODY ASSY, SUPPLY 09410-00430 genuine, new aftermarket engine parts with delivery

Scheme ###:

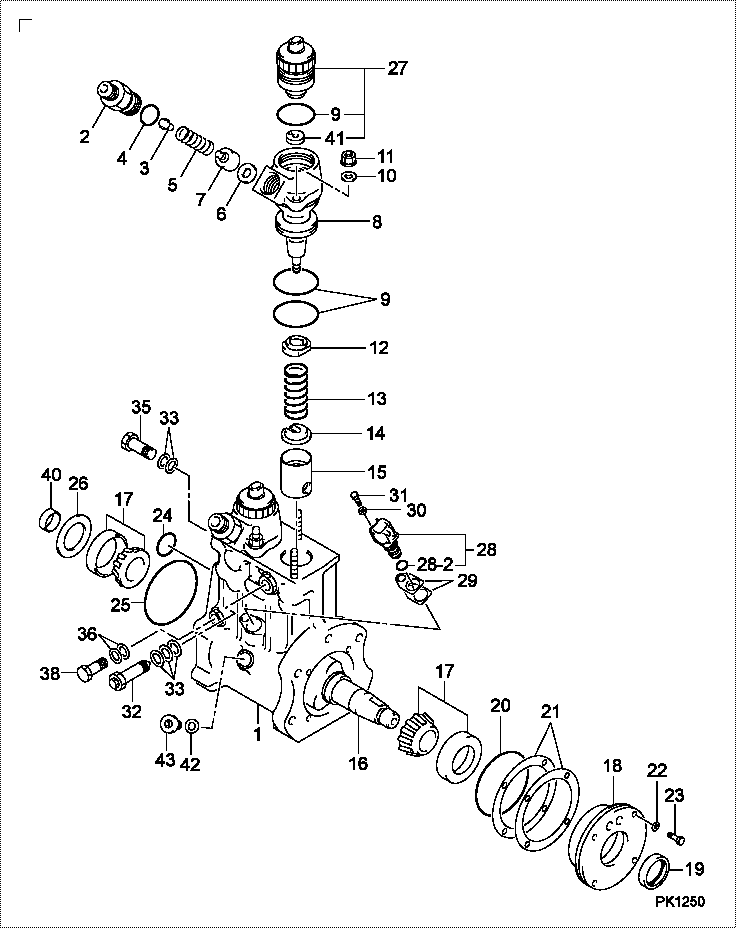

BODY ASSY, SUPPLY
000. [01] 09410-00430 BODY ASSY, SUPPLY
000. [01] 09410-00430 BODY ASSY, SUPPLY CW
000. [01] 09410-00430 BODY ASSY, SUPPLY
000. [01] 09410-00430 BODY ASSY, SUPPLY CW
001. [01] 09411-00280 HOUSING SUB-ASSY, CW
001. [01] 09411-00280 HOUSING SUB-ASSY, CW
001. [01] 09411-00280 HOUSING SUB-ASSY,
001. [01] 09411-00280 HOUSING SUB-ASSY,
002. [02] 09413-10020 HOLDER, DELIVERY V CW
002. [02] 09413-10020 HOLDER, DELIVERY V
002. [02] 09413-10020 HOLDER, DELIVERY V CW
002. [02] 09413-10020 HOLDER, DELIVERY V
003. [02] 09413-30020 STOPPER, DELIVERY CW
003. [02] 09413-30020 STOPPER, DELIVERY
003. [02] 09413-30020 STOPPER, DELIVERY
003. [02] 09413-30020 STOPPER, DELIVERY CW
004. [02] 09408-60090 O-RING, SUPPLY PUM
004. [02] 09408-60090 O-RING, SUPPLY PUM
005. [02] 09013-61252 SPRING, DELIVERY V
005. [02] 09013-61252 SPRING, DELIVERY V
006. [02] 09413-70010 GASKET, DELIVERY V
006. [02] 09413-70010 GASKET, DELIVERY V
007. [02] 09414-00030 VALVE SUB-ASSY, SU
007. [02] 09414-00040 VALVE SUB-ASSY, SU
007. [02] 09414-00040 VALVE SUB-ASSY, SU
007. [02] 09414-00030 VALVE SUB-ASSY, SU
008. [02] 09415-00250 ELEMENT SUB-ASSY, CW
008. [02] 09415-00330 ELEMENT SUB-ASSY, CW
008. [02] 09415-00330 ELEMENT SUB-ASSY, CW
008. [02] 09415-00270 ELEMENT SUB-ASSY,
008. [02] 09415-00270 ELEMENT SUB-ASSY,
008. [02] 09415-00250 ELEMENT SUB-ASSY, CW
009. [06] 09408-60100 O-RING, SUPPLY PUM
009. [06] 09408-60100 O-RING, SUPPLY PUM
010. [04] 94901-35880 WASHER, PLATE, SK
010. [04] 94901-35880 WASHER, PLATE, SK
011. [04] 92156-08081 NUT, FLANGE
011. [04] 92156-08081 NUT, FLANGE
012. [02] 09416-20040 SEAT, SPRING, UPR
012. [02] 09416-20040 SEAT, SPRING, UPR
013. [02] 09416-40010 SPRING, PUMP PLUNG
013. [02] 09416-40010 SPRING, PUMP PLUNG
014. [02] 09416-50021 SEAT, SPRING, LWR
014. [02] 09416-50021 SEAT, SPRING, LWR
015. [02] 09417-00100 TAPPET SUB-ASSY, S
015. [02] 09417-00100 TAPPET SUB-ASSY, S
016. [01] 09419-10171 CAMSHAFT, SUPPLY P
016. [01] 09419-10580 CAMSHAFT, SUPPLY P CW
016. [01] 09419-10171 CAMSHAFT, SUPPLY P
016. [01] 09419-10171 CAMSHAFT, SUPPLY P CW
017. [02] 94910-10230 BEARING, ROLLER
017. [02] 94910-10230 BEARING, ROLLER CW
017. [02] 94910-10230 BEARING, ROLLER
017. [02] 94910-10260 BEARING, ROLLER CW
018. [01] 09410-40190 COVER, BEARING CW
018. [01] 09410-40190 COVER, BEARING
018. [01] 09410-40190 COVER, BEARING CW
018. [01] 09410-40190 COVER, BEARING
019. [01] 94915-03030 SEAL, OIL
019. [01] 94915-03030 SEAL, OIL
020. [01] 09408-60120 O-RING, SUPPLY PUM
020. [01] 09408-60120 O-RING, SUPPLY PUM
021. [2C] 09409-50150 PLATE, BEARING COV
021. [2C] 09409-50140 PLATE, BEARING COV
021. [2C] 09409-50130 PLATE, BEARING COV
021. [2C] 09409-50100 PLATE, BEARING COV
021. [2C] 09409-50160 PLATE, BEARING COV
021. [2C] 09409-50150 PLATE, BEARING COV
021. [2C] 09409-50100 PLATE, BEARING COV
021. [2C] 09409-50130 PLATE, BEARING COV
021. [2C] 09409-50140 PLATE, BEARING COV
021. [2C] 09409-50160 PLATE, BEARING COV
022. [04] 09409-20010 WASHER, SEAL
022. [04] 09409-20010 WASHER, SEAL
023. [04] 94904-43320 BOLT
023. [04] 94904-43320 BOLT
024. [01] 09408-60110 O-RING, SUPPLY PUM
024. [01] 09408-60110 O-RING, SUPPLY PUM
025. [01] 09408-60130 O-RING, SUPPLY PUM
025. [01] 09408-60130 O-RING, SUPPLY PUM
026. [1C] 09409-30080 WASHER, SUPPLY PUM
026. [1C] 09409-30080 WASHER, SUPPLY PUM
026. [1C] 09409-30060 WASHER, SUPPLY PUM
026. [1C] 09409-30050 WASHER, SUPPLY PUM
026. [1C] 09409-30070 WASHER, SUPPLY PUM
026. [1C] 09409-30050 WASHER, SUPPLY PUM
026. [1C] 09409-30070 WASHER, SUPPLY PUM
026. [1C] 09409-30060 WASHER, SUPPLY PUM
027. [02] 09404-00330 OVERHAUL KIT, SUPP
027. [02] 09404-00150 OVERHAUL KIT, SUPP
027. [02] 09404-00330 OVERHAUL KIT, SUPP
027. [02] 09404-00150 OVERHAUL KIT, SUPP
027. [02] 09404-00430 OVERHAUL KIT, SUPP
028. [01] 94997-91300 SENSOR ASSY, GEAR
028. [01] 94997-91300 SENSOR ASSY, GEAR
028-002. [01] 94914-06310 O-RING
028-002. [01] 94914-06310 O-RING
029. [2C] 09409-60070 PLATE, SENSOR SHIM
029. [2C] 09409-60050 PLATE, SENSOR SHIM
029. [2C] 09409-60060 PLATE, SENSOR SHIM
029. [2C] 09409-60080 PLATE, SENSOR SHIM
029. [2C] 09409-60070 PLATE, SENSOR SHIM
029. [2C] 09409-60050 PLATE, SENSOR SHIM
029. [2C] 09409-60060 PLATE, SENSOR SHIM
029. [2C] 09409-60080 PLATE, SENSOR SHIM
030. [01] 90200-06081 WASHER, PLATE
030. [01] 90200-06081 WASHER, PLATE
031. [01] 90107-06161 BOLT, HEXAGON
031. [01] 90107-06161 BOLT, HEXAGON
032. [01] 09031-00280 VALVE ASSY, OVERFL
032. [01] 09031-00280 VALVE ASSY, OVERFL CW
032. [01] 09031-00280 VALVE ASSY, OVERFL CW
032. [01] 09031-00280 VALVE ASSY, OVERFL
033. [04] 09022-20070 WASHER, FUEL PIPE
033. [04] 09022-20070 WASHER, FUEL PIPE
035. [01] 94918-00310 SCREW, HOLLOW
035. [01] 94918-00310 SCREW, HOLLOW
036. [01] 09022-20120 WASHER, FUEL PIPE
036. [01] 09022-20120 WASHER, FUEL PIPE
038. [01] 94918-00060 SCREW, HOLLOW
038. [01] 94918-00060 SCREW, HOLLOW
040. [01] 09020-70100 RING, WEAR
040. [01] 09020-70100 RING, WEAR
041. [02] 09533-10020 STOPPER, W/GASKET
041. [02] 09533-10020 STOPPER, W/GASKET
042. [01] 94901-80350 WASHER, COPPER PLA
042. [01] 94901-80350 WASHER, COPPER PLA
043. [01] 09031-70480 PLUG, SCREW
043. [01] 09031-70480 PLUG, SCREW CW
043. [01] 09031-70480 PLUG, SCREW
043. [01] 09031-70480 PLUG, SCREW CW

Include in #3:

09400-00540 as BODY ASSY, SUPPLY
09400-00540
09400-00540
09400-00540
09410-00430
09410-00430
09410-00430
09410-00430

Cross reference number



Part num Firm num Firm Name
09410-00430    BODY ASSY, SUPPLY
CW    FAW BODY ASSY, SUPPLY
