09350-07462 HOLDER & NOZZLE SE Denso Cross




Information holder & nozzle se

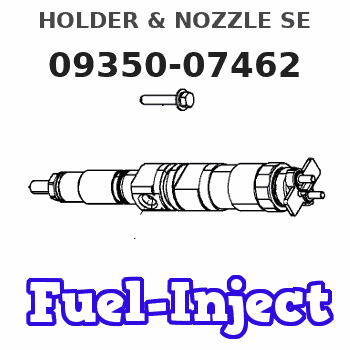

09350-07462 HOLDER & NOZZLE SE
Rating:
21
Buy HOLDER & NOZZLE SE 09350-07462 genuine, new aftermarket engine parts with delivery

Components :

001. HOLDER & NOZZLE SE 09350-07462
001. HOLDER & NOZZLE SE 09350-07462

Scheme ###:

000. [01] 09350-07461 HOLDER & NOZZLE SE 1C050-53004
000. [01] 09350-07462 HOLDER & NOZZLE SE 1C050-53005
001. [01] 09310-07462 HOLDER ASSY, NOZZL 1C050-53012
001-001. [01] 09311-07462 BODY SUB-ASSY, NOZ
001-002. [01] 09312-10600 PIN, NOZZLE HOLDER
001-003. [01] 09312-70410 SPRING, NOZZLE HOL
001-004. [01] 09312-70520 SPRING, NOZZLE HOL
001-005. [01] 09312-80110 SEAT, SPRING
001-006. [1C] 09312-80630 SEAT, SPRING
001-006. [1C] 09312-80650 SEAT, SPRING
001-006. [1C] 09312-80670 SEAT, SPRING
001-006. [1C] 09312-80690 SEAT, SPRING
001-006. [1C] 09312-80710 SEAT, SPRING
001-006. [1C] 09312-80730 SEAT, SPRING
001-006. [1C] 09312-80750 SEAT, SPRING
001-006. [1C] 09312-80770 SEAT, SPRING
001-006. [1C] 09312-80790 SEAT, SPRING
001-006. [1C] 09312-80810 SEAT, SPRING
001-006. [1C] 09312-80610 SEAT, SPRING
001-006. [1C] 09312-80590 SEAT, SPRING
001-006. [1C] 09312-80410 SEAT, SPRING
001-006. [1C] 09312-80430 SEAT, SPRING
001-006. [1C] 09312-80450 SEAT, SPRING
001-006. [1C] 09312-80470 SEAT, SPRING
001-006. [1C] 09312-80490 SEAT, SPRING
001-006. [1C] 09312-80510 SEAT, SPRING
001-006. [1C] 09312-80530 SEAT, SPRING
001-006. [1C] 09312-80550 SEAT, SPRING
001-006. [1C] 09312-80570 SEAT, SPRING
001-006. [1C] 09312-80390 SEAT, SPRING
001-007. [01] 09316-41660 NUT, NOZZLE RETAIN
001-008. [1C] 09317-52430 WASHER
001-008. [1C] 09317-52520 WASHER
001-008. [1C] 09317-52510 WASHER
001-008. [1C] 09317-52500 WASHER
001-008. [1C] 09317-52490 WASHER
001-008. [1C] 09317-52480 WASHER
001-008. [1C] 09317-52470 WASHER
001-008. [1C] 09317-52460 WASHER
001-008. [1C] 09317-52450 WASHER
001-008. [1C] 09317-52440 WASHER
001-008. [1C] 09317-52530 WASHER
001-008. [1C] 09317-52560 WASHER
001-008. [1C] 09317-52660 WASHER
001-008. [1C] 09317-52650 WASHER
001-008. [1C] 09317-52640 WASHER
001-008. [1C] 09317-52630 WASHER
001-008. [1C] 09317-52620 WASHER
001-008. [1C] 09317-52610 WASHER
001-008. [1C] 09317-52600 WASHER
001-008. [1C] 09317-52590 WASHER
001-008. [1C] 09317-52580 WASHER
001-008. [1C] 09317-52570 WASHER
001-008. [1C] 09317-52420 WASHER
001-008. [1C] 09317-52410 WASHER
001-008. [1C] 09317-52400 WASHER
001-008. [1C] 09317-52270 WASHER
001-008. [1C] 09317-52260 WASHER
001-008. [1C] 09317-52250 WASHER
001-008. [1C] 09317-52240 WASHER
001-008. [1C] 09317-52230 WASHER
001-008. [1C] 09317-52220 WASHER
001-008. [1C] 09317-52210 WASHER
001-008. [1C] 09317-52200 WASHER
001-008. [1C] 09317-52190 WASHER
001-008. [1C] 09317-52180 WASHER
001-008. [1C] 09317-52280 WASHER
001-008. [1C] 09317-52290 WASHER
001-008. [1C] 09317-52390 WASHER
001-008. [1C] 09317-52380 WASHER
001-008. [1C] 09317-52370 WASHER
001-008. [1C] 09317-52360 WASHER
001-008. [1C] 09317-52350 WASHER
001-008. [1C] 09317-52340 WASHER
001-008. [1C] 09317-52330 WASHER
001-008. [1C] 09317-52320 WASHER
001-008. [1C] 09317-52310 WASHER
001-008. [1C] 09317-52300 WASHER
001-009. [1C] 09317-54440 WASHER
001-009. [1C] 09317-54450 WASHER
001-009. [1C] 09317-54460 WASHER
001-009. [1C] 09317-54470 WASHER
001-009. [1C] 09317-54480 WASHER
001-009. [1C] 09317-54430 WASHER
001-009. [1C] 09317-54420 WASHER
001-009. [1C] 09317-54410 WASHER
001-009. [1C] 09317-54400 WASHER
001-009. [1C] 09317-54390 WASHER
001-009. [1C] 09317-54380 WASHER
001-009. [1C] 09317-54370 WASHER
001-009. [1C] 09317-54360 WASHER
001-009. [1C] 09317-54490 WASHER
001-009. [1C] 09317-54500 WASHER
001-009. [1C] 09317-54620 WASHER
001-009. [1C] 09317-54610 WASHER
001-009. [1C] 09317-54600 WASHER
001-009. [1C] 09317-54590 WASHER
001-009. [1C] 09317-54580 WASHER
001-009. [1C] 09317-54570 WASHER
001-009. [1C] 09317-54560 WASHER
001-009. [1C] 09317-54550 WASHER
001-009. [1C] 09317-54540 WASHER
001-009. [1C] 09317-54530 WASHER
001-009. [1C] 09317-54520 WASHER
001-009. [1C] 09317-54510 WASHER
001-009. [1C] 09317-54630 WASHER
001-009. [1C] 09317-54350 WASHER
001-009. [1C] 09317-54340 WASHER
001-009. [1C] 09317-54180 WASHER
001-009. [1C] 09317-54170 WASHER
001-009. [1C] 09317-54160 WASHER
001-009. [1C] 09317-54150 WASHER
001-009. [1C] 09317-54140 WASHER
001-009. [1C] 09317-54130 WASHER
001-009. [1C] 09317-54120 WASHER
001-009. [1C] 09317-54110 WASHER
001-009. [1C] 09317-54100 WASHER
001-009. [1C] 09317-54090 WASHER
001-009. [1C] 09317-54080 WASHER
001-009. [1C] 09317-54070 WASHER
001-009. [1C] 09317-54190 WASHER
001-009. [1C] 09317-54200 WASHER
001-009. [1C] 09317-54210 WASHER
001-009. [1C] 09317-54330 WASHER
001-009. [1C] 09317-54320 WASHER
001-009. [1C] 09317-54310 WASHER
001-009. [1C] 09317-54300 WASHER
001-009. [1C] 09317-54290 WASHER
001-009. [1C] 09317-54280 WASHER
001-009. [1C] 09317-54270 WASHER
001-009. [1C] 09317-54260 WASHER
001-009. [1C] 09317-54250 WASHER
001-009. [1C] 09317-54240 WASHER
001-009. [1C] 09317-54230 WASHER
001-009. [1C] 09317-54220 WASHER
001-010. [1C] 09317-56390 WASHER
001-010. [1C] 09317-56380 WASHER
001-010. [1C] 09317-56370 WASHER
001-010. [1C] 09317-56360 WASHER
001-010. [1C] 09317-56350 WASHER
001-011. [01] 09322-10180 PACKING, TIP
001-012. [02] 94908-23650 PIN, STRAIGHT
002. [01] 09340-07560 NOZZLE ASSY 1C050-53611
004. [01] 90804-10110 O-RING
005. [01] 90804-20150 O-RING

Include in #3:

09350-07462 as HOLDER & NOZZLE SE

Cross reference number



Part num Firm num Firm Name
09350-07462  1C050-5300  HOLDER & NOZZLE SE




Information:

2. Specifications (standard) FUEL INJECTION NOZZLE
1. Inspection(1) Injection pressure (valve opening pressure) test(a) Install the injection nozzle on the tester. Slowly operate the tester handle to bleed (remove) air from the tester.(b) Operate the tester handle at a speed of one stroke per second to make a slow increase in pressure until the valve in the injection nozzle starts to open. Read the maximum gauge pressure at the instant fluid flows from the tip.(c) If the injection pressure is incorrect, disassemble the nozzle and change the thickness of the washer.
Fuel injection nozzle ready for test
Removing tip from injection nozzle An increase or decrease of washer thickness by 0.1 mm (0.004 in.) will vary the injection pressure by 10 kgf/cm 2 (142 psi) [981 kPa]. 10 kinds of washer are available in thicknesses from 1.25 mm (0.049 2 in.) to 1.70 mm (0.066 9 in.) in increments of 0.05 mm (0.002 0 in.).
When the injection nozzles are tested, be sure to wear eye protection. Fuel comes from the orifices in the nozzle tip with high pressure. The fuel can pierce (go through) the skin and cause serious injury to the operator. Keep the tip of the nozzle pointed away from the operator and into the fuel collector.
(2) Orifice restriction test (a) Look at the orifice discharge pattern (shape of discharge) when fluid begins to flow through the injection nozzle. The discharge must be straight. Any change is an indication of a bad nozzle. (b) Operate the tester handle at a speed of one stroke per second to make sure the discharge is straight.
Orifice restriction test3. Nozzle tip washing and replacement (a) Loosen the retaining nut and remove the tip from the injection nozzle. Wash the needle valve and body in clean diesel fuel. After washing, put the needle valve in the body in clean diesel fuel.
Do not hit the tip when removing it from the injection nozzle.
Washing nozzle tip Keep the need valves with their respective bodies. Do not use needle valves or bodies with other bodies or needle valves.(b) After cleaning the tip, install it in the nozzle and tighten the retaining nut to the specified torque. (c) If the injection nozzle is still bad after the tip has been washed, replace the tip. a) Do not touch the sliding surface of the needle valve.b) When installing the new nozzle tip, remove synthetic resin film from the tip and slide the needle valve in the body in clean diesel fuel to wash off inhibitor completely.2. Disassembly and assembly
Disassembly sequence and inspection points1 Retaining nut2 Nozzle tip assembly3 Piece4 Pin5 Spring6 Washer7 BodyFUEL INJECTION PUMP
1. Test on engine Check the injection pump for items listed in the chart below and replace it if defective. Do not attempt to make repairs by disassembling. 2. Disassembly
Disassembly sequence1 Tappet guide pin2 Lock plate3 Tappet4 Tappet adjusting shim5 Lower spring seat6 Plunger7 Plunger spring8 Upper spring seat9 Control sleeve10 Control rack11 Delivery valve holder12 O-ring13 Delivery valve spring14 Delivery valve gasket15 Delivery valve16
