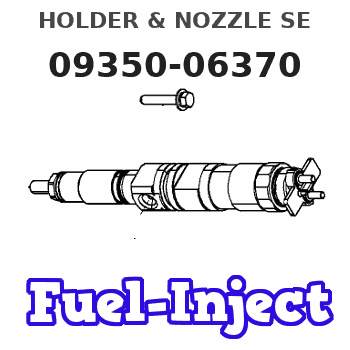

Information holder & nozzle se
Rating:
Components :
| 001. | HOLDER & NOZZLE SE | 09350-06370 |
Scheme ###:
| 000. | [01] | 09350-06370 | HOLDER & NOZZLE SE | RE64265 |
| 001. | [01] | 09310-06370 | HOLDER ASSY, NOZZL | |
| 001-001. | [01] | 09311-06370 | BODY SUB-ASSY, NOZ | |
| 001-002. | [01] | 09312-10460 | PIN, NOZZLE HOLDER | |
| 001-003. | [01] | 09312-70480 | SPRING, NOZZLE HOL | |
| 001-004. | [01] | 09316-20112 | SCREW, CYLINDER | |
| 001-005. | [01] | 09316-41690 | NUT, NOZZLE RETAIN | |
| 001-006. | [1C] | 09317-51560 | WASHER | |
| 001-006. | [1C] | 09317-51550 | WASHER | |
| 001-006. | [1C] | 09317-51540 | WASHER | |
| 001-006. | [1C] | 09317-51530 | WASHER | |
| 001-006. | [1C] | 09317-51520 | WASHER | |
| 001-006. | [1C] | 09317-51510 | WASHER | |
| 001-006. | [1C] | 09317-51570 | WASHER | |
| 001-006. | [1C] | 09317-51580 | WASHER | |
| 001-006. | [1C] | 09317-51590 | WASHER | |
| 001-006. | [1C] | 09317-51600 | WASHER | |
| 001-006. | [1C] | 09317-51610 | WASHER | |
| 001-006. | [1C] | 09317-51620 | WASHER | |
| 001-006. | [1C] | 09317-51630 | WASHER | |
| 001-006. | [1C] | 09317-51640 | WASHER | |
| 001-006. | [1C] | 09317-51650 | WASHER | |
| 001-006. | [1C] | 09317-51500 | WASHER | |
| 001-006. | [1C] | 09317-51180 | WASHER | |
| 001-006. | [1C] | 09317-51170 | WASHER | |
| 001-006. | [1C] | 09317-51020 | WASHER | |
| 001-006. | [1C] | 09317-51030 | WASHER | |
| 001-006. | [1C] | 09317-51040 | WASHER | |
| 001-006. | [1C] | 09317-51050 | WASHER | |
| 001-006. | [1C] | 09317-51060 | WASHER | |
| 001-006. | [1C] | 09317-51070 | WASHER | |
| 001-006. | [1C] | 09317-51080 | WASHER | |
| 001-006. | [1C] | 09317-51090 | WASHER | |
| 001-006. | [1C] | 09317-51100 | WASHER | |
| 001-006. | [1C] | 09317-51160 | WASHER | |
| 001-006. | [1C] | 09317-51150 | WASHER | |
| 001-006. | [1C] | 09317-51140 | WASHER | |
| 001-006. | [1C] | 09317-51130 | WASHER | |
| 001-006. | [1C] | 09317-51120 | WASHER | |
| 001-006. | [1C] | 09317-51110 | WASHER | |
| 001-007. | [01] | 09322-00090 | PACKING SUB-ASSY, | |
| 001-011. | [01] | 90801-10190 | O-RING | |
| 002. | [01] | 09340-06620 | NOZZLE ASSY | RE64266 |
Include in #3:
09350-06370
as HOLDER & NOZZLE SE
Include as Nozzle:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09350-06370 | RE64265 | HOLDER & NOZZLE SE | |
| RE64265 | JOHN DEERE | HOLDER & NOZZLE SE |
Information:
(S/N: 5F51-101)AP600F (S/N: LR61-108)AP655F (S/N: 4801-103; P651-124; ML61-113; 4791-122,125-125)Excavator320D2 (S/N: BW21-235; CY21-192; ZBH1-975,10001-10185)323D2 (S/N: FLC1-219,10001-10004; KCE1-428; JEG1-257; PJP1-1331; YCR1-288; TDT1-560,10001-10135; KBX1-191,10001-10006)326D2 (S/N: REC1-197,199-199,202-203,205-206,208-212; MZH1-282,10001-10006; JFL1-174; XAM1-510,10001-10060; MGW1-313; NBX1-156; KGY1-323)329D2 (S/N: RGA1-309; KJB1-180; SHJ1-190; TMJ1-376; WDT145-145; THW1-506,509-554)330D2 (S/N: PTE1-211; ZBF1-514,10001-10073,10076-10088; RCK1-357; SZK1-561,10001-10143)Generator SetXQP150 (S/N: PJ71-105,107-107,109-112)Motor Grader120L (S/N: E93100-100)120N (S/N: E94100-100; E951-101)Soil Compactor815K (S/N: WCS100-100,201-201)TelehandlerTL1055D (S/N: MNT63-63,150-181,183-186,188-188,192-192)TL1255D (S/N: MYW1-157,160-161,15700-15700)Track-Type TractorD3K2 (S/N: FT31-103,2100-2115,2119-2119; LT31-113,2110-2111)D4K2 (S/N: RT3130-130,2130-2130)D5K2 (S/N: WT31-157,2140-2174; YT31-157,2150-2163,2167-2167)D5R2 (S/N: R5A150-150,152-158,161-162)D6K2 (S/N: MXK1-273; RPR1-307)D6N (S/N: P5T1-166)Vibratory Soil CompactorCS79B (S/N: CM71-101)Wheel Loader924K (S/N: KW41-395; ENC1-1566; HJF1-101,250-818; SNZ100-100,250-430)930K (S/N: DYB1-486; EYE1-127,250-789; FRK1-131,350-433; P3K1-195; TNY1-69)938K (S/N: W8K1-306; REP150-150,450-625; XXT1-137,350-962; HFW1-932)950 GC (S/N: M5K1-1212,1214-1233)950L (S/N: LXX1-228)950M (S/N: ENE1-212,215-234; LCR201-201)962L (S/N: MTN1-163; SXS1-203)962M (S/N: LSE1-208)Wheel Skidder525D (S/N: 2L51-153)535D (S/N: 3L51-136)545D (S/N: 4L51-159)555D (S/N: 5L51-111)Wheeled ExcavatorM315D2 (S/N: CA41-103,189-266)M317D2 (S/N: CA61-284)M320D2 (S/N: EN81-330; CH91-149)M322D 2 MH (S/N: EN9215-215)M322D2 (S/N: EN21-207)M324D 2 MH (S/N: EN31-179)Description Of Change: A new injector sleeve has been introduced. The new injector sleeve has improved sealing bead geometry.Adaptable To: New 517-8243 Injector Sleeve replaces 277-5067 Injector Sleeve.To remove the existing injector sleeve, refer to Disassembly and Assembly, Fuel Injection Lines - Remove for the correct procedure.To install the new injector sleeve, refer to Disassembly and Assembly, Fuel Injection Lines - Install for the correct procedure.
