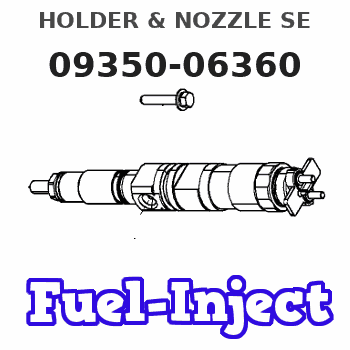

Information holder & nozzle se
Rating:
Components :
| 001. | HOLDER & NOZZLE SE | 09350-06360 |
Scheme ###:
| 000. | [01] | 09350-06360 | HOLDER & NOZZLE SE | RE64263 |
| 001. | [01] | 09310-06360 | HOLDER ASSY, NOZZL | |
| 001-001. | [01] | 09311-06360 | BODY SUB-ASSY, NOZ | |
| 001-002. | [01] | 09312-10460 | PIN, NOZZLE HOLDER | |
| 001-003. | [01] | 09312-70480 | SPRING, NOZZLE HOL | |
| 001-004. | [01] | 09316-20112 | SCREW, CYLINDER | |
| 001-005. | [01] | 09316-41690 | NUT, NOZZLE RETAIN | |
| 001-006. | [1C] | 09317-51560 | WASHER | |
| 001-006. | [1C] | 09317-51550 | WASHER | |
| 001-006. | [1C] | 09317-51540 | WASHER | |
| 001-006. | [1C] | 09317-51530 | WASHER | |
| 001-006. | [1C] | 09317-51520 | WASHER | |
| 001-006. | [1C] | 09317-51510 | WASHER | |
| 001-006. | [1C] | 09317-51570 | WASHER | |
| 001-006. | [1C] | 09317-51580 | WASHER | |
| 001-006. | [1C] | 09317-51590 | WASHER | |
| 001-006. | [1C] | 09317-51600 | WASHER | |
| 001-006. | [1C] | 09317-51610 | WASHER | |
| 001-006. | [1C] | 09317-51620 | WASHER | |
| 001-006. | [1C] | 09317-51630 | WASHER | |
| 001-006. | [1C] | 09317-51640 | WASHER | |
| 001-006. | [1C] | 09317-51650 | WASHER | |
| 001-006. | [1C] | 09317-51500 | WASHER | |
| 001-006. | [1C] | 09317-51180 | WASHER | |
| 001-006. | [1C] | 09317-51170 | WASHER | |
| 001-006. | [1C] | 09317-51020 | WASHER | |
| 001-006. | [1C] | 09317-51030 | WASHER | |
| 001-006. | [1C] | 09317-51040 | WASHER | |
| 001-006. | [1C] | 09317-51050 | WASHER | |
| 001-006. | [1C] | 09317-51060 | WASHER | |
| 001-006. | [1C] | 09317-51070 | WASHER | |
| 001-006. | [1C] | 09317-51080 | WASHER | |
| 001-006. | [1C] | 09317-51090 | WASHER | |
| 001-006. | [1C] | 09317-51100 | WASHER | |
| 001-006. | [1C] | 09317-51160 | WASHER | |
| 001-006. | [1C] | 09317-51150 | WASHER | |
| 001-006. | [1C] | 09317-51140 | WASHER | |
| 001-006. | [1C] | 09317-51130 | WASHER | |
| 001-006. | [1C] | 09317-51120 | WASHER | |
| 001-006. | [1C] | 09317-51110 | WASHER | |
| 001-007. | [01] | 09322-00090 | PACKING SUB-ASSY, | |
| 001-011. | [01] | 90801-10190 | O-RING | |
| 002. | [01] | 09340-06610 | NOZZLE ASSY | RE64264 |
Include in #3:
09350-06360
as HOLDER & NOZZLE SE
Include as Nozzle:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09350-06360 | RE64263 | HOLDER & NOZZLE SE | |
| RE64263 | JOHN DEERE | HOLDER & NOZZLE SE |
