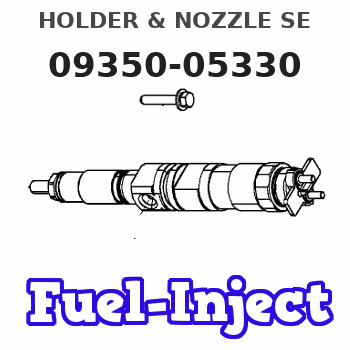

Information holder & nozzle se
Rating:
Components :
| 001. | HOLDER & NOZZLE SE | 09350-05330 |
| 001. | HOLDER & NOZZLE SE | 09350-05330 |

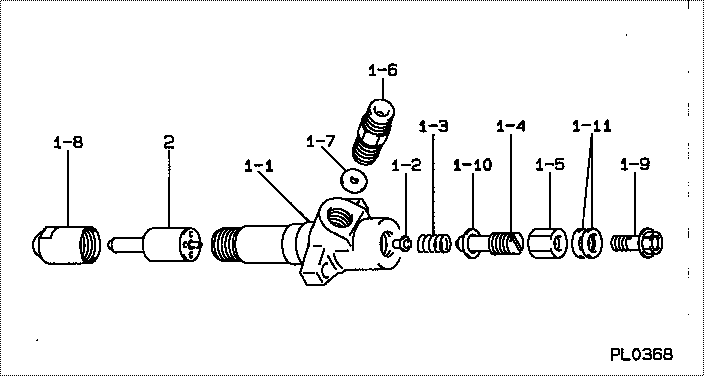

Scheme ###:
| 000. | [01] | 09350-05330 | HOLDER & NOZZLE SE | 23610-1910 |
| 000. | [01] | 09350-05330 | HOLDER & NOZZLE SE | S2361-01910 |
| 001. | [01] | 09310-05330 | HOLDER ASSY, NOZZL | S2363-01850-A |
| 001-001. | [01] | 09311-05330 | BODY SUB-ASSY, NOZ | |
| 001-002. | [01] | 09312-10330 | PIN, NOZZLE HOLDER | S2361-61030-A |
| 001-003. | [01] | 09312-70280 | SPRING, NOZZLE HOL | S2361-51190-A |
| 001-004. | [01] | 09313-10200 | SCREW, ADJUST | S2361-41060-A |
| 001-005. | [01] | 09313-40270 | NUT, CAP | S2362-31310-A |
| 001-006. | [01] | 09315-10340 | CONNECTOR, NOZZLE | 23611-1190A |
| 001-007. | [01] | 09315-80010 | GASKET, INLET CONN | S2362-11070-A |
| 001-008. | [01] | 09316-41290 | NUT, NOZZLE RETAIN | |
| 001-009. | [01] | 94918-00630 | SCREW, HOLLOW | S2283-51130-A |
| 001-009. | [01] | 09507-40012 | SCREW, HOLLOW OUTL | S2283-51570-A |
| 001-010. | [01] | 09324-50052 | WASHER | S2284-71290-A |
| 001-011. | [02] | 94901-02640 | WASHER | S2284-71870-A |
| 002. | [01] | 09340-02730 | NOZZLE ASSY | S2365-01790-A |
Include in #3:
09350-05330
as HOLDER & NOZZLE SE
09350-05330
Include as Nozzle:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09350-05330 | 23610-1910 | HOLDER & NOZZLE SE | |
| 23610-1910 | HINO | HOLDER & NOZZLE SE | |
| S2361-01910 | HINO | HOLDER & NOZZLE SE |
