09350-04730 HOLDER & NOZZLE SE Denso Cross




Information holder & nozzle se

09350-04730 HOLDER & NOZZLE SE
Rating:
15
Buy HOLDER & NOZZLE SE 09350-04730 genuine, new aftermarket engine parts with delivery

Components :

001. HOLDER & NOZZLE SE 09350-04730
001. HOLDER & NOZZLE SE 09350-04730

Scheme ###:

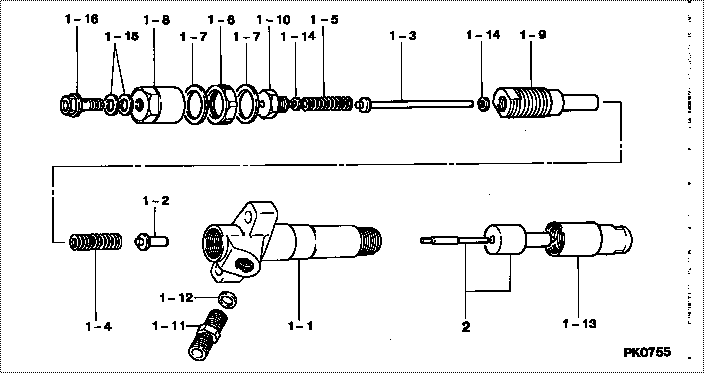

HOLDER & NOZZLE SE
000. [01] 09350-04730 HOLDER & NOZZLE SE 23610-1770
000. [01] 09350-04730 HOLDER & NOZZLE SE S2361-01770
001. [01] 09310-04730 HOLDER ASSY, NOZZL S2363-01700-A
001-001. [01] 09311-04730 BODY SUB-ASSY, NOZ S2361-21350-A
001-002. [01] 09312-10440 PIN, NOZZLE HOLDER S2362-21140-A
001-003. [01] 09312-10420 PIN, NOZZLE HOLDER S2362-21120-A
001-004. [01] 09312-70280 SPRING, NOZZLE HOL S2361-51190-A
001-005. [01] 09312-70380 SPRING, NOZZLE HOL S2361-51200-A
001-006. [01] 09313-20060 NUT, LOCK S2282-51780-A
001-007. [02] 09313-30100 GASKET S2366-11150-A
001-008. [01] 09313-40370 NUT, CAP S2362-31240-A
001-009. [01] 09313-60020 SCREW, CAPSULE S2361-31150-A
001-010. [01] 09313-70010 SCREW, PLUG S2361-41130-A
001-011. [01] 09315-10420 CONNECTOR, NOZZLE S2360-11160-A
001-012. [01] 09315-80010 GASKET, INLET CONN S2362-11070-A
001-013. [01] 09316-41450 NUT, NOZZLE RETAIN S2363-31590-A
001-014. [2C] 09317-53570 WASHER S2288-55460-A
001-014. [2C] 09317-53590 WASHER S2288-55470-A
001-014. [2C] 09317-53610 WASHER S2288-55480-A
001-014. [2C] 09317-53630 WASHER S2288-55490-A
001-014. [2C] 09317-53650 WASHER S2288-55500-A
001-014. [2C] 09317-53670 WASHER S2288-54570-A
001-014. [2C] 09317-53680 WASHER S2288-54580-A
001-014. [2C] 09317-53550 WASHER S2288-55450-A
001-014. [2C] 09317-53530 WASHER S2288-55440-A
001-014. [2C] 09317-53510 WASHER S2288-55430-A
001-014. [2C] 09317-53490 WASHER S2288-55420-A
001-014. [2C] 09317-53470 WASHER S2288-55410-A
001-014. [2C] 09317-53450 WASHER S2288-55400-A
001-014. [2C] 09317-53430 WASHER S2288-55390-A
001-014. [2C] 09317-53410 WASHER S2288-55380-A
001-014. [2C] 09317-53390 WASHER S2288-55370-A
001-014. [2C] 09317-53690 WASHER S2288-54590-A
001-014. [2C] 09317-53700 WASHER S2288-54600-A
001-014. [2C] 09317-53710 WASHER S2288-54610-A
001-014. [2C] 09317-53860 WASHER S2288-54760-A
001-014. [2C] 09317-53850 WASHER S2288-54750-A
001-014. [2C] 09317-53840 WASHER S2288-54740-A
001-014. [2C] 09317-53830 WASHER S2288-54730-A
001-014. [2C] 09317-53820 WASHER S2288-54720-A
001-014. [2C] 09317-53810 WASHER S2288-54710-A
001-014. [2C] 09317-53800 WASHER S2288-54700-A
001-014. [2C] 09317-53790 WASHER S2288-54690-A
001-014. [2C] 09317-53780 WASHER S2288-54680-A
001-014. [2C] 09317-53770 WASHER S2288-54670-A
001-014. [2C] 09317-53760 WASHER S2288-54660-A
001-014. [2C] 09317-53750 WASHER S2288-54650-A
001-014. [2C] 09317-53740 WASHER S2288-54640-A
001-014. [2C] 09317-53730 WASHER S2288-54630-A
001-014. [2C] 09317-53720 WASHER S2288-54620-A
001-014. [2C] 09317-53870 WASHER S2288-54770-A
001-014. [2C] 09317-53370 WASHER S2288-55360-A
001-014. [2C] 09317-53350 WASHER S2288-55350-A
001-014. [2C] 09317-52970 WASHER S2288-54470-A
001-014. [2C] 09317-52950 WASHER S2288-54460-A
001-014. [2C] 09317-52930 WASHER S2288-54450-A
001-014. [2C] 09317-52910 WASHER S2288-54440-A
001-014. [2C] 09317-52890 WASHER S2288-54430-A
001-014. [2C] 09317-52870 WASHER S2288-54420-A
001-014. [2C] 09317-52850 WASHER S2288-54410-A
001-014. [2C] 09317-52830 WASHER S2288-54400-A
001-014. [2C] 09317-52810 WASHER S2288-54390-A
001-014. [2C] 09317-52790 WASHER S2288-54380-A
001-014. [2C] 09317-52770 WASHER S2288-54370-A
001-014. [2C] 09317-52750 WASHER S2288-54360-A
001-014. [2C] 09317-52730 WASHER S2288-54350-A
001-014. [2C] 09317-52710 WASHER S2288-54340-A
001-014. [2C] 09317-52690 WASHER S2288-54330-A
001-014. [2C] 09317-52670 WASHER S2288-54320-A
001-014. [2C] 09317-52990 WASHER S2288-54480-A
001-014. [2C] 09317-53010 WASHER S2288-54490-A
001-014. [2C] 09317-53330 WASHER S2288-55340-A
001-014. [2C] 09317-53310 WASHER S2288-55330-A
001-014. [2C] 09317-53290 WASHER S2288-55320-A
001-014. [2C] 09317-53270 WASHER S2288-55310-A
001-014. [2C] 09317-53250 WASHER S2288-55300-A
001-014. [2C] 09317-53230 WASHER S2288-55290-A
001-014. [2C] 09317-53210 WASHER S2288-55280-A
001-014. [2C] 09317-53190 WASHER S2288-55270-A
001-014. [2C] 09317-53170 WASHER S2288-55260-A
001-014. [2C] 09317-53030 WASHER S2288-54500-A
001-014. [2C] 09317-53050 WASHER S2288-54510-A
001-014. [2C] 09317-53070 WASHER S2288-54520-A
001-014. [2C] 09317-53090 WASHER S2288-54530-A
001-014. [2C] 09317-53110 WASHER S2288-54540-A
001-014. [2C] 09317-53130 WASHER S2288-54550-A
001-014. [2C] 09317-53150 WASHER S2288-54560-A
001-015. [02] 94901-02640 WASHER S2284-71870-A
001-016. [01] 94918-00630 SCREW, HOLLOW S2283-51130-A
001-016. [01] 09507-40012 SCREW, HOLLOW OUTL S2283-51570-A
002. [01] 09340-02480 NOZZLE ASSY S2365-01680-A

Include in #3:

09350-04730 as HOLDER & NOZZLE SE
09350-04730

Include as Nozzle:

0920000150 as Nozzle
0920000920
0920001050
1910007590
1910008180
1910008270

Cross reference number



Part num Firm num Firm Name
09350-04730  23610-1770  HOLDER & NOZZLE SE
23610-1770    HINO HOLDER & NOZZLE SE
S2361-01770    HINO HOLDER & NOZZLE SE




Information:


DO NOT START THE ENGINE WITHOUT PRIMING THE FUEL SYSTEM
Illustration 1 g03735591
Damaged plunger spring due to improper fuel system primingFuel System Priming Procedure:
Disconnect the injector harness at the valve cover.
Use the hand primer to fill the fuel system. Pump until the hand primer becomes too hard to depress by hand.
Crank the engine 3 times for 15 seconds each. Reapply the hand primer after each cranking cycle.
Once the hand primer remains hard to depress after the 15 second crank, reconnect the injector harness and start the engine.
Clear any related fault codes (ET) that were logged while cranking the engine with the injector harness disconnected.
Illustration 2 g03736011

Have questions with 09350-04730?





09350-04720 HOLDER & NOZZLE SE 09350-04710 09350-04703 09350-04670 09350-04660
