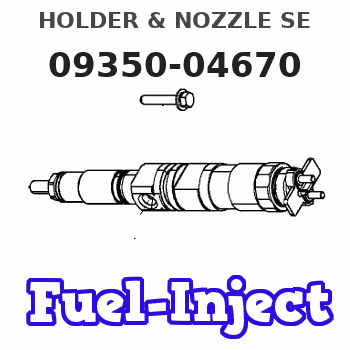

Information holder & nozzle se
Rating:
Components :
| 001. | HOLDER & NOZZLE SE | 09350-04670 |
Scheme ###:
| 000. | [01] | 09350-04670 | HOLDER & NOZZLE SE | 61621-39800 |
| 001. | [01] | 09310-04670 | HOLDER ASSY, NOZZL | 61621-39860 |
| 001-001. | [01] | 09311-04670 | BODY SUB-ASSY, NOZ | |
| 001-002. | [01] | 09312-10030 | PIN, NOZZLE HOLDER | |
| 001-003. | [01] | 09312-70330 | SPRING, NOZZLE HOL | |
| 001-004. | [01] | 09316-41250 | NUT, NOZZLE RETAIN | |
| 001-005. | [ C] | 09317-51190 | WASHER | |
| 001-005. | [ C] | 09317-51010 | WASHER | |
| 001-005. | [ C] | 09317-51000 | WASHER | |
| 001-005. | [ C] | 09317-50990 | WASHER | |
| 001-005. | [ C] | 09317-50980 | WASHER | |
| 001-005. | [ C] | 09317-51200 | WASHER | |
| 001-005. | [ C] | 09317-51210 | WASHER | |
| 001-005. | [ C] | 09317-51220 | WASHER | |
| 001-005. | [ C] | 09317-51230 | WASHER | |
| 001-005. | [ C] | 09317-51240 | WASHER | |
| 001-005. | [ C] | 09317-51250 | WASHER | |
| 001-005. | [ C] | 09317-51260 | WASHER | |
| 001-005. | [ C] | 09317-50640 | WASHER | |
| 001-005. | [ C] | 09317-50630 | WASHER | |
| 001-005. | [01] | 09317-50210 | WASHER | |
| 001-005. | [ C] | 09317-50220 | WASHER | |
| 001-005. | [ C] | 09317-50230 | WASHER | |
| 001-005. | [ C] | 09317-50240 | WASHER | |
| 001-005. | [ C] | 09317-50250 | WASHER | |
| 001-005. | [ C] | 09317-50260 | WASHER | |
| 001-005. | [ C] | 09317-50270 | WASHER | |
| 001-005. | [ C] | 09317-50280 | WASHER | |
| 001-005. | [ C] | 09317-50290 | WASHER | |
| 001-005. | [ C] | 09317-50300 | WASHER | |
| 001-005. | [ C] | 09317-50610 | WASHER | |
| 001-005. | [ C] | 09317-50620 | WASHER | |
| 001-006. | [01] | 09322-00100 | PACKING SUB-ASSY, | |
| 001-007. | [01] | 09326-60110 | FLANGE | |
| 002. | [01] | 09340-02460 | NOZZLE ASSY | 61621-39870 |
Include in #3:
09350-04670
as HOLDER & NOZZLE SE
Cross reference number
| Part num | Firm num | Firm | Name |
| 09350-04670 | 61621-3980 | HOLDER & NOZZLE SE | |
| 61621-39800 | KOMATSU | HOLDER & NOZZLE SE |
