Information holder & nozzle se
Rating:
Components :
| 001. | HOLDER & NOZZLE SE | 09350-04262 |
| 001. | HOLDER & NOZZLE SE | 09350-04262 |
Scheme ###:

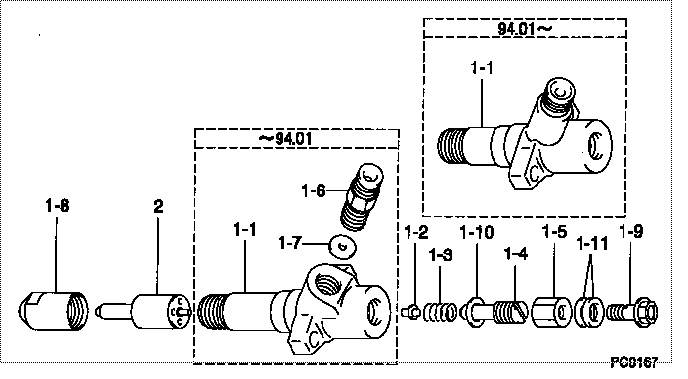

| 000. | [01] | 09350-04262 | HOLDER & NOZZLE SE | 23610-1694 |
| 000. | [01] | 09350-04262 | HOLDER & NOZZLE SE | S2361-01694 |
| 001. | [01] | 09310-04262 | HOLDER ASSY, NOZZL | S2363-01631-A |
| 001-001. | [01] | 09311-04262 | BODY SUB-ASSY, NOZ | S2360-21320-A |
| 001-002. | [01] | 09312-10330 | PIN, NOZZLE HOLDER | S2361-61030-A |
| 001-003. | [01] | 09312-70270 | SPRING, NOZZLE HOL | S2361-51270-A |
| 001-004. | [01] | 09313-10200 | SCREW, ADJUST | S2361-41060-A |
| 001-005. | [01] | 09313-40270 | NUT, CAP | S2362-31310-A |
| 001-006. | [01] | 09315-10420 | CONNECTOR, NOZZLE | S2360-11160-A |
| 001-007. | [01] | 09315-80010 | GASKET, INLET CONN | S2362-11070-A |
| 001-008. | [01] | 09316-41230 | NUT, NOZZLE RETAIN | S2363-31310-A |
| 001-009. | [01] | 94918-00630 | SCREW, HOLLOW | S2283-51130-A |
| 001-009. | [01] | 09507-40012 | SCREW, HOLLOW OUTL | S2283-51570-A |
| 001-010. | [01] | 09324-50052 | WASHER | S2284-71290-A |
| 001-011. | [02] | 94901-02640 | WASHER | S2284-71870-A |
| 002. | [01] | 09340-02282 | NOZZLE ASSY | 23650-1602A |
Include in #3:
09350-04262
as HOLDER & NOZZLE SE
09350-04262
Cross reference number
| Part num | Firm num | Firm | Name |
| 09350-04262 | 23610-1694 | HOLDER & NOZZLE SE |
Information:
Before operation, the pump must be lubricated with clean engine oil and the pump must turn freely by hand or damage to parts can be the result.
Section A:Rotation (viewed from the drive end) ... counterclockwiseTest on test stand, with SAE 10W oil at 49°C (120°F)Output ... 193 liter/min (51 U.S. gpm)With pump at ... 2550 rpm Section B:Rotation (viewed from the drive end) ... counterclockwiseTest on test stand, with SAE 10W oil at 49°C (120°F)Output ... 272 liter/min (72 U.S. gpm)At a pressure of ... 310 kPa (45 psi)With pump at ... 2550 rpmOutput ... 144 liter/min (38 U.S. gpm) At a pressure of ... 560 kPa (81 psi)With pump at ... 2550 rpm(1) Diameter of drive shaft (new) ... 20.320 0.005 mm (.8000 .0002 in) Bore in bearings for drive shaft (new) ... 20.361 0.008 mm (.8016 .0003 in)(2) Diameter of idler shaft (new) ... 20.320 0.005 mm (.8000 .0002 in) Bore in bearings for drive shaft (new) ... 20.361 0.008 mm (.8016 .0003 in)(3) Length of gears (new) ... 57.158 0.025 mm (2.2503 .0010 in) Depth of bores for gears (new) ... 57.285 0.020 mm (2.2553 .0008 in)(4) Diameter of drive shaft (new) ... 22.217 0.005 mm (.8747 .0002 in) Bore in bearings for drive shaft (new) ... 22.258 0.008 mm (.8763 .0003 in)(5) Diameter of idler shaft (new) ... 22.217 0.005 mm (.8747 .0002 in) Bore in bearings for drive shaft (new) ... 22.258 0.008 mm (.8763 .0003 in)(6) Length of gears (new) ... 79.375 0.025 mm (3.1250 .0010 in) Depth of bores for gears (new) ... 79.502 0.020 mm (3.1300 .0008 in)(7) Diameter of drive shaft (new) ... 22.217 0.005 mm (.8747 .0002 in) Bore in bearings for drive shaft (new) ... 22.258 0.008 mm (.8763 .0003 in)(8) Diameter of idler shaft (new) ... 22.217 0.005 mm (.8747 .0002 in) Bore in bearings for drive shaft (new) ... 22.258 0.008 mm (.8763 .0003 in) (9) 2S2760 Spring (oil pressure relief valve): Length under test force ... 117.9 mm (4.64 in)Test force ... 490 27 N (110 6 lb)Free length after test ... 152.9 mm (6.02 in)Outside diameter ... 27.00 mm (1.063 in)
