Information holder & nozzle se
Rating:
Components :

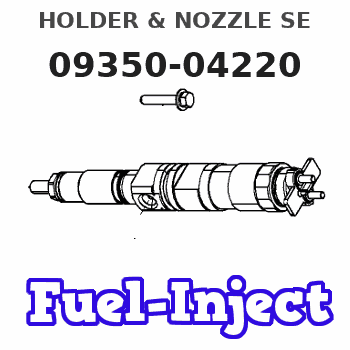

| 001. | HOLDER & NOZZLE SE | 09350-04220 |
Scheme ###:
| 000. | [01] | 09350-04220 | HOLDER & NOZZLE SE | 36661-15010 |
| 001. | [01] | 09310-04220 | HOLDER ASSY, NOZZL | 36661-16100 |
| 001-001. | [01] | 09311-04220 | BODY SUB-ASSY, NOZ | |
| 001-002. | [01] | 09312-10480 | PIN, NOZZLE HOLDER | MM514343 |
| 001-003. | [01] | 09312-70410 | SPRING, NOZZLE HOL | MM514344 |
| 001-004. | [01] | 09316-41020 | NUT, NOZZLE RETAIN | MM501788 |
| 001-005. | [1C] | 09317-52570 | WASHER | 47X0100200 |
| 001-005. | [1C] | 09317-52560 | WASHER | 47X0100100 |
| 001-005. | [1C] | 09317-52530 | WASHER | |
| 001-005. | [1C] | 09317-52460 | WASHER | MM514360 |
| 001-005. | [1C] | 09317-52450 | WASHER | MM514359 |
| 001-005. | [1C] | 09317-52440 | WASHER | |
| 001-005. | [1C] | 09317-52430 | WASHER | MM514357 |
| 001-005. | [1C] | 09317-52580 | WASHER | 47X0100300 |
| 001-005. | [1C] | 09317-52590 | WASHER | 47X0100400 |
| 001-005. | [1C] | 09317-52600 | WASHER | 47X0100500 |
| 001-005. | [1C] | 09317-52610 | WASHER | |
| 001-005. | [1C] | 09317-52620 | WASHER | |
| 001-005. | [1C] | 09317-52630 | WASHER | |
| 001-005. | [1C] | 09317-52640 | WASHER | |
| 001-005. | [1C] | 09317-52650 | WASHER | |
| 001-005. | [1C] | 09317-52660 | WASHER | |
| 001-005. | [1C] | 09317-52420 | WASHER | MM514356 |
| 001-005. | [1C] | 09317-52340 | WASHER | |
| 001-005. | [1C] | 09317-52180 | WASHER | |
| 001-005. | [1C] | 09317-52190 | WASHER | |
| 001-005. | [1C] | 09317-52200 | WASHER | |
| 001-005. | [1C] | 09317-52210 | WASHER | |
| 001-005. | [1C] | 09317-52220 | WASHER | |
| 001-005. | [1C] | 09317-52230 | WASHER | |
| 001-005. | [1C] | 09317-52240 | WASHER | |
| 001-005. | [1C] | 09317-52250 | WASHER | |
| 001-005. | [1C] | 09317-52260 | WASHER | |
| 001-005. | [1C] | 09317-52330 | WASHER | |
| 001-005. | [1C] | 09317-52320 | WASHER | |
| 001-005. | [1C] | 09317-52310 | WASHER | |
| 001-005. | [1C] | 09317-52300 | WASHER | MM501781 |
| 001-005. | [1C] | 09317-52290 | WASHER | |
| 001-005. | [1C] | 09317-52280 | WASHER | |
| 001-005. | [1C] | 09317-52270 | WASHER | |
| 001-006. | [01] | 09322-10150 | PACKING, TIP | |
| 001-007. | [02] | 94908-23160 | PIN, STRAIGHT | MM501790 |
| 002. | [01] | 09340-05680 | NOZZLE ASSY | 36661-15100 |
Include in #3:
09350-04220
as HOLDER & NOZZLE SE
Cross reference number
| Part num | Firm num | Firm | Name |
| 09350-04220 | 36661-1501 | HOLDER & NOZZLE SE | |
| 36661-15010 | MITSUBISHI | HOLDER & NOZZLE SE |
