09350-03890 HOLDER & NOZZLE SE
Rating:
6
Buy HOLDER & NOZZLE SE 09350-03890 genuine, new aftermarket engine parts with delivery

Components :

001. HOLDER & NOZZLE SE 09350-03890
001. HOLDER & NOZZLE SE 09350-03890

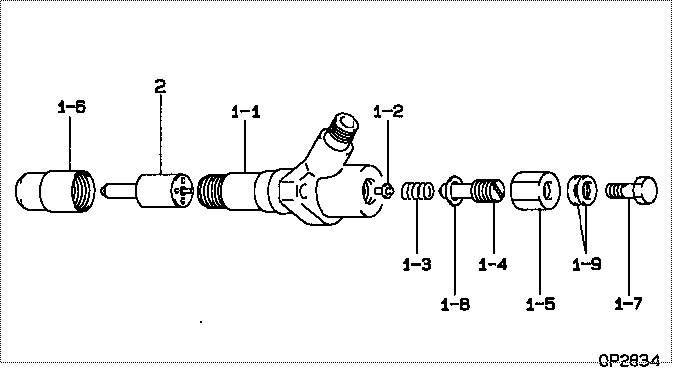

Scheme ###:

000. [01] 09350-03890 HOLDER & NOZZLE SE 23610-1620
000. [01] 09350-03890 HOLDER & NOZZLE SE S2361-01620
001. [01] 09310-03890 HOLDER ASSY, NOZZL S2363-01570-A
001-001. [01] 09311-03890 BODY SUB-ASSY, NOZ
001-002. [01] 09312-10330 PIN, NOZZLE HOLDER S2361-61030-A
001-003. [01] 09312-70280 SPRING, NOZZLE HOL S2361-51190-A
001-004. [01] 09313-10200 SCREW, ADJUST S2361-41060-A
001-005. [01] 09313-40270 NUT, CAP S2362-31310-A
001-006. [01] 09316-41090 NUT, NOZZLE RETAIN 23633-1250A
001-007. [01] 94918-00630 SCREW, HOLLOW S2283-51130-A
001-007. [01] 09507-40012 SCREW, HOLLOW OUTL S2283-51570-A
001-008. [01] 09324-50052 WASHER S2284-71290-A
001-009. [02] 94901-02640 WASHER S2284-71870-A
002. [01] 09340-02170 NOZZLE ASSY S2365-01530-A

Include in #3:

09350-03890 as HOLDER & NOZZLE SE
09350-03890

Cross reference number



Part num Firm num Firm Name
09350-03890  23610-1620  HOLDER & NOZZLE SE
23610-1620    HINO HOLDER & NOZZLE SE
S2361-01620    HINO HOLDER & NOZZLE SE




Information:

1. Remove wiring harnesses from bracket (1). 2. Disconnect the wires at connections (5). Remove seal wire (4). Remove five bolts (2), bracket (1) cover (3) and the gasket. 3. Remove two bolts (6) and clamps. Remove rack solenoid (7). 4. Disconnect wires at connections (8). Remove two bolts (10) and bracket assembly (9). Loosen the locknut and remove rack position sensor (11). Be careful not to lose the spring that is around the sensor. To remove the transducer module at this time use the following procedure:a. disconnect wires at connector (8).b. remove the connectors from the wires.c. remove four bolts that fasten transducer module (22) to housing (18).d. feed the wires through housing (18) while removing the transducer module. 5. Remove three bolts (12) from inside housing (14). Remove two bolts (13) and remove housing (14).
Typical Example6. Loosen locknut (15) and remove engine speed sensor (16).
Typical Example7. Remove seven bolts (17) and remove the transducer module and housing (18). 8. Remove three bolts (19) and cover (20). 9. Remove two bolts (21). Remove transducer module (22) and gasket. 10. Remove lockring (27), seat (25), spring (24), sleeve (23) and lockring (26). 11. Remove three bolts (28) and remove cylinder (29). 12. Remove sleeve (30), piston (31) and valve (32). Remove O-ring seal (33) from sleeve (30). 13. Remove bolts (34) and remove retainer (35). Remove two races and one bearing (not shown). Assemble Rack Actuator Package
1. Lubricate bearing (37) with engine oil. Install race (36), bearing (37), race (36) and retainer (35) on the fuel injection pump camshaft. 2. Lubricate O-ring seal (33) with engine oil and install on sleeve (30). Install valve (32) and piston (31) into sleeve (33). 3. Install sleeve (30) into cylinder (29).4. Install lockring (26), sleeve (23), spring (24), seat (25) and lockring (27) on valve (32). 5. Put cylinder assembly (29) in position on the fuel injection pump housing with piston (31) engaged over fuel injection pump rack (38). Be sure that rack (38) is properly engaged with piston (31). 6. Fasten cylinder (29) to the fuel injection pump housing with three bolts (28). The rack and servo valve (32) must move freely after bolts (28) are tight. 7. Install gasket (39) and transducer module (22) on housing (18). 8. Place wire harness (40) in the slot of the housing. 9. Install cover (20) and bolts (19).
Typical Example10. Install the gasket and housing (18) on the fuel injection pump housing with seven bolts (17).
Typical Example11. Install engine speed sensor (16) until it contacts retainer (35). Back the engine speed sensor out (counterclockwise) 180°. This procedure will provide a clearance of .76 mm (.030 in). Tighten locknut (15).
Typical Example12. Install gasket and housing (14).13. Install the rack position sensor damping seal in housing (14). Install the spring and rack position sensor (11) in housing (14).14. Connect the rack position sensor wiring connector to the transducer module wiring connector (P1 to J1). Connect the transducer module wiring connector to the control module wiring
