09350-03640 HOLDER & NOZZLE SE Denso Cross




Information holder & nozzle se

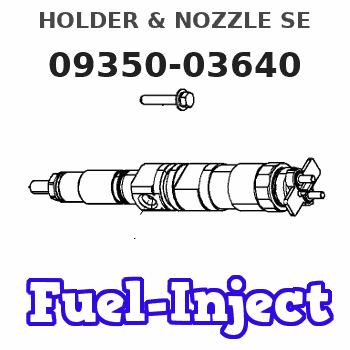

09350-03640 HOLDER & NOZZLE SE
Rating:
15
Buy HOLDER & NOZZLE SE 09350-03640 genuine, new aftermarket engine parts with delivery

Components :

001. HOLDER & NOZZLE SE 09350-03640

Scheme ###:

000. [01] 09350-03640 HOLDER & NOZZLE SE 42634-03100
001. [01] 09310-03640 HOLDER ASSY, NOZZL
001-001. [01] 09311-03640 BODY SUB-ASSY, NOZ
001-002. [01] 09312-10330 PIN, NOZZLE HOLDER
001-003. [01] 09312-70270 SPRING, NOZZLE HOL
001-004. [01] 09313-10200 SCREW, ADJUST
001-005. [01] 09313-40290 NUT, CAP
001-006. [01] 09315-10280 CONNECTOR, NOZZLE
001-007. [01] 09315-80010 GASKET, INLET CONN EZ0087405
001-008. [01] 09316-40781 NUT, NOZZLE RETAIN
001-009. [01] 94918-00630 SCREW, HOLLOW
001-010. [01] 09324-50052 WASHER ME022312
001-011. [02] 09022-20080 WASHER, FUEL PIPE MM500114
002. [01] 09340-02110 NOZZLE ASSY 42634-03200

Include in #3:

09350-03640 as HOLDER & NOZZLE SE

Include as Nozzle:

Cross reference number



Part num Firm num Firm Name
09350-03640  42634-0310  HOLDER & NOZZLE SE
42634-03100    MITSUBISHI HOLDER & NOZZLE SE
