Information holder & nozzle se
Rating:
Components :

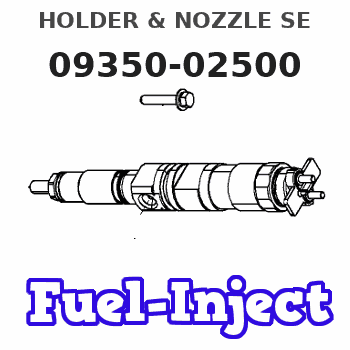

| 001. | HOLDER & NOZZLE SE | 09350-02500 |
Scheme ###:
| 000. | [01] | 09350-02500 | HOLDER & NOZZLE SE | 23610-1330 |
| 001. | [01] | 09310-02500 | HOLDER ASSY, NOZZL | 23630-1280B |
| 001-001. | [01] | 09311-02500 | BODY SUB-ASSY, NOZ | |
| 001-002. | [01] | 09312-10330 | PIN, NOZZLE HOLDER | 23616-1030A |
| 001-003. | [01] | 09312-70280 | SPRING, NOZZLE HOL | 23615-1190A |
| 001-004. | [01] | 09313-10210 | SCREW, ADJUST | 23614-1040 |
| 001-004. | [01] | 09313-10200 | SCREW, ADJUST | 23614-1060A |
| 001-005. | [01] | 09313-40270 | NUT, CAP | 23623-1310A |
| 001-005. | [01] | 09313-40330 | NUT, CAP | 23623-1110 |
| 001-006. | [01] | 09315-10360 | CONNECTOR, NOZZLE | 23611-1200 |
| 001-007. | [01] | 09315-80010 | GASKET, INLET CONN | 23621-1070A |
| 001-008. | [01] | 09316-41040 | NUT, NOZZLE RETAIN | |
| 001-009. | [01] | 94918-00630 | SCREW, HOLLOW | 22835-1130A |
| 001-010. | [01] | 09324-50052 | WASHER | 22847-1290A |
| 001-011. | [02] | 94901-02640 | WASHER | 22847-1870A |
| 002. | [01] | 09340-01450 | NOZZLE ASSY | 23650-1281A |
Include in #3:
09350-02500
as HOLDER & NOZZLE SE
Include as Nozzle:
1900008380
as Nozzle
Cross reference number
| Part num | Firm num | Firm | Name |
| 09350-02500 | 23610-1330 | HOLDER & NOZZLE SE | |
| 23610-1330 | HINO | HOLDER & NOZZLE SE |
