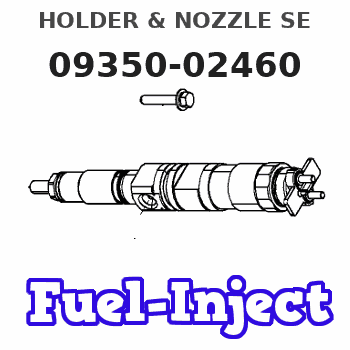

Information holder & nozzle se
Rating:
Components :
| 001. | HOLDER & NOZZLE SE | 09350-02460 |
Scheme ###:
| 000. | [01] | 09350-02460 | HOLDER & NOZZLE SE | 23600-87701-000 |
| 001. | [01] | 09317-50100 | WASHER | 23641-46010-000 |
| 001-001. | [01] | 09311-02460 | BODY SUB-ASSY, NOZ | 23626-87701-000 |
| 001-002. | [01] | 09312-10030 | PIN, NOZZLE HOLDER | 23619-46010-000 |
| 001-003. | [01] | 09312-70020 | SPRING, NOZZLE HOL | 23618-46010-000 |
| 001-004. | [01] | 09316-40691 | NUT, NOZZLE RETAIN | 23624-47011-000 |
| 001-004. | [01] | 09316-41011 | NUT, NOZZLE RETAIN | 23624-87701-000 |
| 001-005. | [01] | 09317-40011 | DISTANCE PIECE | 23629-46010-000 |
| 001-006. | [1C] | 09317-50120 | WASHER | 23643-46010-000 |
| 001-006. | [1C] | 09317-50130 | WASHER | 23644-46010-000 |
| 001-006. | [1C] | 09317-50140 | WASHER | 23645-46010-000 |
| 001-006. | [1C] | 09317-50150 | WASHER | 23646-46010-000 |
| 001-006. | [1C] | 09317-50160 | WASHER | 23647-46010-000 |
| 001-006. | [1C] | 09317-50170 | WASHER | 23648-46010-000 |
| 001-006. | [1C] | 09317-50180 | WASHER | 23649-46010-000 |
| 001-006. | [1C] | 09317-50190 | WASHER | 23651-46010-000 |
| 001-006. | [1C] | 09317-50200 | WASHER | 23652-46010-000 |
| 001-006. | [1C] | 09317-50110 | WASHER | 23642-46010-000 |
| 001-006. | [1C] | 09317-50100 | WASHER | 23641-46010-000 |
| 001-006. | [1C] | 09317-50010 | WASHER | 23631-46010-000 |
| 001-006. | [1C] | 09317-50020 | WASHER | 23632-46010-000 |
| 001-006. | [1C] | 09317-50030 | WASHER | 23633-46010-000 |
| 001-006. | [1C] | 09317-50040 | WASHER | 23634-46010-000 |
| 001-006. | [1C] | 09317-50050 | WASHER | 23635-46010-000 |
| 001-006. | [1C] | 09317-50060 | WASHER | 23636-46010-000 |
| 001-006. | [1C] | 09317-50070 | WASHER | 23637-46010-000 |
| 001-006. | [1C] | 09317-50080 | WASHER | 23638-46010-000 |
| 001-006. | [1C] | 09317-50090 | WASHER | 23639-46010-000 |
| 001-007. | [01] | 09324-50040 | WASHER | 23654-46010-000 |
| 001-009. | [01] | 94905-02480 | NUT, HEXAGON | 23628-46010-000 |
| 002. | [01] | 09340-01460 | NOZZLE ASSY | 23620-87701-000 |
Include in #3:
09350-02460
as HOLDER & NOZZLE SE
Include as Nozzle:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09350-02460 | 23600-8770 | HOLDER & NOZZLE SE | |
| 23600-87701-000 | DAIHATSU | HOLDER & NOZZLE SE |
