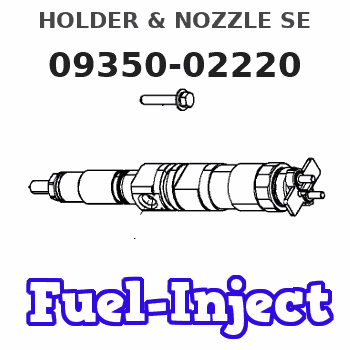

Information holder & nozzle se
Rating:
Components :
| 001. | HOLDER & NOZZLE SE | 09350-02220 |
Scheme ###:
| 000. | [01] | 09350-02220 | HOLDER & NOZZLE SE | 61341-13300 |
| 001. | [01] | 09310-02220 | HOLDER ASSY, NOZZL | 61341-13310 |
| 001-001. | [01] | 09311-02220 | BODY SUB-ASSY, NOZ | 09311-02220 |
| 001-002. | [01] | 09312-10370 | PIN, NOZZLE HOLDER | 09312-10370 |
| 001-003. | [01] | 09312-70280 | SPRING, NOZZLE HOL | 09312-70280 |
| 001-004. | [01] | 09313-10210 | SCREW, ADJUST | 09313-10210 |
| 001-005. | [01] | 09316-40920 | NUT, NOZZLE RETAIN | 09316-40920 |
| 001-006. | [01] | 09313-40350 | NUT, CAP | 09313-40350 |
| 001-007. | [01] | 94918-00152 | SCREW, HOLLOW | |
| 001-008. | [01] | 09324-50052 | WASHER | 09324-50052 |
| 001-009. | [02] | 09022-20080 | WASHER, FUEL PIPE | 09022-20080 |
| 002. | [01] | 09340-00980 | NOZZLE ASSY | 61341-13120 |
Include in #3:
09350-02220
as HOLDER & NOZZLE SE
Include as Nozzle:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09350-02220 | 61341-1330 | HOLDER & NOZZLE SE | |
| 61341-13300 | KOMATSU | HOLDER & NOZZLE SE |
Information:
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The new and former rocker arm base assembly is listed in Table 1.Note: The 568-8215 Rocker Arm Base As has the following serviceable components.
Table 1
Required Parts
Qty New Part Number Part Name Former Part Number(1)
1 568-8215 Rocker Arm Base As 121-2024
2 261-0195 Hollow Dowel 8N-4387
1 567-2901 Spacer N/A
1 567-2902 Spacer N/A
3 6V-6228 O-Ring Seal N/A
1 240-7032 Seal N/A
(1) The former part number listed is for reference only and may differ.
Illustration 1 g06562147
(1) 567-2901 Spacer
(2) 6V-6228 O-Ring Seal
(3) 567-2902 Spacer
Illustration 2 g06562161
(4) 240-7032 Seal
(5) 261-0195 Hollow Dowel
Illustration 3 g06562155
(6) 568-8215 Rocker Arm Base As
(7) 121-2024 Base AsNote: Refer to the Illustration 3 to see the differences between the new and former designs.
