Information holder & nozzle se
Rating:
Components :

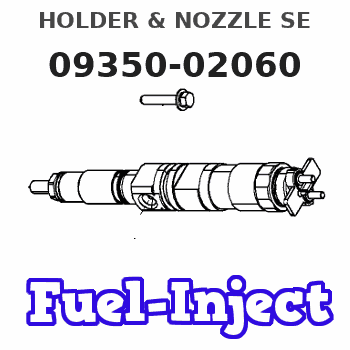

| 001. | HOLDER & NOZZLE SE | 09350-02060 |
Scheme ###:
| 000. | [01] | 09350-02060 | HOLDER & NOZZLE SE | 722-12850-00 |
| 001. | [01] | 09310-02060 | HOLDER ASSY, NOZZL | |
| 001-001. | [01] | 09311-12060 | BODY | |
| 001-002. | [01] | 09312-10030 | PIN, NOZZLE HOLDER | 716-12853-00 |
| 001-003. | [01] | 09312-70020 | SPRING, NOZZLE HOL | 716-12854-00 |
| 001-004. | [01] | 09316-40800 | NUT, NOZZLE RETAIN | |
| 001-006. | [01] | 09317-40011 | DISTANCE PIECE | 716-12855-00 |
| 001-007. | [1C] | 09317-51210 | WASHER | 722-12859-30 |
| 001-007. | [1C] | 09317-51220 | WASHER | 722-12859-40 |
| 001-007. | [1C] | 09317-51230 | WASHER | 722-12859-50 |
| 001-007. | [1C] | 09317-51240 | WASHER | 722-12859-60 |
| 001-007. | [1C] | 09317-51250 | WASHER | 722-12859-70 |
| 001-007. | [1C] | 09317-51260 | WASHER | 722-12859-80 |
| 001-007. | [1C] | 09317-51200 | WASHER | 722-12859-20 |
| 001-007. | [1C] | 09317-51190 | WASHER | 722-12859-10 |
| 001-007. | [1C] | 09317-50640 | WASHER | 716-12859-40 |
| 001-007. | [1C] | 09317-50210 | WASHER | 716-12859-50 |
| 001-007. | [1C] | 09317-50220 | WASHER | 716-12859-60 |
| 001-007. | [1C] | 09317-50230 | WASHER | 716-12859-70 |
| 001-007. | [1C] | 09317-50610 | WASHER | 716-12859-10 |
| 001-007. | [1C] | 09317-50620 | WASHER | 716-12859-20 |
| 001-007. | [1C] | 09317-50630 | WASHER | 716-12859-30 |
| 001-008. | [01] | 09326-60080 | FLANGE | |
| 001-011. | [01] | 94918-00152 | SCREW, HOLLOW | 716-12856-00 |
| 001-013. | [02] | 94901-81020 | WASHER, COPPER PLA | 716-12845-00 |
| 002. | [01] | 09340-00200 | NOZZLE ASSY | 722-12862-00 |
Include in #3:
09350-02060
as HOLDER & NOZZLE SE
Cross reference number
| Part num | Firm num | Firm | Name |
| 09350-02060 | 722-12850- | HOLDER & NOZZLE SE | |
| 722-12850-00 | YAMAHA | HOLDER & NOZZLE SE |
