Information pump assy, injecti
Nozzle:
0935002520
Rating:
KIT List:
| Body assy, injecti | 1904400320 |
| Timer assy, automa | 0918030050 |
| Pump assy, fuel fe | 1922900060 |
| Governor assy, mec | 1908900170 |
Components :
| 001. | PUMP ASSY, INJECTI | 09300-06040 |
| 001. | PUMP ASSY, INJECTI | 09300-06040 |
| 002. | BODY ASSY, INJECTI | 09010-09800 |
| 003. | TIMER ASSY, AUTOMA | 09180-02940 |
| 004. | PUMP ASSY, FUEL FE | 09210-01540 |
| 005. | GOVERNOR ASSY, MEC | 19080-06020 |

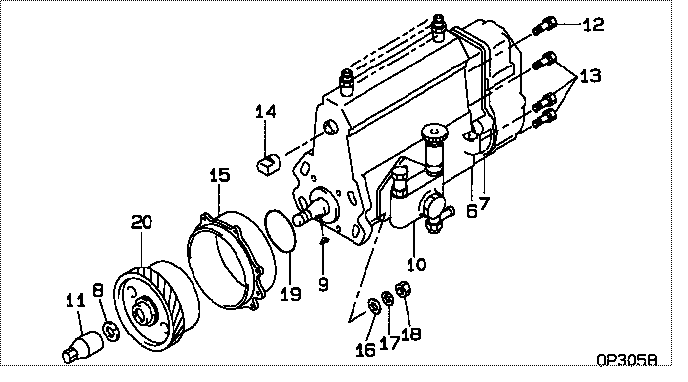

Scheme ###:
| 000. | [01] | 09300-06040 | PUMP ASSY, INJECTI | ME217118 |
| 006. | [01] | 09010-09800 | BODY ASSY, INJECTI | ME728935 |
| 007. | [01] | 19080-06020 | GOVERNOR ASSY, MEC | ME743376 |
| 008. | [01] | 94901-40210 | WASHER, COUNTERSUN | ME702043 |
| 009. | [01] | 94913-00210 | KEY, WOODRUFF | ME702047 |
| 010. | [01] | 09210-01540 | PUMP ASSY, FUEL FE | ME703397 |
| 011. | [01] | 09001-20220 | NUT, TIMER ROUND | ME702033 |
| 012. | [01] | 91518-08221 | BOLT, W/WASHER | MM500963 |
| 013. | [06] | 91418-06161 | BOLT, W/WASHER | ME702149 |
| 014. | [01] | 09001-80090 | COVER, CONTROL RAC | ME702251 |
| 015. | [01] | 09006-00320 | COVER SUB-ASSY, TI | ME703649 |
| 016. | [04] | 94901-15020 | WASHER, STEEL PLAT | MH005068 |
| 017. | [04] | 90258-10001 | WASHER, SPRING | MC327716 |
| 018. | [04] | 91266-10081 | NUT, HEXAGON | MF430122 |
| 019. | [01] | 94914-02840 | O-RING | MH035502 |
| 020. | [01] | 09180-02940 | TIMER ASSY, AUTOMA | ME728245 |
Include in #3:
09300-06040
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09300-06040 | ME217118 | PUMP ASSY, INJECTI | |
| ME217118 | MITSUBISHI | PUMP ASSY, INJECTI |
Information:
4. Minimum permissible depth to machine counterbore to adjust cylinder liner projection ... .030 in.(0.76 mm) Maximum permissible depth to machine counterbore to adjust cylinder liner projection ... .045 in.(1.14 mm)Install a .030 in. (0.76 mm) shim plus any added shims necessary to get the correct cylinder liner projection. Be sure that the .030 in. (0.76 mm) shim is directly under the cylinder liner flange.Put 7M7260 Liquid Gasket on the top of the top shim and on the bottom of the bottom shim before installing.(1) Crossbar (from 8B7548 Puller).(2) Spacer plate.(3) S1589 Bolt with two 1S379 Washers.(4) 1D4595 Bolt.(5) 3H465 Plate.(6) 1P2403 Dial Indicator.(7) 1P2394 Adapter Plate.(8) 1P2402 Gauge Body.
