Information pump assy, injecti
Nozzle:
0935005790
Rating:
KIT List:
| Pump assy, fuel fe | 1922900060 |
| Body assy, injecti | 1904400320 |
| Governor assy, mec | 1908900170 |
Components :
| 001. | PUMP ASSY, INJECTI | 09300-04940 |
| 002. | PUMP ASSY, FUEL FE | 09210-02750 |
| 003. | BODY ASSY, INJECTI | 19010-00400 |
| 004. | GOVERNOR ASSY, MEC | 19080-04400 |

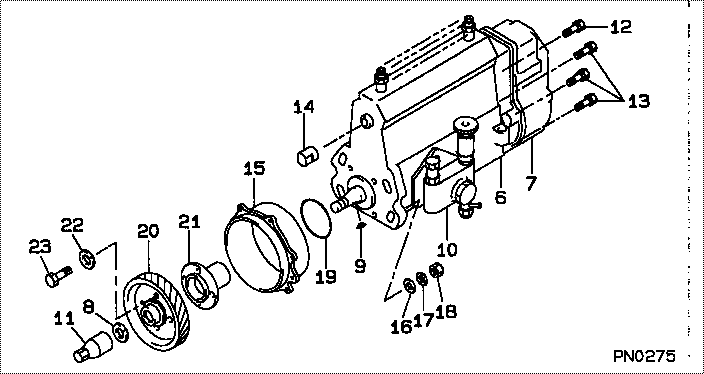

Scheme ###:
| 000. | [01] | 09300-04940 | PUMP ASSY, INJECTI | ME080697 |
| 006. | [01] | 19010-00400 | BODY ASSY, INJECTI | ME736218 |
| 007. | [01] | 19080-04400 | GOVERNOR ASSY, MEC | ME736219 |
| 008. | [01] | 94901-40210 | WASHER, COUNTERSUN | ME702043 |
| 009. | [01] | 94913-00210 | KEY, WOODRUFF | ME702047 |
| 010. | [01] | 09210-02750 | PUMP ASSY, FUEL FE | ME736121 |
| 011. | [01] | 09001-20220 | NUT, TIMER ROUND | ME702033 |
| 012. | [01] | 91518-08221 | BOLT, W/WASHER | MM500963 |
| 013. | [06] | 91418-06161 | BOLT, W/WASHER | ME702149 |
| 014. | [01] | 09001-80090 | COVER, CONTROL RAC | ME702251 |
| 015. | [01] | 09006-00320 | COVER SUB-ASSY, TI | ME703649 |
| 016. | [04] | 94901-15020 | WASHER, STEEL PLAT | MH005068 |
| 017. | [04] | 90258-10001 | WASHER, SPRING | MC327716 |
| 018. | [04] | 91266-10081 | NUT, HEXAGON | MF430122 |
| 019. | [01] | 94914-02840 | O-RING | MH035502 |
| 020. | [01] | 09185-10330 | GEAR, TIMER DRIVIN | ME728032 |
| 021. | [01] | 09255-10681 | BLOCK, COUPLING | ME736122 |
| 022. | [04] | 90258-08001 | WASHER, SPRING | MB239626 |
| 023. | [04] | 94904-04471 | BOLT, HEXAGON | ME702248 |
Include in #3:
09300-04940
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09300-04940 | ME080697 | PUMP ASSY, INJECTI | |
| ME080697 | MITSUBISHI | PUMP ASSY, INJECTI |
Information:
Termination Date
October 31, 1993Problem
Certain 2S7264 and 3S1467 Fuel Injection Pump Assemblies need to be removed from parts stock.
Action Required
Remove all 2S7264 and 3S1467 Fuel Injection Pump Assemblies from parts stock with date codes of December 1992 through March 1993. The date code appears at the bottom of the part number label on the pump box. The first two numbers indicate the month and the next two numbers indicate the year as shown in the example below:
Service Claim Allowances
Submit one claim for all 2S7264 and 3S1467 Fuel Injection Pump Assemblies removed from parts stock.
US and Canadian Dealers Only - When submitting a parts stock claim use 99Z00007 in the Product Identification Number Field.
Parts Disposition
U.S. And Canadian Dealers
Return all 2S7264 and 3S1467 Fuel Injection Pump Assemblies that are removed from parts stock and a copy of the claim to:
Caterpillar Inc.
Memory Lane
B Receiving
York, PA 17402
Attention: Quality Dept./PI7318
All Other Dealers
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
October 31, 1993Problem
Certain 2S7264 and 3S1467 Fuel Injection Pump Assemblies need to be removed from parts stock.
Action Required
Remove all 2S7264 and 3S1467 Fuel Injection Pump Assemblies from parts stock with date codes of December 1992 through March 1993. The date code appears at the bottom of the part number label on the pump box. The first two numbers indicate the month and the next two numbers indicate the year as shown in the example below:
Service Claim Allowances
Submit one claim for all 2S7264 and 3S1467 Fuel Injection Pump Assemblies removed from parts stock.
US and Canadian Dealers Only - When submitting a parts stock claim use 99Z00007 in the Product Identification Number Field.
Parts Disposition
U.S. And Canadian Dealers
Return all 2S7264 and 3S1467 Fuel Injection Pump Assemblies that are removed from parts stock and a copy of the claim to:
Caterpillar Inc.
Memory Lane
B Receiving
York, PA 17402
Attention: Quality Dept./PI7318
All Other Dealers
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
