09300-04100 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935002540
09300-04100 PUMP ASSY, INJECTI
Rating:
26
Buy PUMP ASSY, INJECTI 09300-04100 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400320
Timer assy, automa 0918030050
Pump assy, fuel fe 1922900060
Governor assy, mec 1908900170

Components :

001. PUMP ASSY, INJECTI 09300-04100
002. BODY ASSY, INJECTI 09010-05391
003. TIMER ASSY, AUTOMA 09180-02320
004. PUMP ASSY, FUEL FE 09210-01510
005. GOVERNOR ASSY, MEC 19080-03590

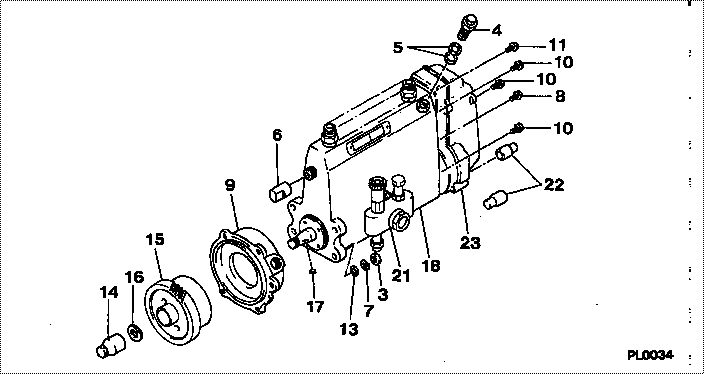

Scheme ###:

000. [01] 09300-04100 PUMP ASSY, INJECTI 22030-2590
000. [01] 09300-04100 PUMP ASSY, INJECTI S2203-02590
003. [04] 91266-10081 NUT, HEXAGON 22825-1490A
004. [01] 09031-00240 VALVE ASSY, OVERFL 22107-1290A
005. [02] 94901-02480 WASHER 22847-1940A
006. [01] 09001-80120 COVER, CONTROL RAC 22371-1170A
007. [04] 90258-10001 WASHER, SPRING 28219-1120A
008. [01] 91418-06141 BOLT, W/WASHER 22815-1480A
009. [01] 09006-00150 COVER SUB-ASSY, TI 22825-1470A
010. [05] 91418-06161 BOLT, W/WASHER 22815-1380A
011. [01] 91518-08221 BOLT, W/WASHER 22815-1190A
013. [04] 94901-15020 WASHER, STEEL PLAT 22877-1551A
014. [01] 09001-20220 NUT, TIMER ROUND 22511-1060A
015. [01] 09180-02320 TIMER ASSY, AUTOMA 22510-2010A
016. [01] 94901-40210 WASHER, COUNTERSUN 22867-1320A
017. [01] 90458-04051 KEY, WOODRUFF 22895-1080A
018. [01] 09010-05391 BODY ASSY, INJECTI 22110-1980B
021. [01] 09210-01510 PUMP ASSY, FUEL FE 22570-1240A
022. [02] 09028-50030 CAP 22323-1210A
023. [01] 19080-03590 GOVERNOR ASSY, MEC

Include in #3:

09300-04100 as PUMP ASSY, INJECTI
09300-04100

Cross reference number



Part num Firm num Firm Name
09300-04100  22030-2590  PUMP ASSY, INJECTI
22030-2590    HINO PUMP ASSY, INJECTI
S2203-02590    HINO PUMP ASSY, INJECTI




Information:

2. Remove the four bolts (2) that hold flange to aftercooler cover. Loosen clamp (6) on the turbocharger, and turn housing until inlet pipe is away from camshaft housing.3. Remove the oil drain line for the turbocharger.4. Disconnect the wiring from the glow plugs.5. Remove the inner fuel injection lines (4).6. Disconnect the outer fuel injection lines from the camshaft housing.7. Disconnect the wiring (3) for the glow plugs from the camshaft housing.8. Remove lifting bracket (1) from housing. 9. Remove the two bolts (7), nuts (8), and locks.10. Remove the bolts (5) that hold the camshaft housing in position. 11. Fasten a hoist to the camshaft housing. Remove camshaft housing (9). Weight of housing is 100 lb. (45 kg).Install Camshaft Housing
1. Turn all adjustment screws counterclockwise as far as possible to get maximum valve lash. Turn the camshafts until the "V" timing marks on drive gears (2) and (3) are in alignment as shown. Install the timing pin in timing hole in camshaft housing.2. Check to be sure the No. 1 piston is at the "TOP CENTER COMPRESSION" position, and the timing bolt is installed in flywheel.
The procedure in Steps 1 and 2 must be followed or damage to the engine may result.
3. Fasten a hoist and put camshaft housing in position on engine with gear (3) engaged with gear (4) in cylinder head. Install the bolts (1), nuts, and locks that hold the camshaft housing in position. Install lifting bracket (5).4. Connect the fuel injection lines to outside of camshaft housing. Install inner lines. Tighten the nuts on lines to 30 5 lb.ft. (4.1 0.7 mkg).5. Remove the timing pin from camshaft housing and timing bolt from flywheel.6. Make the valve lash adjustment as follows: Make an adjustment to exhaust valves for cylinders 1-3-5 and inlet valves for cylinders 1-2-4. Turn the crankshaft 360° so No. 6 piston is at "TOP CENTER COMPRESSION" position. Make an adjustment to exhaust valves for cylinders 2-4-6 and inlet valves for cylinders 3-5-6.a) Turn screws clockwise until there is zero clearance between the button on screw and the valve.b) Turn screws counterclockwise four clicks to get .008 in. (0.2 mm) clearance for the inlet valves.c) Turn screws counterclockwise ten clicks to get .020 in. (0.5 mm) clearance for the exhaust valves.7. Connect the wiring for the glow plugs. Install the oil drain line for the turbocharger.8. Turn the housing to put pipe (6) into position, and install the four bolts. Tighten clamp (7).end by: a) install valve coverb) install alternatorDisassemble Camshaft Housing
start by: a) remove camshaft housing 1. Remove the four bolts (3) and lock from each drive gear. Remove the camshaft drive gears (1) and (2). 2. Remove the two bolts (5), lock, and plate (4) that hold camshafts in position. 3. Remove the inlet camshaft (6) and exhaust camshaft (7) from housing.4. Remove lifting bracket (8) from end of camshaft housing. 5. Remove the two bolts (11) that hold the rocker shafts in position.6. Remove the
