Information pump assy, injecti
Nozzle:
0935003970
Rating:
KIT List:
| Body assy, injecti | 1904400320 |
| Pump assy, fuel fe | 1922900060 |
| Governor assy, mec | 1908900170 |
Components :
| 001. | PUMP ASSY, INJECTI | 09300-03530 |
| 002. | BODY ASSY, INJECTI | 09010-09000 |
| 003. | PUMP ASSY, FUEL FE | 09210-01540 |
| 004. | GOVERNOR ASSY, MEC | 19080-02990 |

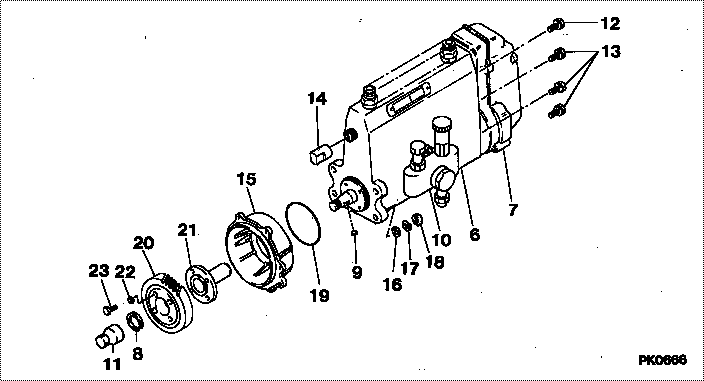

Scheme ###:
| 000. | [01] | 09300-03530 | PUMP ASSY, INJECTI | ME080486 |
| 006. | [01] | 09010-09000 | BODY ASSY, INJECTI | ME728244 |
| 007. | [01] | 19080-02990 | GOVERNOR ASSY, MEC | ME728238 |
| 008. | [01] | 94901-40210 | WASHER, COUNTERSUN | ME702043 |
| 009. | [01] | 94913-00210 | KEY, WOODRUFF | ME702047 |
| 010. | [01] | 09210-01540 | PUMP ASSY, FUEL FE | ME703397 |
| 011. | [01] | 09001-20220 | NUT, TIMER ROUND | ME702033 |
| 012. | [01] | 91518-08221 | BOLT, W/WASHER | MM500963 |
| 013. | [06] | 91418-06161 | BOLT, W/WASHER | ME702149 |
| 014. | [01] | 09001-80090 | COVER, CONTROL RAC | ME702251 |
| 015. | [01] | 09006-00320 | COVER SUB-ASSY, TI | ME703649 |
| 016. | [04] | 94901-15020 | WASHER, STEEL PLAT | MH005068 |
| 017. | [04] | 90258-10001 | WASHER, SPRING | MC327716 |
| 018. | [04] | 91266-10081 | NUT, HEXAGON | MF430122 |
| 019. | [01] | 94914-02840 | O-RING | MH035502 |
| 020. | [01] | 09185-10330 | GEAR, TIMER DRIVIN | ME728032 |
| 021. | [01] | 09255-10412 | BLOCK, COUPLING | ME017724 |
| 022. | [04] | 90258-08001 | WASHER, SPRING | MB239626 |
| 023. | [04] | 94904-04471 | BOLT, HEXAGON | ME702248 |
Include in #3:
09300-03530
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09300-03530 | ME080486 | PUMP ASSY, INJECTI | |
| ME080486 | MITSUBISHI | PUMP ASSY, INJECTI |
