Information pump assy, injecti
Nozzle:
0935004550
Rating:
KIT List:
| Body assy, injecti | 1904400320 |
| Governor assy, mec | 1908900271 |
| Timer assy, automa | 0918030050 |
| Pump assy, fuel fe | 1922900060 |
Components :
| 001. | PUMP ASSY, INJECTI | 09300-03390 |
| 002. | BODY ASSY, INJECTI | 09010-09060 |
| 003. | GOVERNOR ASSY, MEC | 09130-03122 |
| 004. | COVER ASSY, GOVERN | 09145-00891 |
| 005. | COMPENSATOR SUB-AS | 19260-00360 |
| 006. | TIMER ASSY, AUTOMA | 09180-02842 |
| 007. | PUMP ASSY, FUEL FE | 09210-02000 |

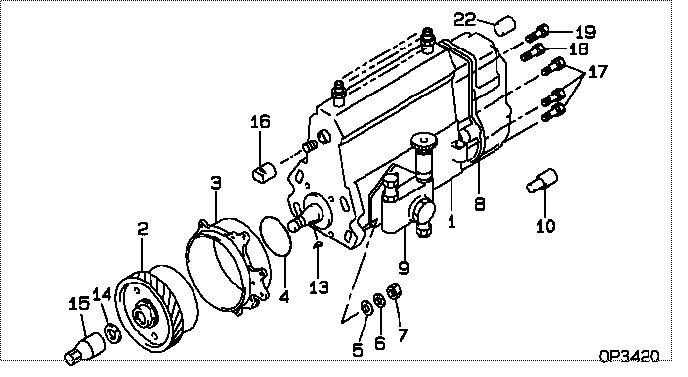

Scheme ###:
| 000. | [01] | 09300-03390 | PUMP ASSY, INJECTI | ME006259 |
| 001. | [01] | 09010-09060 | BODY ASSY, INJECTI | ME728226 |
| 002. | [01] | 09180-02842 | TIMER ASSY, AUTOMA | ME728154 |
| 003. | [01] | 09006-00300 | COVER SUB-ASSY, TI | ME703445 |
| 004. | [01] | 94914-02840 | O-RING | MH035502 |
| 005. | [04] | 94901-15020 | WASHER, STEEL PLAT | MH005068 |
| 006. | [04] | 90258-10001 | WASHER, SPRING | MC327716 |
| 007. | [04] | 91266-10081 | NUT, HEXAGON | MF430122 |
| 008. | [01] | 09130-03122 | GOVERNOR ASSY, MEC | ME728183 |
| 009. | [01] | 09210-02000 | PUMP ASSY, FUEL FE | ME703447 |
| 010. | [01] | 09028-50021 | CAP | ME035845 |
| 013. | [01] | 94913-00210 | KEY, WOODRUFF | ME702047 |
| 014. | [01] | 94901-40210 | WASHER, COUNTERSUN | ME702043 |
| 015. | [01] | 09001-20220 | NUT, TIMER ROUND | ME702033 |
| 016. | [01] | 09001-80061 | COVER, CONTROL RAC | ME728161 |
| 017. | [05] | 94904-72690 | BOLT, W/WASHER | ME702045 |
| 018. | [01] | 91418-06201 | BOLT, W/WASHER | ME702041 |
| 019. | [01] | 94904-73910 | BOLT, W/WASHER | ME703449 |
| 022. | [01] | 09028-50040 | CAP | ME703677 |
Include in #3:
09300-03390
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09300-03390 | ME006259 | PUMP ASSY, INJECTI | |
| ME006259 | MITSUBISHI | PUMP ASSY, INJECTI |
