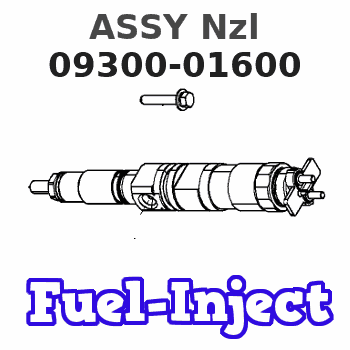

Information assy nzl
Nozzle:
0935002540
Rating:
KIT List:
| Body assy, injecti | 1904400320 |
| Governor assy, mec | 1908900271 |
| Timer assy, automa | 0918030050 |
| Pump assy, fuel fe | 1922900060 |
Cross reference number
| Part num | Firm num | Firm | Name |
| 09300-01600 | ASSY Nzl | ||
| 22010-4700 | HINO | PUMP ASSY, INJECTI |
