09300-01101 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

09300-01101 PUMP ASSY, INJECTI
Rating:
43
Buy PUMP ASSY, INJECTI 09300-01101 genuine, new aftermarket engine parts with delivery

Components :

001. PUMP ASSY, INJECTI 09300-01101
002. BODY ASSY, INJECTI 09010-06011
003. GOVERNOR ASSY, MEC 09130-01000
004. TIMER ASSY, AUTOMA 09180-01540
005. PUMP ASSY, FUEL FE 09210-00971

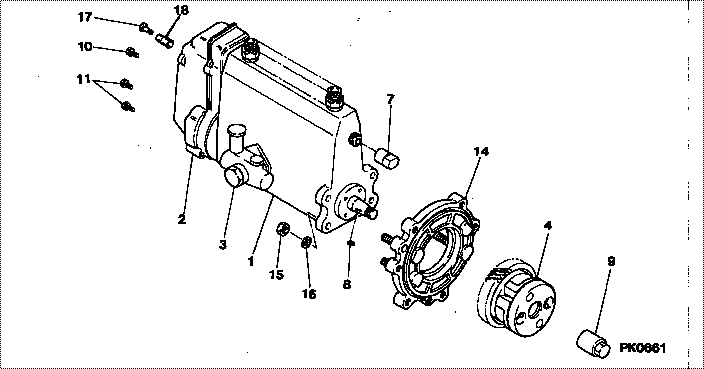

Scheme ###:

000. [01] 09300-01101 PUMP ASSY, INJECTI 22010-68130
001. [01] 09010-06011 BODY ASSY, INJECTI 22120-68130
002. [01] 09130-01000 GOVERNOR ASSY, MEC 22410-68110
003. [01] 09210-00971 PUMP ASSY, FUEL FE 22510-77130
004. [01] 09180-01540 TIMER ASSY, AUTOMA 22610-68011
007. [01] 09001-80081 COVER, CONTROL RAC
008. [01] 94913-00050 KEY, WOODRUFF 90099-13002
009. [01] 09001-20260 NUT, TIMER ROUND 22611-68010
010. [02] 91418-06201 BOLT, W/WASHER 90091-20608
011. [04] 94904-72690 BOLT, W/WASHER 90099-04319
014. [01] 09006-00100 COVER SUB-ASSY, TI 22812-68010
015. [04] 91266-10081 NUT, HEXAGON 94110-41000
016. [04] 94901-15020 WASHER, STEEL PLAT 90099-01468
017. [01] 94904-73910 BOLT, W/WASHER 90099-04346
018. [01] 09028-50050 CAP

Include in #3:

09300-01101 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09300-01101  22010-6813  PUMP ASSY, INJECTI




Information:


14Dec2018
(Revised 20Jul2020)
U-711
After Failure Only
PRODUCT SUPPORT PROGRAM FOR REPLACING THE DEF INJECTOR IF REQUIRED ON CERTAIN CB64B, CB13, CB66B, CB15, CB68B, AND CB16 ASPHALT COMPACTORS
108I 1920 7610 PS53935
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Program can only be administered after a failure occurs.The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS53935" as the Part Numberand "7755" as the Group Number. Use "96" as the Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 14Dec2018 (Revised 27Mar2020) Service Letter. Changes have been made to the Problem.
TERMINATION DATE
31Dec2020
PROBLEM
Certain CB64B, CB13, CB66B, CB15, CB68B, CB16 Asphalt Compactors may have a problem with the DEF injector 459-7216. The internal seals within the DEF Injector may fail and allow DEF to leak into the injectors electrical connector housing. Once DEF enters the electrical housing and contacts the electrical pins a DEF Dosing current fault is triggered. This is usually accompanied by an external DEF leak being seen in and around the injectors electrical connector. DEF Dosing Unit/Actuator Diagnostic Trouble Codes (3361/3821) can be triggered which can lead to a system inducement.
AFFECTED PRODUCT
Model Identification Number
CB13 PWP00113-00218
CB15 M9400110-00144
CB16 HP500101-00105
CB64B C5600120, 122, 124, 126, 128, 133, 140, 143-144, 147-149, 151-152, 157, 159-161, 164, 166, 168-172, 175-177, 180-181, 192-193, 195, 199-201, 205, 208, 214-215, 222, 224, 233-234, 244, 247, 249, 254-255, 260, 268, 272, 275, 279, 283, 286, 289, 292-293, 297-299, 303, 307, 309, 312, 319, 321, 329-334, 337-338, 342-343, 348, 355-357, 360, 367, 370, 375-376, 378, 381, 386, 390, 394, 398-399, 401, 406, 408, 410, 412-414, 416, 419-420, 425-426, 429, 431, 433, 437-438
CB66B B6600101, 104, 106-108, 114, 116, 119-120, 124, 126-127, 129, 132, 135, 137-138, 141-144, 146-148, 150-151, 155, 157-158, 170-171, 179-180, 185-186, 189, 192-193, 203-204, 206-208, 211-212, 216, 229-232, 235-236, 238-240, 243-244, 246, 256, 261-263, 268, 271, 275, 278-279, 282, 284, 289-290, 292, 297-298, 305-306, 308-309, 313, 315-317
CB68B C6800101-00102, 105, 108-110, 114, 117-123, 126, 129, 131, 141, 146, 148
PARTS NEEDED
Qty
Part Number Description
1 4716029 MTG GP-INJECTOR
1 ENGSOFTWARE ENGINE SOFTWARE
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 1% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
