Information coupling assy
Rating:

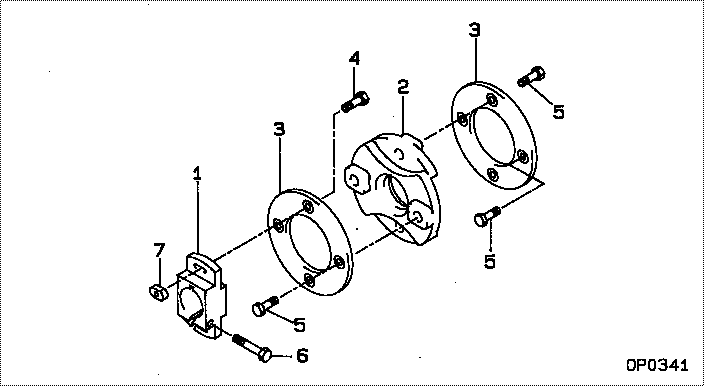

Scheme ###:
| 000. | [01] | 09250-00870 | COUPLING ASSY | |
| 001. | [01] | 09241-50741 | FLANGE, COUPLING | |
| 002. | [01] | 09243-70340 | COUPLING, CROSS | |
| 003. | [02] | 09246-00051 | PLATE SUB-ASSY, CO | 22601-1200A |
| 004. | [02] | 94904-06640 | BOLT, HEXAGON | 22815-2580A |
| 005. | [06] | 94904-06630 | BOLT, HEXAGON | 22815-2860A |
| 006. | [01] | 09243-30160 | BOLT, HEXAGON | 22815-2870A |
| 007. | [02] | 09243-10130 | NUT, COUPLING FLAN | 22825-1960A |
| 007. | [02] | 09243-10181 | NUT, COUPLING FLAN |
Include in #3:
09200-00021
as COUPLING ASSY
09250-00870
Cross reference number
| Part num | Firm num | Firm | Name |
| 09250-00870 | COUPLING ASSY |
