Information coupling assy
Rating:
Scheme ###:

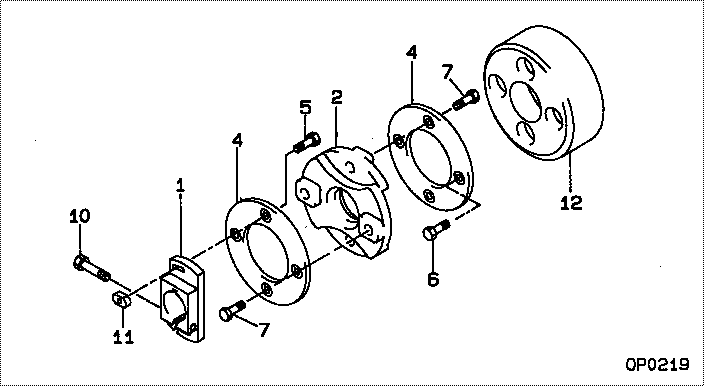

| 000. | [01] | 09250-00441 | COUPLING ASSY | |
| 001. | [01] | 09241-50451 | FLANGE, COUPLING | |
| 002. | [01] | 09243-70200 | COUPLING, CROSS | |
| 002. | [01] | 09243-70270 | COUPLING, CROSS | |
| 004. | [02] | 09246-00051 | PLATE SUB-ASSY, CO | |
| 005. | [02] | 94904-06640 | BOLT, HEXAGON | |
| 006. | [02] | 94904-06361 | BOLT, HEXAGON | |
| 006. | [06] | 94904-06361 | BOLT, HEXAGON | |
| 007. | [04] | 94904-06630 | BOLT, HEXAGON | |
| 010. | [01] | 09243-30150 | BOLT, HEXAGON | |
| 011. | [02] | 09243-10130 | NUT, COUPLING FLAN | |
| 011. | [02] | 09243-10181 | NUT, COUPLING FLAN | |
| 012. | [01] | 09255-10430 | BLOCK, COUPLING |
