Information pump sub-assy, pri
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below
2PCS hand pump 092130-0050 Diesel Engines Part Fuel Pump Hand Pump 092130-0050 Primer pump priming pump For 4HK1 - (Color: 2PCS)
Generic Color: 2PCS
Generic Color: 2PCS
You can express buy:
USD 61.91
31-08-2022
31-08-2022

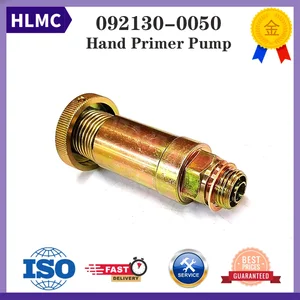

hand primer 092130-0050
USD 3.35
05-03-2019
05-03-2019
BASCOLIN Brand Hand Primer Pump 092130-0050
Include in #3:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09213-00050 | 22501-7702 | PUMP SUB-ASSY, PRI | |
| 6 056 1500 50 | HINO | PUMP SUB-ASSY, PRI | |
| 34561-07090 | MITSUBISHI | PUMP SUB-ASSY, PRI | |
| 22501-77020-000 | DAIHATSU | PUMP SUB-ASSY, PRI | |
| 22501-77020 | TOYOTA | PUMP SUB-ASSY, PRI | |
| 22501-77020 | TICO | PUMP SUB-ASSY, PRI | |
| 15109-52081 | KUBOTA | PUMP SUB-ASSY, PRI | |
| 09213-00050 | MITSUBISHI | PUMP SUB-ASSY, PRI | |
| 09213-00050 | KOMATSU | PUMP SUB-ASSY, PRI |
Information:
1. Open the bleed valve on the pump housing. 2. Unscrew the hand priming pump plunger until it can be pulled out by hand. 3. Move the plunger in and out until fuel flows, free of air bubbles, from the bleed valve. 4. Close the bleed valve. 5. Push the plunger in and tighten by hand.6. Start the engine and check for leaks.Injection Pumps and Lines
The injection pumps and high pressure lines must be primed if the engine will not start, or runs rough, after priming the filters and pump housing.Each injection pump has a reverse flow check valve. These cannot be opened with hand priming pump pressure. Use the following procedure to prime the injection pumps and lines.
The fuel injection nozzles can be permanently damaged by twisting if only one wrench is used to loosen or tighten the fuel line nuts. Use one wrench to hold the nozzle and another to loosen the nut.
1. Loosen each of the fuel line nuts at the cylinder head end.2. Crank the engine with the starting motor until fuel flows, free of air bubbles, from each of the injection lines. Stop cranking the engine.3. Tighten each of the fuel line nuts to a torque of 41 + 7 N m (30 + 5 lb. ft.). Use a second wrench on the nozzle to prevent damage to it.4. Start the engine and check for leaks.
The injection pumps and high pressure lines must be primed if the engine will not start, or runs rough, after priming the filters and pump housing.Each injection pump has a reverse flow check valve. These cannot be opened with hand priming pump pressure. Use the following procedure to prime the injection pumps and lines.
The fuel injection nozzles can be permanently damaged by twisting if only one wrench is used to loosen or tighten the fuel line nuts. Use one wrench to hold the nozzle and another to loosen the nut.
1. Loosen each of the fuel line nuts at the cylinder head end.2. Crank the engine with the starting motor until fuel flows, free of air bubbles, from each of the injection lines. Stop cranking the engine.3. Tighten each of the fuel line nuts to a torque of 41 + 7 N m (30 + 5 lb. ft.). Use a second wrench on the nozzle to prevent damage to it.4. Start the engine and check for leaks.
