Information pump assy, fuel fe
Rating:
KIT List:
| Pump assy, fuel fe | 1922900070 |
| Pump assy, fuel fe | 1922900070 |
| Pump assy, fuel fe | 1922900070 |
| Pump assy, fuel fe | 1922900070 |
| Pump assy, fuel fe | 1922900070 |
| Pump assy, fuel fe | 1922900070 |
| Pump assy, fuel fe | 1922900070 |
| Pump assy, fuel fe | 1922900070 |
| Pump assy, fuel fe | 1922900070 |
| Pump assy, fuel fe | 1922900070 |
| Pump assy, fuel fe | 1922900070 |

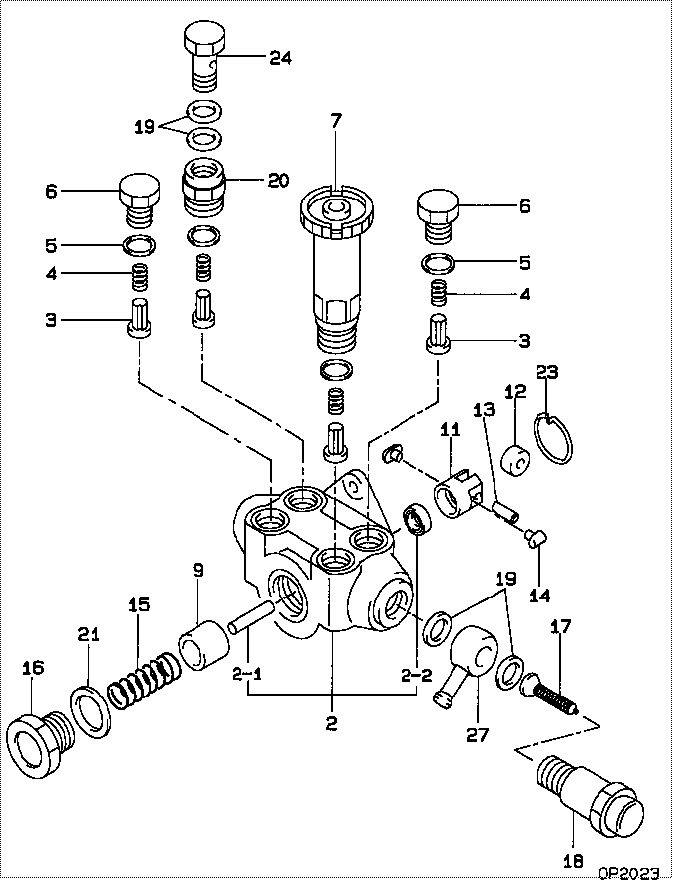

Scheme ###:
| 000. | [01] | 09210-03190 | PUMP ASSY, FUEL FE | S2257-01750-A |
| 002. | [01] | 09212-00760 | HOUSING SUB-ASSY, | S2258-01360-A |
| 002-001. | [01] | 09216-80160 | ROD, FEED PUMP PUS | S2256-51220-A |
| 002-002. | [01] | 94915-02700 | SEAL, OIL | S2282-71700-A |
| 003. | [04] | 09212-10011 | VALVE, FEED PUMP C | S2256-31041-A |
| 004. | [04] | 09212-40010 | SPRING, FEED PUMP | S2256-21020-A |
| 005. | [04] | 09212-50010 | GASKET, CHECK VALV | S2284-71680-A |
| 006. | [02] | 09212-60010 | PLUG, FEED PUMP CH | S2284-51350-A |
| 007. | [01] | 09213-00220 | PUMP SUB-ASSY, PRI | 22509-1160A |
| 007. | [01] | 09213-00360 | PUMP SUB-ASSY, PRI | S2250-91370-A |
| 009. | [01] | 09217-10011 | PISTON, FEED PUMP | S2256-61200-A |
| 011. | [01] | 09217-40070 | TAPPET, FEED PUMP | S2256-81270-A |
| 012. | [01] | 09217-60050 | ROLLER, FEED PUMP | 22569-1130A |
| 013. | [01] | 09217-80030 | PIN, FEED PUMP TAP | 22571-1060A |
| 014. | [02] | 09217-90081 | BLOCK, FEED PUMP T | S2257-21150-A |
| 015. | [01] | 09218-20050 | SPRING, FEED PUMP | S2256-71090-A |
| 016. | [01] | 09218-40021 | PLUG, FEED PUMP PI | S2284-51360-A |
| 017. | [01] | 09222-00040 | FILTER, FEED PUMP | S2257-41040-A |
| 018. | [01] | 09222-30070 | SCREW, FUEL PIPE H | S2283-51370-A |
| 019. | [04] | 94901-02490 | WASHER | S2287-71100-A |
| 020. | [01] | 09212-70040 | SUPPORT, VALVE | 22841-1970A |
| 021. | [01] | 94901-81240 | WASHER, COPPER PLA | S2284-71690-A |
| 023. | [01] | 94907-20940 | RING, SNAP | S2288-71160-A |
| 024. | [01] | 94918-00310 | SCREW, HOLLOW | S2283-51310-A |
| 027. | [01] | 09221-70601 | NIPPLE, SWIVEL | S2257-31120-A |
Include in #3:
09200-03053
as PUMP ASSY, FUEL FE
09210-03190
Cross reference number
| Part num | Firm num | Firm | Name |
| 09210-03190 | S2257-0175 | PUMP ASSY, FUEL FE | |
| 22570-1750A | HINO | PUMP ASSY, FUEL FE | |
| S2257-01750-A | HINO | PUMP ASSY, FUEL FE |
Information:
PELJ1009 CATERPILLAR? ?2009 Caterpillar
PRODUCT LINE ADDITION: REMAN FUEL INJECTORS AND NOZZLES FOR CERTAIN 3126, 3208, 3406, 3412, 3508, 3512, 3516, C9, C15, C18, C32 ENGINES
Announcement
The Caterpillar Reman Products Group announces the introduction of additional remanufactured fuel injectors and nozzles for certain 3126, 3208, 3406, 3412, 3508, 3512, 3516, C9, C15, C18, C32 engines. These fuel injectors and nozzles will provide dealers and customers with additional fuel injector and nozzle replacement and repair options. Refer to the following table for part number details.
New Part Number Reman Part Number Part Description Engine Model Sales Model Application Type
1333896 10R8994 NOZZLE AS 3208 3208 Industrial Direct Injection
1317937 10R8995 NOZZLE AS 3406C 3406C Truck Direct Injection
2399634 10R8992 NOZZLE AS 3412D 3412D Marine Direct Injection
2399633 10R8991 NOZZLE AS 3412D 3412D Marine Direct Injection
1734647 10R8996 INJECTOR GP-FUEL 3126 3126 Marine Mechanical Unit
3126 3126 Industrial Mechanical Unit Table Continued
New Part Number Reman Part Number Part Description Engine Model Sales Model Application Type
1643355 10R8999 INJECTOR GP-FUEL 3126B 3126B Truck
