Information pump assy, fuel fe
Rating:
KIT List:
| Pump assy, fuel fe | 1922900060 |
| Pump assy, fuel fe | 1922900060 |
| Pump assy, fuel fe | 1922900060 |
| Pump assy, fuel fe | 1922900060 |

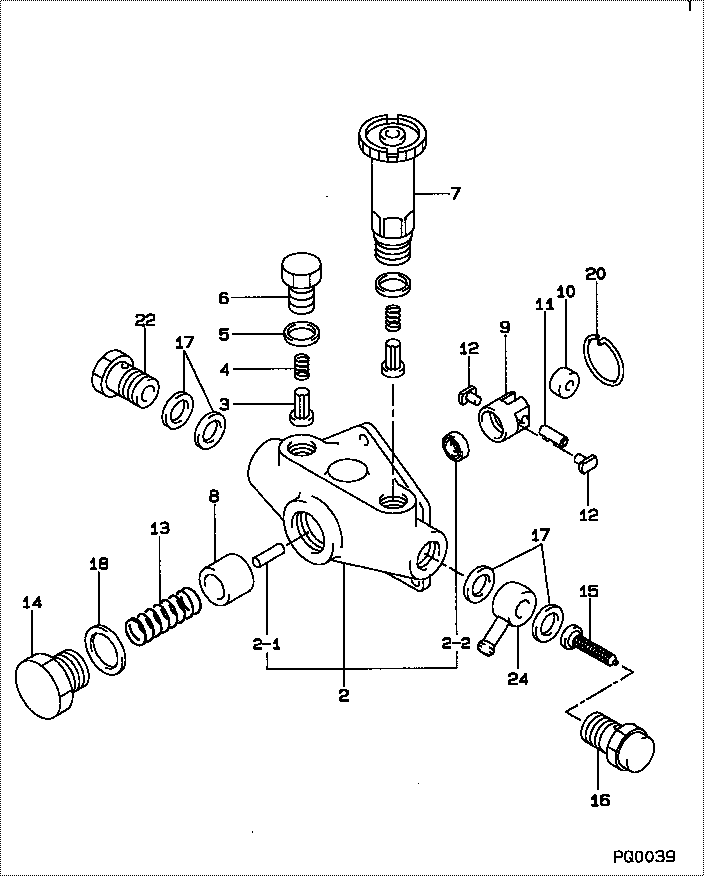

Scheme ###:
| 000. | [01] | 09210-02870 | PUMP ASSY, FUEL FE | 22570-1650 |
| 000. | [01] | 09210-02870 | PUMP ASSY, FUEL FE | |
| 000. | [01] | 09210-02870 | PUMP ASSY, FUEL FE | S2257-01650 |
| 002. | [01] | 09212-00370 | HOUSING SUB-ASSY, | 22580-1210A |
| 002. | [01] | 09212-00370 | HOUSING SUB-ASSY, | |
| 002-001. | [01] | 09216-80150 | ROD, FEED PUMP PUS | |
| 002-001. | [01] | 09216-80150 | ROD, FEED PUMP PUS | 22565-1250A |
| 002-002. | [01] | 94915-02700 | SEAL, OIL | |
| 002-002. | [01] | 94915-02700 | SEAL, OIL | 22827-1700A |
| 003. | [02] | 09212-10011 | VALVE, FEED PUMP C | 22515-77020 |
| 003. | [02] | 09212-10011 | VALVE, FEED PUMP C | 22563-1041A |
| 004. | [02] | 09212-40010 | SPRING, FEED PUMP | 22562-1020A |
| 004. | [02] | 09212-40010 | SPRING, FEED PUMP | 90501-05141 |
| 005. | [02] | 09212-50010 | GASKET, CHECK VALV | 22513-77020 |
| 005. | [02] | 09212-50010 | GASKET, CHECK VALV | 22847-1680A |
| 006. | [01] | 09212-60010 | PLUG, FEED PUMP CH | 22512-77020 |
| 006. | [01] | 09212-60010 | PLUG, FEED PUMP CH | 22845-1350A |
| 007. | [01] | 09213-00220 | PUMP SUB-ASSY, PRI | |
| 007. | [01] | 09213-00220 | PUMP SUB-ASSY, PRI | 22509-1160A |
| 007. | [01] | 09213-00360 | PUMP SUB-ASSY, PRI | 22509-1370A |
| 008. | [01] | 09217-10011 | PISTON, FEED PUMP | 22518-77020 |
| 008. | [01] | 09217-10011 | PISTON, FEED PUMP | 22566-1200A |
| 009. | [01] | 09217-40050 | TAPPET, FEED PUMP | 22524-5C350 |
| 009. | [01] | 09217-40050 | TAPPET, FEED PUMP | 22568-1170A |
| 010. | [01] | 09217-60010 | ROLLER, FEED PUMP | 22569-1110A |
| 010. | [01] | 09217-60010 | ROLLER, FEED PUMP | 22525-77020 |
| 011. | [01] | 09217-80040 | PIN, FEED PUMP TAP | 22526-5C350 |
| 011. | [01] | 09217-80040 | PIN, FEED PUMP TAP | 22571-1090A |
| 012. | [02] | 09217-90070 | BLOCK, FEED PUMP T | 22527-5C350 |
| 012. | [02] | 09217-90070 | BLOCK, FEED PUMP T | 22572-1070A |
| 013. | [01] | 09218-20050 | SPRING, FEED PUMP | |
| 013. | [01] | 09218-20050 | SPRING, FEED PUMP | 22567-1090A |
| 014. | [01] | 09218-40021 | PLUG, FEED PUMP PI | 22521-77020 |
| 014. | [01] | 09218-40021 | PLUG, FEED PUMP PI | 22845-1360A |
| 015. | [01] | 09222-00040 | FILTER, FEED PUMP | 22529-67010 |
| 015. | [01] | 09222-00040 | FILTER, FEED PUMP | 22574-1040A |
| 016. | [01] | 09222-30070 | SCREW, FUEL PIPE H | 22835-1370A |
| 016. | [01] | 09222-30070 | SCREW, FUEL PIPE H | 22535-46010 |
| 017. | [04] | 94901-02490 | WASHER | 90099-01502 |
| 017. | [04] | 94901-02490 | WASHER | 22877-1100A |
| 018. | [01] | 94901-81240 | WASHER, COPPER PLA | 22847-1690A |
| 018. | [01] | 94901-81240 | WASHER, COPPER PLA | 22522-67010 |
| 020. | [01] | 94907-20940 | RING, SNAP | 22887-1160A |
| 020. | [01] | 94907-20940 | RING, SNAP | 22528-77020 |
| 022. | [01] | 94918-00310 | SCREW, HOLLOW | 90099-18010 |
| 022. | [01] | 94918-00310 | SCREW, HOLLOW | 22835-1310A |
| 024. | [01] | 09221-70601 | NIPPLE, SWIVEL | 22573-1120A |
| 024. | [01] | 09221-70601 | NIPPLE, SWIVEL |
Include in #3:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09210-02870 | PUMP ASSY, FUEL FE | ||
| 22570-1650A | HINO | PUMP ASSY, FUEL FE | |
| 22570-1650 | HINO | PUMP ASSY, FUEL FE | |
| S2257-01650 | HINO | PUMP ASSY, FUEL FE | |
| S2257-01650-A | HINO | PUMP ASSY, FUEL FE |
