Information pump assy, fuel fe

Rating:
KIT List:
Pump assy, fuel fe | 1922900060 |
Pump assy, fuel fe | 1922900060 |
Pump assy, fuel fe | 1922900060 |
Pump assy, fuel fe | 1922900060 |

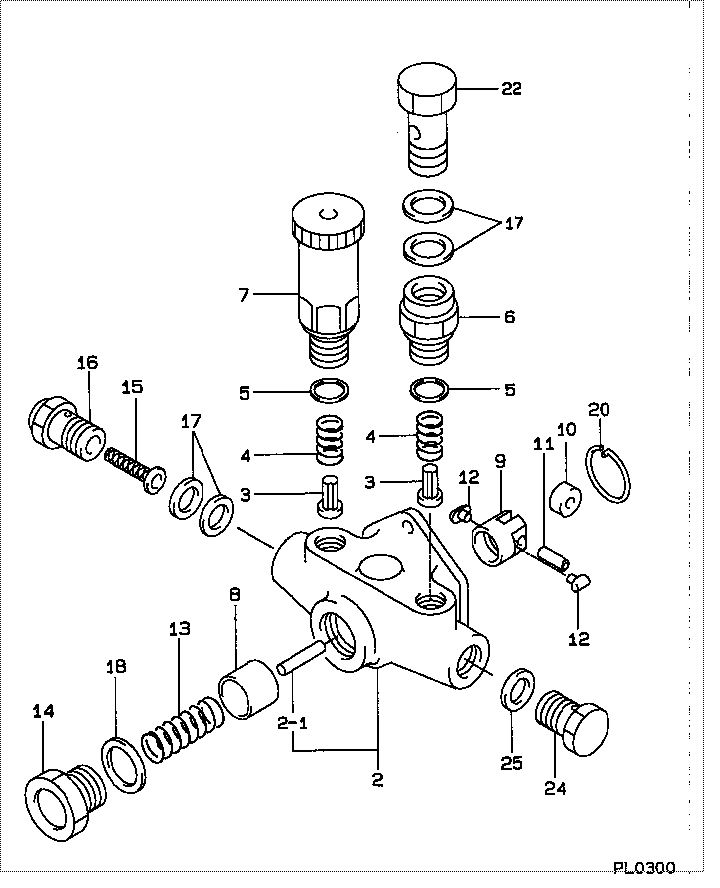

Scheme ###:
000. | [01] | 09210-02760 | PUMP ASSY, FUEL FE | |
002. | [01] | 09212-00290 | HOUSING SUB-ASSY, | |
002-001. | [01] | 09216-80150 | ROD, FEED PUMP PUS | |
002-002. | [01] | 94915-02700 | SEAL, OIL | |
003. | [02] | 09212-10011 | VALVE, FEED PUMP C | |
004. | [02] | 09212-40010 | SPRING, FEED PUMP | |
005. | [02] | 09212-50010 | GASKET, CHECK VALV | 22513-77020 |
006. | [01] | 09212-70010 | SUPPORT, VALVE | |
007. | [01] | 09213-00220 | PUMP SUB-ASSY, PRI | |
008. | [01] | 09217-10011 | PISTON, FEED PUMP | |
009. | [01] | 09217-40030 | TAPPET, FEED PUMP | |
010. | [01] | 09217-60010 | ROLLER, FEED PUMP | |
011. | [01] | 09217-80010 | PIN, FEED PUMP TAP | |
012. | [02] | 09217-90050 | BLOCK, FEED PUMP T | |
013. | [01] | 09218-20020 | SPRING, FEED PUMP | |
014. | [01] | 09218-40021 | PLUG, FEED PUMP PI | |
015. | [01] | 09222-00040 | FILTER, FEED PUMP | |
016. | [01] | 09222-30070 | SCREW, FUEL PIPE H | |
017. | [04] | 09022-20070 | WASHER, FUEL PIPE | 94712-77121 |
018. | [01] | 94901-81240 | WASHER, COPPER PLA | |
020. | [01] | 94907-20940 | RING, SNAP | |
022. | [01] | 94918-00310 | SCREW, HOLLOW | 90099-18010 |
024. | [01] | 09223-50020 | PLUG | |
025. | [01] | 94901-80550 | WASHER, COPPER PLA | |
025. | [01] | 09022-20050 | WASHER, FUEL PIPE | 22125-78601-71 |
Include in #3:
Cross reference number
Part num | Firm num | Firm | Name |
09210-02760 | PUMP ASSY, FUEL FE |
