Information pump assy, fuel fe
Rating:

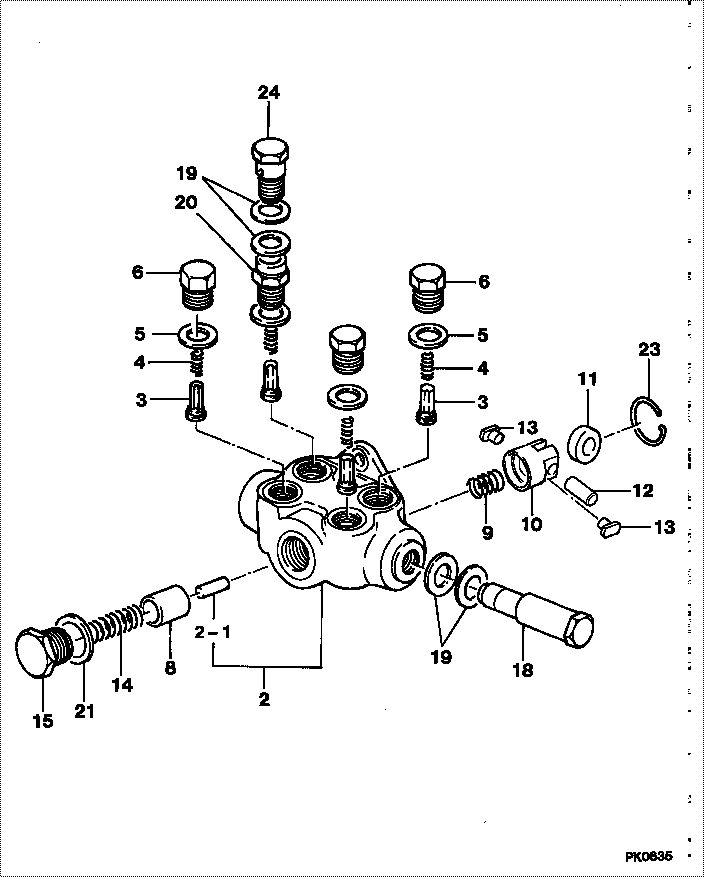

Scheme ###:
| 000. | [01] | 09210-02571 | PUMP ASSY, FUEL FE | |
| 002. | [01] | 09212-00500 | HOUSING SUB-ASSY, | 22564-1180A |
| 002-001. | [01] | 09216-80160 | ROD, FEED PUMP PUS | 22565-1220A |
| 003. | [04] | 09212-10011 | VALVE, FEED PUMP C | 22563-1041A |
| 004. | [04] | 09212-40010 | SPRING, FEED PUMP | 22562-1020A |
| 005. | [04] | 09212-50010 | GASKET, CHECK VALV | 22847-1680A |
| 006. | [03] | 09212-60010 | PLUG, FEED PUMP CH | 22845-1350A |
| 008. | [01] | 09217-10011 | PISTON, FEED PUMP | 22566-1200A |
| 009. | [01] | 09217-30010 | SPRING, FEED PUMP | 22567-1040A |
| 010. | [01] | 09217-40041 | TAPPET, FEED PUMP | 22568-1151A |
| 011. | [01] | 09217-60021 | ROLLER, FEED PUMP | 22569-1070A |
| 012. | [01] | 09217-80030 | PIN, FEED PUMP TAP | 22571-1060A |
| 013. | [02] | 09217-90081 | BLOCK, FEED PUMP T | 22572-1120A |
| 014. | [01] | 09218-20130 | SPRING, FEED PUMP | 22567-1190A |
| 015. | [01] | 09218-40021 | PLUG, FEED PUMP PI | 22845-1360A |
| 018. | [01] | 09222-30080 | SCREW, FUEL PIPE H | 22835-1160A |
| 018. | [01] | 09222-30140 | SCREW, FUEL PIPE H | |
| 019. | [04] | 94901-02490 | WASHER | 22877-1100A |
| 020. | [01] | 09212-70040 | SUPPORT, VALVE | 22841-1970A |
| 021. | [01] | 94901-81240 | WASHER, COPPER PLA | 22847-1690A |
| 023. | [01] | 94907-20940 | RING, SNAP | 22887-1160A |
| 024. | [01] | 94918-00310 | SCREW, HOLLOW | 22835-1310A |
Include in #3:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09210-02571 | PUMP ASSY, FUEL FE |
