09200-04960 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935006650
09200-04960 PUMP ASSY, INJECTI
Rating:
3
Buy PUMP ASSY, INJECTI 09200-04960 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900720
Pump assy, fuel fe 1922900070
Body assy, injecti 1904400380

Components :

001. PUMP ASSY, INJECTI 09200-04960
002. GOVERNOR ASSY, MEC 09130-07180
003. COMPENSATOR SUB-AS 19260-01420
004. TIMER ASSY, AUTOMA 09180-04210
005. PUMP ASSY, FUEL FE 09210-02830
006. COUPLING ASSY 09250-01061
007. BODY ASSY, INJECTI 19010-01820
008. COVER, BEARING 09020-10430

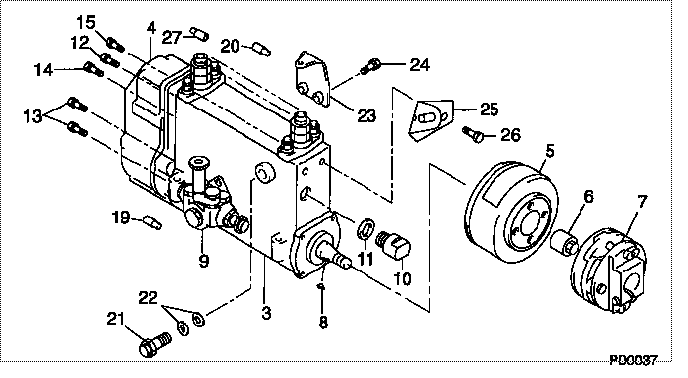

Scheme ###:

000. [01] 09200-04960 PUMP ASSY, INJECTI 22010-9030
003. [01] 19010-01820 BODY ASSY, INJECTI S2211-03700-A
004. [01] 09130-07180 GOVERNOR ASSY, MEC S2231-06890-A
005. [01] 09180-04210 TIMER ASSY, AUTOMA S2251-03090-A
006. [01] 09001-20340 NUT, TIMER ROUND S2282-52240-A
007. [01] 09250-01061 COUPLING ASSY S2261-01860-A
008. [01] 90458-05750 KEY, WOODRUFF S2289-11070-A
009. [01] 09210-02830 PUMP ASSY, FUEL FE S2257-01660-A
010. [01] 09001-80381 COVER, CONTROL RAC S2211-41200-A
011. [01] 94901-81550 WASHER, COPPER PLA SL722-02215
012. [01] 94904-76900 BOLT, W/WASHER S2281-53230-A
013. [04] 94904-76890 BOLT, W/WASHER S2281-53210-A
014. [01] 94904-76910 BOLT, W/WASHER S2281-53240-A
015. [02] 94904-76880 BOLT, W/WASHER S2281-53320-A
019. [01] 09028-50030 CAP S2232-31210-A
020. [01] 09028-50050 CAP S2232-31430-A
021. [01] 09031-00450 VALVE ASSY, OVERFL S2210-71570-A
022. [02] 94901-02480 WASHER S2284-71940-A
023. [01] 09045-30160 STAY, INJECTION PU S1140-91261-A
024. [02] 91418-08351 BOLT, W/WASHER S2281-53380-A
025. [01] 09069-00870 BRACKET SUB-ASSY, 22044-1400A
026. [02] 91808-08121 BOLT, FLANGE S2281-53330-A
027. [01] 09028-50030 CAP S2232-31210-A

Include in #3:

09200-04960 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09200-04960  22010-9030  PUMP ASSY, INJECTI
22010-9030    HINO PUMP ASSY, INJECTI




Information:

November 10, 2003
U-307
A-211
D-227
O-256
TT-24
TM-7
Partsstock action only PRODUCT IMPROVEMENT PROGRAM FOR REMOVINGCERTAIN REMAN FUEL INJECTORS FROM DEALER PART STOCK
7750 PI70071
The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst.TERMINATION DATE
February 29, 2004PROBLEM
Certain fuel injectors need to be removed fromdealer part stock. A number of fuel injectors were built with a Valve OpeningPressure (VOP) spacer that missed a hardening operation. This non-hardenedspacer allows premature wear, causing several operational problems whichmay include: engine misfire, low power, white smoke, and engine would notstart.ACTION REQUIRED
Only remove engine injectors within the suspectdate code range from your parts supply.
In order to perform this inspection, injectorsmust be removed from the packaging.
Repackage all injectors.
Illustration 1 (3406E, C15) Illustration 2 (C10, C12)SERVICE CLAIM ALLOWANCES
Submit one claim for all 0R4667, 0R4893, 0R4894,0R4895, 0R9256, 0R9257, 0R9258, 0R9259, 0R9803, 0R4986, 0R4987, 0R4988,0R7549, 0R8773, 0R8780, and 0R9530 removed from parts stock. Remove onlythose injectors from the suspect serial number range listed below. 0R4667, 0R4893, 0R4894, 0R4895, 0R9256,0R9257, 0R9258, 0R9259, and 0R9803 3406E and C15 injectors should be removedif the serial number is between 318224-371662. 0R4986, 0R4987, 0R4988, 0R7549, 0R8773,0R8780, and 0R9530 C10 and C12 injectors should be removed if the serialnumber is between 34768-47935.PARTS DISPOSITION
These remanufactured parts need to be returnedwith dealer normal core returns in order to allow for core deposit refund.
