Information pump assy, injecti
Nozzle:
0935005370
Rating:
KIT List:
| Pump assy, fuel fe | 1922900070 |
| Body assy, injecti | 1904400380 |
| Governor assy, mec | NO APPLICATION |
Components :
| 001. | PUMP ASSY, INJECTI | 09200-04830 |
| 002. | PUMP ASSY, FUEL FE | 09210-02491 |
| 003. | COUPLING ASSY | 09250-00980 |
| 004. | BODY ASSY, INJECTI | 19010-01301 |
| 005. | COVER, BEARING | 09020-10430 |
| 006. | GOVERNOR ASSY, MEC | 19080-06850 |
| 007. | FLYWEIGHT ASSY | 09084-00720 |
| 008. | COMPENSATOR SUB-AS | 19260-01460 |

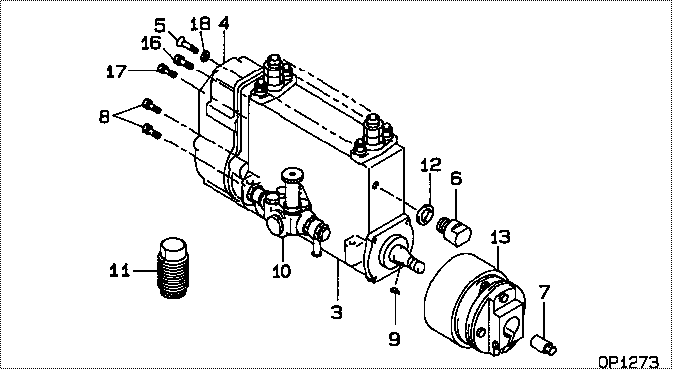

Scheme ###:
| 000. | [01] | 09200-04830 | PUMP ASSY, INJECTI | 62227-51270 |
| 003. | [01] | 19010-01301 | BODY ASSY, INJECTI | |
| 004. | [01] | 19080-06850 | GOVERNOR ASSY, MEC | |
| 005. | [01] | 94900-20590 | SCREW, COUNTERSUNK | |
| 006. | [01] | 09001-80410 | COVER, CONTROL RAC | |
| 007. | [01] | 09001-20140 | NUT, TIMER ROUND | |
| 008. | [04] | 94904-76890 | BOLT, W/WASHER | |
| 009. | [01] | 90458-05750 | KEY, WOODRUFF | |
| 010. | [01] | 09210-02491 | PUMP ASSY, FUEL FE | |
| 011. | [01] | 09006-10011 | COVER, PRIMING PUM | 09006-10011 |
| 012. | [01] | 94901-81550 | WASHER, COPPER PLA | |
| 013. | [01] | 09250-00980 | COUPLING ASSY | |
| 016. | [01] | 94904-76900 | BOLT, W/WASHER | |
| 017. | [01] | 94904-76910 | BOLT, W/WASHER | |
| 018. | [02] | 09092-10020 | WASHER |
Include in #3:
09200-04830
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09200-04830 | 62227-5127 | PUMP ASSY, INJECTI | |
| 62227-51270 | KOMATSU | PUMP ASSY, INJECTI |
Information:
Problem
The 9Y3222 Injector Rocker Arms may fail on certain 205B, 206B, 211B, 212B, 213B, 214B, 224B, and 325 Excavators; D20D and D250D Articulated Trucks; 446 Backhoe Loaders; 950F Loaders; 3114 Industrial Engines; 3116 Industrial Engines; 3116 Marine Engines; and 3116 Truck Engines. The arm may fail near the adjusting screw or the insert on the injector end of the arm may break.
Affected Product
Model & Identification Number
205B (5ZF1-91)
206B (9BF1-691)
211B (6XG1-162)
212B (3PJ1-912)
213B (1EJ1-378)
214B (4CF1-517; 9MF1-386)
224B (7WF1-181)
325 (2JK174-254)
D20D (9MG1-46)
D250D (6NG1-35)
446 (6XF1-689)
950F (6YG1-2729; 7ZF1-1045)
3114 (Industrial) (5EF1-974)
3116 (Industrial) (2WG1-2506; 4PG1-847)
3116 (Marine) (4KF1-1154)
3116 (Truck) (2BK10000-14485)
Parts Needed
6 - 9Y3222 Injector Arm AssemblyAction Required
If one 9Y3222 Injector Arm Assembly fails, follow the procedures in the Service Manual and replace all six 9Y3222 Injector Arm Assemblies.
In marine applications where there is more than one engine per vessel, install six new 9Y3222 Injector Arm Assemblies on all engines if there is a 9Y3222 Injector Arm Assembly failure.
Service Claim Allowances
All Affected Product Except Truck Engines
This is a 4-hour job.
Truck Engines
Labor segment for test after repair not allowed for this repair.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
