09200-03650 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935006370
09200-03650 PUMP ASSY, INJECTI
Rating:
13
Buy PUMP ASSY, INJECTI 09200-03650 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, fuel fe 1922900060
Body assy, injecti 1904400360
Governor assy, mec 1908900170

Components :

001. PUMP ASSY, INJECTI 09200-03650
002. PUMP ASSY, FUEL FE 09210-02890
003. BODY ASSY, INJECTI 19010-01020
004. GOVERNOR ASSY, MEC 19080-06010
005. COMPENSATOR SUB-AS 19260-01030

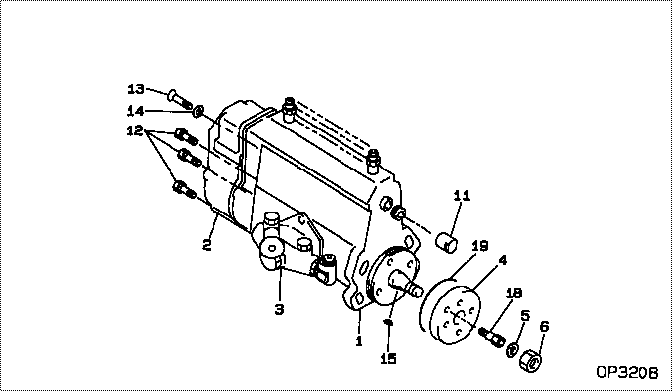

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09200-03650 PUMP ASSY, INJECTI RE501016
001. [01] 19010-01020 BODY ASSY, INJECTI
002. [01] 19080-06010 GOVERNOR ASSY, MEC
003. [01] 09210-02890 PUMP ASSY, FUEL FE
004. [01] 09255-10550 BLOCK, COUPLING
005. [01] 94901-50900 WASHER, SPRING
006. [01] 94905-03570 NUT, HEXAGON
011. [01] 09001-80140 COVER, CONTROL RAC
012. [06] 91518-06161 BOLT, W/WASHER
013. [01] 90060-08161 SCREW, CROSSRECESS
014. [01] 09092-10020 WASHER
015. [01] 90458-04051 KEY, WOODRUFF
018. [01] 94904-06950 BOLT, HEXAGON
019. [01] 94914-03430 O-RING

Include in #3:

09200-03650 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09200-03650  RE501016  PUMP ASSY, INJECTI
RE501016    JOHN DEERE PUMP ASSY, INJECTI




Information:

} } @media print { div.divFooter { position: fixed; bottom: 0; right: 0; } } Caterpillar: Confidential Yellow
PSP FOR FUEL INJECTION LINE FAILURES ON 627E, 627E PP AND 637E SCRAPERS - MAILED WORLDWIDE EXCEPT BRAZIL
  The information supplied in this service letter may not be valid after the termination date of this program.   Do not perform the work outlined in this Service Letter after the termination date without first contacting your
