09200-03600 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935006260
09200-03600 PUMP ASSY, INJECTI
Rating:
24
Buy PUMP ASSY, INJECTI 09200-03600 genuine, new aftermarket engine parts with delivery

KIT List:

Timer assy, automa No Application
Pump assy, fuel fe 1922900070
Body assy, injecti 1904400380
Governor assy, mec No Application

Components :

001. PUMP ASSY, INJECTI 09200-03600
002. TIMER ASSY, AUTOMA 09180-04030
003. PUMP ASSY, FUEL FE 09210-02880
004. COUPLING ASSY 09250-01160
005. BODY ASSY, INJECTI 19010-01460
006. COVER, BEARING 09020-10430
007. GOVERNOR ASSY, MEC 19080-06040
008. FLYWEIGHT ASSY 09084-00720
009. COMPENSATOR SUB-AS 19260-01180

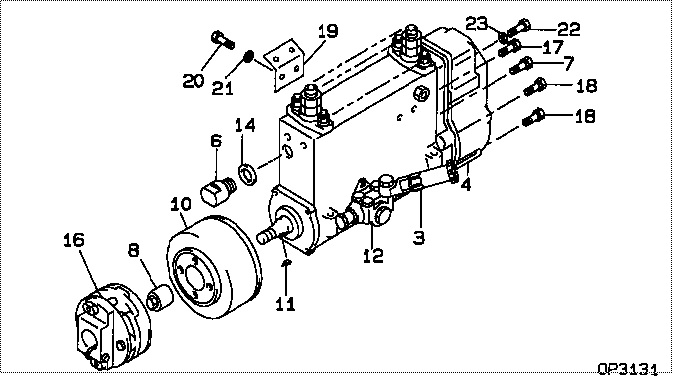

Scheme ###:

000. [01] 09200-03600 PUMP ASSY, INJECTI 22030-2850
000. [01] 09200-03600 PUMP ASSY, INJECTI S2203-02850
003. [01] 19010-01460 BODY ASSY, INJECTI
004. [01] 19080-06040 GOVERNOR ASSY, MEC
006. [01] 09001-80381 COVER, CONTROL RAC 22114-1200A
007. [01] 94904-76900 BOLT, W/WASHER
008. [01] 09001-20340 NUT, TIMER ROUND
010. [01] 09180-04030 TIMER ASSY, AUTOMA
011. [01] 90458-05750 KEY, WOODRUFF 22891-1070A
012. [01] 09210-02880 PUMP ASSY, FUEL FE
014. [01] 94901-81550 WASHER, COPPER PLA 96542-2150A
016. [01] 09250-01160 COUPLING ASSY
017. [01] 94904-76910 BOLT, W/WASHER
018. [04] 94904-76890 BOLT, W/WASHER 22815-3210A
019. [01] 09045-30200 STAY, INJECTION PU 11491-1950A
020. [02] 09031-70350 PLUG, SCREW 90391-6102A
021. [02] 90258-16001 WASHER, SPRING
022. [02] 94900-20590 SCREW, COUNTERSUNK
023. [02] 09092-10020 WASHER

Include in #3:

09200-03600 as PUMP ASSY, INJECTI
09200-03600

Cross reference number



Part num Firm num Firm Name
09200-03600  22030-2850  PUMP ASSY, INJECTI
22030-2850    HINO PUMP ASSY, INJECTI
S2203-02850    HINO PUMP ASSY, INJECTI




Information:

(8) Diameter of camshaft journals: No. 1 journal ... 50.71 to 50.737 mm (1.9965 to 1.9975 in.)Minimum permissible diameter ... 50.660 mm (1.9945 in.)No. 2 journal ... 50.457 to 50.483 mm (1.9865 to 1.9875 in.)Minimum permissible diameter ... 50.406 mm (1.9845 in.)No. 3 journal ... 50.203 to 50.229 mm (1.9765 to 1.9775 in.)Minimum permissible diameter ... 50.152 mm (1.9745 in.)No. 4 journal ... 49.949 to 49.975 mm (1.9665 to 1.9675 in.)Minimum permissible diameter ... 48.898 mm (1.9645 in.)(See topic Cylinder Block for camshaft bore specifications.) (10) Height of the lobes of the camshaft. To get height use the procedure that follows:A. Measure base circle (11).B. Add lobe lift (9) to base circle measurement. Total is camshaft lobe height. Camshaft lobe lift (9) is:Intake ... 7.704 to 7.780 mm (.3033 to .3063 in.)Exhaust ... 7.805 to 7.881 mm (.3073 to .3103 in.)Minimum permissible height of lobes is 0.25 mm (.010 in.) less than measurement in Step B.(12) Torque for camshaft bolt ... 70 N m (50 lb.ft.)(13) End play of camshaft ... 0.10 to 0.41 mm (.004 to .016 in.) Maximum permissible end play ... 0.53 mm (.021 in.)(14) Camshaft thrust washer: Outside diameter ... 72.95 to 73.00 mm (2.872 to 2.874 in.)Cylinder block recess diameter for thrust washer ... 73.03 to 73.28 mm (2.875 to 2.885 in.)Clearance of washer in recess ... 0.03 to 0.33 mm (.001 to .013 in.)Inside diameter ... 44.45 mm (1.750 in.)Thickness ... 5.49 to 5.54 mm (.216 to .218 in.)Cylinder block recess depth for thrust washer ... 5.41 to 5.54 mm (.213 to .216 in.)Projection of thrust washer above cylinder block front face ... 0.00 to 0.13 mm (.000 to .005 in.)(15) Camshaft gear: Bore diameter ... 34.93 to 34.95 mm (1.375 to 1.376 in.)Outside diameter of camshaft hub ... 34.928 to 34.943 mm (1.3751 to 1.3757 in.)Clearance of gear on hub ... -0.018 to +0.023 mm (.-.0007 to +.0009 in.)
