Information pump assy, injecti
Nozzle:
0935006590
Rating:
KIT List:
| Pump assy, fuel fe | 1922900060 |
| Body assy, injecti | 1904400320 |
| Governor assy, mec | 1908900170 |
Components :
| 001. | PUMP ASSY, INJECTI | 09200-03380 |
| 002. | PUMP ASSY, FUEL FE | 09210-02090 |
| 003. | BODY ASSY, INJECTI | 19010-01310 |
| 004. | GOVERNOR ASSY, MEC | 19080-05800 |

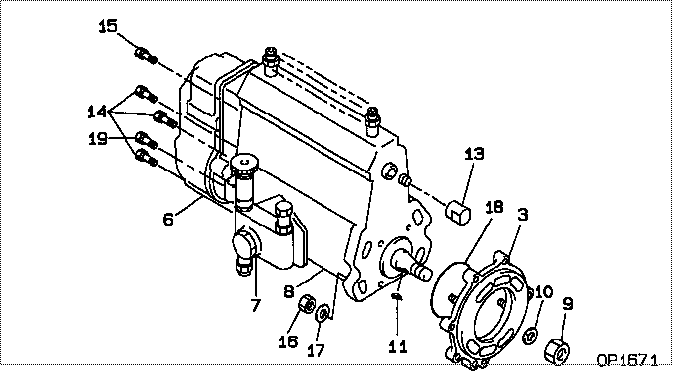

Scheme ###:
| 000. | [01] | 09200-03380 | PUMP ASSY, INJECTI | 22100-78706-71 |
| 003. | [01] | 09006-00330 | COVER SUB-ASSY, TI | |
| 006. | [01] | 19080-05800 | GOVERNOR ASSY, MEC | |
| 007. | [01] | 09210-02090 | PUMP ASSY, FUEL FE | 22510-78300-71 |
| 008. | [01] | 19010-01310 | BODY ASSY, INJECTI | |
| 009. | [01] | 94905-03570 | NUT, HEXAGON | |
| 010. | [01] | 94901-50590 | WASHER, SPRING | |
| 011. | [01] | 94913-00300 | KEY, WOODRUFF | 90099-13018 |
| 013. | [01] | 09001-80090 | COVER, CONTROL RAC | |
| 014. | [05] | 91418-06161 | BOLT, W/WASHER | |
| 015. | [01] | 91518-08221 | BOLT, W/WASHER | |
| 016. | [04] | 91266-10081 | NUT, HEXAGON | |
| 017. | [04] | 94901-15020 | WASHER, STEEL PLAT | |
| 018. | [01] | 94914-02840 | O-RING | |
| 019. | [01] | 94904-70620 | BOLT, W/WASHER |
Include in #3:
09200-03380
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09200-03380 | 22100-7870 | PUMP ASSY, INJECTI | |
| 22100-78706-71 | TICO | PUMP ASSY, INJECTI |
