09200-03300 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935005100
09200-03300 PUMP ASSY, INJECTI
Rating:
5
Buy PUMP ASSY, INJECTI 09200-03300 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400360
Governor assy, mec 1908900271
Timer assy, automa No Application
Pump assy, fuel fe 1922900060
Pump assy, fuel fe 1922900060

Components :

001. PUMP ASSY, INJECTI 09200-03300
002. BODY ASSY, INJECTI 09010-08444
003. COVER, BEARING 09020-10250
004. GOVERNOR ASSY, MEC 09130-06160
005. LEVER SET 09129-10061
006. COVER ASSY, GOVERN 09145-00133
007. TIMER ASSY, AUTOMA 09180-03330
008. PUMP ASSY, FUEL FE 09210-02630
009. PUMP ASSY, FUEL FE 09210-03170
010. COUPLING ASSY 09250-00850

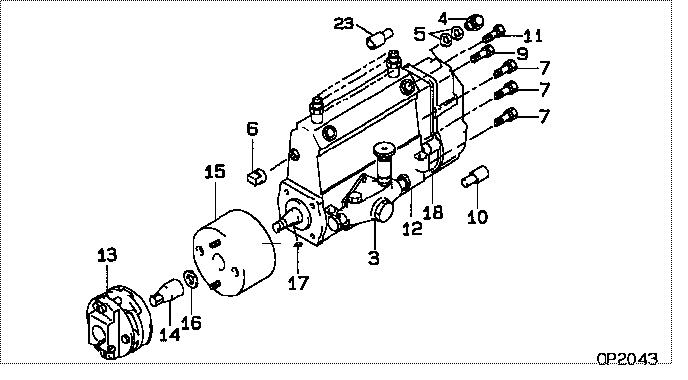

Scheme ###:

000. [01] 09200-03300 PUMP ASSY, INJECTI 22030-2770
003. [01] 09210-02630 PUMP ASSY, FUEL FE 22570-1500A
003. [01] 09210-03170 PUMP ASSY, FUEL FE 22570-1730A
004. [01] 09031-00380 VALVE ASSY, OVERFL 22107-1430A
005. [02] 94901-02480 WASHER 22847-1940A
006. [01] 09001-80010 COVER, CONTROL RAC 22118-1120
007. [05] 94904-72690 BOLT, W/WASHER 22815-2410A
009. [01] 91418-06201 BOLT, W/WASHER 22815-1290A
010. [01] 09028-50030 CAP 22323-1210A
011. [01] 94904-73910 BOLT, W/WASHER 22815-2820A
012. [01] 09010-08444 BODY ASSY, INJECTI 22110-2532A
013. [01] 09250-00850 COUPLING ASSY 22610-1640A
014. [01] 09001-20220 NUT, TIMER ROUND
015. [01] 09180-03330 TIMER ASSY, AUTOMA 22510-2530A
016. [01] 94901-40210 WASHER, COUNTERSUN 22867-1320A
017. [01] 90458-04051 KEY, WOODRUFF 22895-1080A
018. [01] 09130-06160 GOVERNOR ASSY, MEC
023. [01] 09028-50050 CAP 22323-1430A

Include in #3:

09200-03300 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09200-03300  22030-2770  PUMP ASSY, INJECTI
22030-2770    HINO PUMP ASSY, INJECTI




Information:

1. Remove bolt (1), six bolts (2), two top bolts (3), housing (4) and the gasket. 2. Remove governor spring (5), the two wave washers, one flat washer and seat from the guide in the housing. 3. Remove bolts (6), cover (7) and the gasket from the housing. Use tooling (A) to remove seal (8) from the cover. 4. Remove low idle adjustment screw (9) and spring (10) from the housing. 5. Remove shaft assembly (12), lever (11) and lever (13) from the housing. 6. Remove two snap rings from pins (15) and remove pins (15). Remove plates (14) and stop (16) from the shaft assembly. 7. Remove pin (18), pin (17) and spring (19) from the shaft assembly. 8. Remove shaft (20) and lever (21) from the housing.
Remove check valve (22) only if a replacement is necessary because the check valve will be damaged during removal.
9. Remove check valve (22) if a replacement is necessary. 10. Remove contact (23) and body (24) for the governor dashpot adjustment screw from the housing.11. Remove bolts (25), cover (26) and the gasket from the housing. 12. Remove seal (27) and adjustment screw (28) for the high idle. 13. Remove two bolts (29), housing (30) and the gasket from the fuel injection pump housing. 14. Remove bolts (31) and torque control group (32).15. Disassemble the torque control group and inspect the spacer, spring and insulator for damage or wear. 16. Remove bolts (33) and block (34) for the full load stop from the housing. 17. Remove the bolt that holds collar (35) to bolt (37). Remove collar (35), collar (36) and the spring from bolt (37). Remove bolt (37) from the block.18. Remove the stop screws from collar (35) if a replacement is necessary. 19. Remove bolts (39) and governor servo (38) from the fuel injection pump. 20. Remove lockring (44), seat (43), spring (broken link spring) (42) and sleeve (41) from valve (40). Remove the other lockring (44) from the groove in the center of valve (40). 21. Remove valve (40), sleeve (45) and piston (47) from the governor servo. Remove the O-ring seal from sleeve (45).22. Remove pin (46) and lever (48) from the governor servo. 23. Use tool (B) to hold spring (50) in compression so ring (49) can be removed. Spring (50) is used to put a preload on the thrust bearing for the camshaft in the fuel injection pump housing.24. Remove ring (49) then remove tool (B).25. Remove bearing (51), sleeves (52) and spring (50) from the governor shaft. 26. Remove ring (53) and dashpot assembly (54) from the governor shaft. 27. Use tool (C) to remove snap ring (60) from seat (57). Remove ring (59) and spool (58) from seat (57).28. Remove seat (57) from spring (56) and remove spring (56) from seat (55). 29. Remove spring (overfueling spring) (61) and riser (62) from the governor shaft. 30. Remove ring (63), races (64) and bearing (65) from the riser. 31. Use a screwdriver to remove
