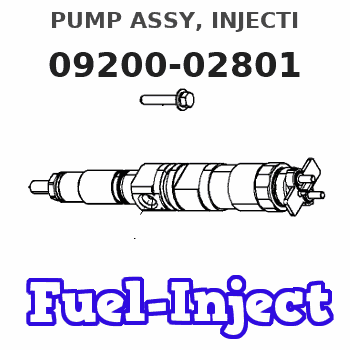

Information pump assy, injecti
Rating:
Scheme ###:
| 000. | [01] | 09200-02801 | PUMP ASSY, INJECTI | 22010-8071 |
| 000. | [01] | 09200-02802 | PUMP ASSY, INJECTI | S2201-08071 |
| 003. | [01] | 19010-01180 | BODY ASSY, INJECTI | |
| 004. | [01] | 09130-04865 | GOVERNOR ASSY, MEC | 22310-5380D |
| 005. | [01] | 09180-03522 | TIMER ASSY, AUTOMA | S2251-02670-B |
| 006. | [01] | 09001-20340 | NUT, TIMER ROUND | S2282-52240-A |
| 007. | [01] | 09250-01041 | COUPLING ASSY | |
| 008. | [01] | 90458-05750 | KEY, WOODRUFF | S2289-11070-A |
| 009. | [01] | 09210-03150 | PUMP ASSY, FUEL FE | S2257-01740-A |
| 010. | [01] | 09001-80381 | COVER, CONTROL RAC | S2211-41200-A |
| 011. | [01] | 94901-81550 | WASHER, COPPER PLA | SL722-02215 |
| 012. | [01] | 94904-76900 | BOLT, W/WASHER | S2281-53230-A |
| 013. | [04] | 94904-76890 | BOLT, W/WASHER | S2281-53210-A |
| 014. | [01] | 94904-76910 | BOLT, W/WASHER | S2281-53240-A |
| 015. | [02] | 94904-76880 | BOLT, W/WASHER | S2281-53320-A |
| 019. | [01] | 09028-50030 | CAP | S2232-31210-A |
| 020. | [01] | 09028-50050 | CAP | S2232-31430-A |
| 023. | [02] | 94901-02480 | WASHER | S2284-71940-A |
| 024. | [01] | 09031-00450 | VALVE ASSY, OVERFL | S2210-71570-A |
| 025. | [02] | 91808-08121 | BOLT, FLANGE | S2281-53330-A |
| 026. | [01] | 09069-00632 | BRACKET SUB-ASSY, | S2234-35351-A |
| 027. | [01] | 09028-50030 | CAP | S2232-31210-A |
Include in #3:
09200-02801
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09200-02801 | 22010-8071 | PUMP ASSY, INJECTI |
Information:
Disassemble Governor
Start By:a. remove fuel injection pump housing and governor If it is desired to remove only the governor so the fuel injection pump housing can be disassembled, do only Steps 1, 2, 15, 21, 25, 26, 27, 28, 31, 33, 34 and 37. 1. Remove bolts (1), the clamps and service meter (2) (if equipped). 2. Remove six bolts (3), two top bolts (4), housing (5) and the gasket. 3. Remove governor spring (6), the two wave washers, one flatwasher and seat from the guide in the housing. 4. Mark the position of lever (7) on shaft (8). Loosen bolt (10). Use a chisel or screwdriver to expand lever (7) so it can be removed from shaft (8).5. Remove cover assembly (9). 6. Use Tool (A) to remove seal (10) from cover (9). 7. Remove low idle adjustment screw (12) and spring (11) from the housing. 8. Remove shaft assembly (14), lever (13) and lever (15) from the housing. 9. Remove two snap rings from pins (17), and remove pins (17). Remove plates (16) and stop (18) from the shaft assembly. 10. Remove pin (20), pin (19) and spring (21) from the shaft assembly. 11. Remove shaft (22) and lever (23) from the housing.
Remove check valve (24) only if a replacement is necessary because the check valve will be damaged during removal.
12. Remove check valve (24) if a replacement is necessary. 13. Remove contact (25) and body (26) for the governor dashpot adjustment screw from the housing. Remove bolts (27), cover (28) and the gasket from the housing. 14. Remove seal (29) and adjustment screw (30) for high idle. 15. Remove two bolts (31), housing (32) and the gasket from the fuel injection pump housing. 16. Remove bolts (33) and torque control group (34).17. Disassemble the torque control group and inspect the spacer, spring and insulator for damage or wear. 18. Remove bolts (36) and block (35) for the full load step from the housing. 19. Remove the bolt that holds collar (37) to bolt (39). Remove collar (37) and spring (38) from bolt (39). Remove bolt (39) from the block.20. Remove the stop screw from collar (37) if a replacement is necessary. 21. Remove bolts (41) and governor servo (40) from the fuel injection pump. 22. Remove lockring (46), seat (45), spring (broken link spring) (44) and sleeve (43) from valve (42). Remove the other lockring (46) from the groove in the center of valve (42). The groove in the bottom of valve (42) must be in alignment with the servo body to permit removal from the fuel rack.23. Remove valve (42), sleeve (47) and piston (49) from the governor servo. Remove the O-ring seal from sleeve (47).24. Remove pin (48) and lever (50) from the governor servo. 25. Use Tool (C) to hold spring (52) under compression so ring (51) can be removed. Spring (52) is used to put a preload on the thrust bearing for the camshaft in the fuel injection pump housing.26. Remove
Start By:a. remove fuel injection pump housing and governor If it is desired to remove only the governor so the fuel injection pump housing can be disassembled, do only Steps 1, 2, 15, 21, 25, 26, 27, 28, 31, 33, 34 and 37. 1. Remove bolts (1), the clamps and service meter (2) (if equipped). 2. Remove six bolts (3), two top bolts (4), housing (5) and the gasket. 3. Remove governor spring (6), the two wave washers, one flatwasher and seat from the guide in the housing. 4. Mark the position of lever (7) on shaft (8). Loosen bolt (10). Use a chisel or screwdriver to expand lever (7) so it can be removed from shaft (8).5. Remove cover assembly (9). 6. Use Tool (A) to remove seal (10) from cover (9). 7. Remove low idle adjustment screw (12) and spring (11) from the housing. 8. Remove shaft assembly (14), lever (13) and lever (15) from the housing. 9. Remove two snap rings from pins (17), and remove pins (17). Remove plates (16) and stop (18) from the shaft assembly. 10. Remove pin (20), pin (19) and spring (21) from the shaft assembly. 11. Remove shaft (22) and lever (23) from the housing.
Remove check valve (24) only if a replacement is necessary because the check valve will be damaged during removal.
12. Remove check valve (24) if a replacement is necessary. 13. Remove contact (25) and body (26) for the governor dashpot adjustment screw from the housing. Remove bolts (27), cover (28) and the gasket from the housing. 14. Remove seal (29) and adjustment screw (30) for high idle. 15. Remove two bolts (31), housing (32) and the gasket from the fuel injection pump housing. 16. Remove bolts (33) and torque control group (34).17. Disassemble the torque control group and inspect the spacer, spring and insulator for damage or wear. 18. Remove bolts (36) and block (35) for the full load step from the housing. 19. Remove the bolt that holds collar (37) to bolt (39). Remove collar (37) and spring (38) from bolt (39). Remove bolt (39) from the block.20. Remove the stop screw from collar (37) if a replacement is necessary. 21. Remove bolts (41) and governor servo (40) from the fuel injection pump. 22. Remove lockring (46), seat (45), spring (broken link spring) (44) and sleeve (43) from valve (42). Remove the other lockring (46) from the groove in the center of valve (42). The groove in the bottom of valve (42) must be in alignment with the servo body to permit removal from the fuel rack.23. Remove valve (42), sleeve (47) and piston (49) from the governor servo. Remove the O-ring seal from sleeve (47).24. Remove pin (48) and lever (50) from the governor servo. 25. Use Tool (C) to hold spring (52) under compression so ring (51) can be removed. Spring (52) is used to put a preload on the thrust bearing for the camshaft in the fuel injection pump housing.26. Remove
