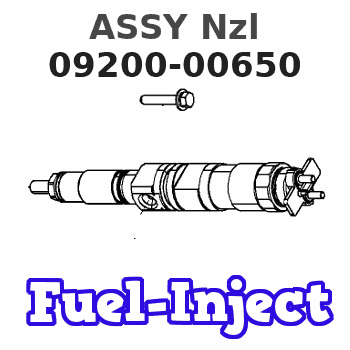

09200-00650 ASSY Nzl Denso Cross




Information assy nzl

Nozzle: 0935005870
09200-00650 ASSY Nzl
Rating:
52
Buy ASSY Nzl 09200-00650 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, fuel fe 1922900060
Body assy, injecti 1904400360
Governor assy, mec 1908900170
Governor assy, mec 1908900170

Components :

001. PUMP ASSY, INJECTI 09200-00650
001. PUMP ASSY, INJECTI 09200-00650
002. PUMP ASSY, FUEL FE 09210-01471
003. BODY ASSY, INJECTI 19010-00380
004. GOVERNOR ASSY, MEC 19080-04353
005. GOVERNOR ASSY, MEC 19080-06630

Cross reference number



Part num Firm num Firm Name
09200-00650    ASSY Nzl
32B6545010    MITSUBISHI PUMP ASSY, INJECTI
32B6535010    MITSUBISHI PUMP ASSY, INJECTI




Information:

Start By:a. remove valve cover 1. Remove four bolts (1) that hold each rocker arm assembly in position. Remove the rocker arm assemblies from the engine.2. Put identification marks on all push rods as to their location in the engine. Remove the push rods from the engine. 3. Disassemble the rocker arm assemblies as follows: a. Remove the pin and rocker arm mounts (2). Remove the two rocker arm assemblies and the unit injector arm assembly from the shaft assembly.b. Remove the nut and valve adjusting screw (3) from each rocker arm.c. Remove arm button (7), retaining ring (6) and the arm socket from the unit injector arm.d. Loosen the nut, and remove injection adjusting screw (4) from the unit injector arm.e. Remove sleeve bearing (5) from the unit injector arm. The following steps are for the installation of the rocker arm assemblies and push rods.4. Be sure all parts of the rocker arm assemblies are clean.5. Assemble the rocker arm assemblies as follows: a. Install sleeve bearing (5) in the unit injector arm with Tool (A).b. Install injection adjusting screw (4) and the nut in the unit injector arm.c. Install the arm socket, retaining ring (6) and arm button (7) in the unit injector arm.d. Install valve adjusting screw (3) and the nut in each rocker arm.e. Put the rocker arm assemblies and the unit injector arm assembly in position on the shaft assembly. Install two rocker arm mounts (2) and the pins that hold them.6. Apply clean engine oil to the push rods, and install them in their original locations in the engine. Be sure the push rods are seated in the lifter arm assemblies.7. Loosen all adjusting screws in the rocker arm assemblies. Position the rocker arm assemblies on the cylinder head assembly, and install bolts (1) that hold them in position.8. Adjust the fuel timing and the valve lash. See the topics "Fuel Timing" & "Valve Lash" in the 3114 & 3116 Diesel truck Engines Systems Operation & Testing & Adjusting module, Form No. SENR6437.End By:a. install valve cover
