Information pump assy, injecti
Nozzle:
0935005390
Rating:
KIT List:
| Pump assy, fuel fe | 1922900060 |
| Body assy, injecti | 1904400360 |
| Governor assy, mec | No Application |
Components :
| 001. | PUMP ASSY, INJECTI | 09200-00400 |
| 002. | PUMP ASSY, FUEL FE | 09210-02700 |
| 003. | BODY ASSY, INJECTI | 19010-00060 |
| 004. | GOVERNOR ASSY, MEC | 19080-04230 |
| 005. | COMPENSATOR SUB-AS | 19260-00060 |

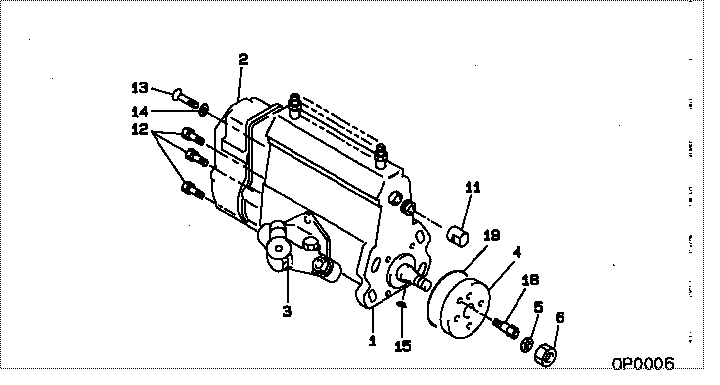

Scheme ###:
| 000. | [01] | 09200-00400 | PUMP ASSY, INJECTI | RE47395 |
| 001. | [01] | 19010-00060 | BODY ASSY, INJECTI | |
| 002. | [01] | 19080-04230 | GOVERNOR ASSY, MEC | |
| 003. | [01] | 09210-02700 | PUMP ASSY, FUEL FE | |
| 004. | [01] | 09255-10550 | BLOCK, COUPLING | |
| 005. | [01] | 94901-50900 | WASHER, SPRING | |
| 006. | [01] | 94905-03570 | NUT, HEXAGON | |
| 011. | [01] | 09001-80140 | COVER, CONTROL RAC | |
| 012. | [06] | 91518-06161 | BOLT, W/WASHER | |
| 013. | [01] | 90060-08161 | SCREW, CROSSRECESS | |
| 014. | [01] | 09092-10020 | WASHER | |
| 015. | [01] | 90458-04051 | KEY, WOODRUFF | |
| 018. | [01] | 94904-06950 | BOLT, HEXAGON | |
| 019. | [01] | 94914-03430 | O-RING |
Include in #3:
09200-00400
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09200-00400 | RE47395 | PUMP ASSY, INJECTI | |
| RE47395 | JOHN DEERE | PUMP ASSY, INJECTI |
