09200-00370 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935005280
09200-00370 PUMP ASSY, INJECTI
Rating:
23
Buy PUMP ASSY, INJECTI 09200-00370 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400380
Governor assy, mec No Application
Timer assy, automa No Application
Pump assy, fuel fe 1922900060

Components :

001. PUMP ASSY, INJECTI 09200-00370
002. BODY ASSY, INJECTI 09010-09920
003. COVER, BEARING 09020-10430
004. GOVERNOR ASSY, MEC 09130-04470
005. LEVER SET 09129-10230
006. COVER ASSY, GOVERN 09145-00223
007. TIMER ASSY, AUTOMA 09180-03260
008. PUMP ASSY, FUEL FE 09210-00942
009. COUPLING ASSY 09250-00910

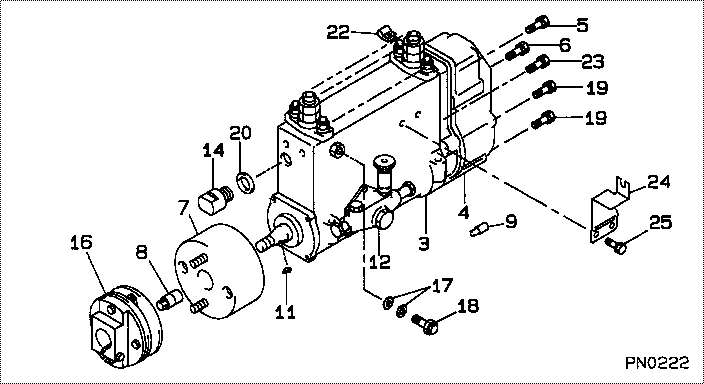

Scheme ###:

000. [01] 09200-00370 PUMP ASSY, INJECTI 22010-7220
000. [01] 09200-00371 PUMP ASSY, INJECTI S2201-07220
003. [01] 09010-09921 BODY ASSY, INJECTI
004. [01] 09130-04470 GOVERNOR ASSY, MEC
005. [02] 94904-76880 BOLT, W/WASHER
006. [01] 94904-76910 BOLT, W/WASHER
007. [01] 09180-03260 TIMER ASSY, AUTOMA
008. [01] 09001-20340 NUT, TIMER ROUND
009. [01] 09028-50030 CAP 22323-1210A
011. [01] 90458-05750 KEY, WOODRUFF 22891-1070A
012. [01] 09210-00942 PUMP ASSY, FUEL FE 22570-1220A
014. [01] 09001-80420 COVER, CONTROL RAC 22114-1240A
016. [01] 09250-00910 COUPLING ASSY
017. [02] 94901-02480 WASHER 22847-1940A
018. [01] 09031-00130 VALVE ASSY, OVERFL 22107-1090A
019. [04] 94904-76890 BOLT, W/WASHER
020. [01] 94901-81550 WASHER, COPPER PLA 96542-2150A
022. [01] 09039-10040 CLIP, CORD 22323-1190A
023. [01] 94904-76900 BOLT, W/WASHER
024. [01] 09069-11450 BRACKET, STOP WIRE
025. [02] 91418-06121 BOLT, W/WASHER 22815-1500A

Include in #3:

09200-00370 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09200-00370  22010-7220  PUMP ASSY, INJECTI
22010-7220    HINO PUMP ASSY, INJECTI
S2201-07220    HINO PUMP ASSY, INJECTI




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The new and former parts and listed in Table 1.
Table 1
Qty New Part Number Part Name Former Part Number
2 303-1968 Gasket 303-1968
4 346-0335 Band Clamp 346-0335
4 536-5400(1) Plate N/A
2 549-2046(2) Clean Emissions Module Ar 536-3638
536-3639
(1) The 536-5400 Plates are used to rework the 536-3638 Catalytic Converter Gp (Left-Hand) and the 536-3639 Catalytic Converter Gp (Right-Hand).
(2) The new 549-2046 Clean Emissions Module Ar is universal and can be installed on both sides of the engine.Inspect the 536-3638 Catalytic Converter Gp (Left-Hand) and the 536-3639 Catalytic Converter Gp (Right-Hand) for cracks before replacing the DOCs. If no cracks are present during inspection, the two 536-5400 Plates can be welded to the top of each DOC for support. Refer to special instruction for the complete list of parts and rework instructions.Note: If the 536-3638 Catalytic Converter Gp (Left-Hand) and the 536-3639 Catalytic Converter Gp (Right-Hand) are reworked, install the DOCs back into the original position. The DOCs are not interchangeable.The special instruction is available through the normal literature distribution system. The publication can also be found on the Caterpillar Service Information System (SIS).
