09180-04440 TIMER ASSY, AUTOMA Denso Cross

Information timer assy, automa

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy TIMER ASSY, AUTOMA 09180-04440 genuine, new aftermarket engine parts with delivery

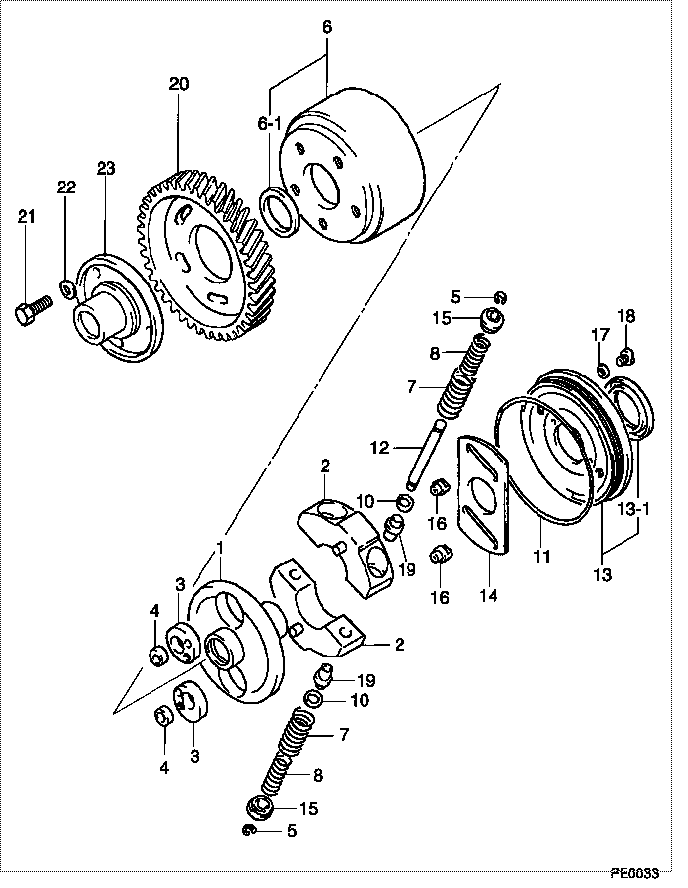

Scheme ###:

000.	[01]	09180-04440	TIMER ASSY, AUTOMA	S2251-03240
001.	[01]	09181-12101	HUB, TIMER	S2251-62080-A
002.	[02]	09183-61490	WEIGHT SUB-ASSY, T	S2251-44320-A
003.	[02]	09189-50290	CAM, TIMER	S2254-51430-A
004.	[02]	09189-50300	CAM, TIMER	S2254-51440-A
005.	[04]	94907-10880	WASHER, SNAP	S2251-81110-A
006.	[01]	09184-01221	FLANGE, TIMER DRIV
006-001.	[01]	09186-00010	SEAL, OIL
007.	[04]	09181-93320	SPRING, TIMER
008.	[4C]	09181-82090	SPRING, TIMER SUB	22515-7300A
008.	[4C]	09181-82100	SPRING, TIMER SUB
008.	[4C]	09181-82240	SPRING, TIMER SUB	S2251-57470-A
010.	[8C]	94901-39530	WASHER, PLATE, SK	S2288-57880-A
010.	[8C]	94901-39520	WASHER, PLATE, SK	S2288-57890-A
010.	[8C]	94901-39510	WASHER, PLATE, SK	S2288-57860-A
010.	[8C]	94901-39500	WASHER, PLATE, SK	S2288-57850-A
010.	[8C]	94901-39490	WASHER, PLATE, SK	S2288-57840-A
010.	[8C]	94901-39480	WASHER, PLATE, SK	S2288-57830-A
010.	[8C]	94901-38920	WASHER, PLATE, SK	S2288-57350-A
010.	[8C]	94901-38910	WASHER, PLATE, SK	S2288-57340-A
010.	[8C]	94901-38200	WASHER, PLATE, SK	S2288-55890-A
010.	[8C]	94901-38190	WASHER, PLATE, SK	S2288-55880-A
010.	[8C]	94901-38180	WASHER, PLATE, SK	S2288-55870-A
011.	[01]	09013-90390	O-RING	S2281-72380-A
012.	[02]	09188-40110	SUPPORT, TIMER SPR	S2253-51140-A
013.	[01]	09187-00260	COVER SUB-ASSY, TI
013-001.	[01]	09186-00020	SEAL, OIL
014.	[01]	09186-70351	PLATE, TIMER DRIVI	S2251-32690-A
015.	[04]	09181-70310	SEAT	S2251-71510-A
016.	[02]	09188-20121	ROLLER, TIMER	S2252-21100-A
017.	[02]	94901-81020	WASHER, COPPER PLA	S2286-71500-A
018.	[02]	09186-20010	SCREW, TIMER HUB	S2286-51270-A
019.	[04]	09181-70590	SEAT	22517-1910A
020.	[01]	09185-10850	GEAR, TIMER DRIVIN	13613-E0030
020.	[01]	09185-10850	GEAR, TIMER DRIVIN	13613-E0150
021.	[05]	09244-10010		22815-1890A
022.	[05]	09241-70060	WASHER, COUPLING S	S2286-71490-A
023.	[01]	09241-50770	FLANGE, COUPLING	22519-1090A

Include in #3:

09180-04440 as TIMER ASSY, AUTOMA

09300-06841

09300-06862

Cross reference number

Part num	Firm num	Firm	Name
09180-04440	S2251-0324		TIMER ASSY, AUTOMA
S2251-03240		HINO	TIMER ASSY, AUTOMA
S2251-03240-A		HINO	TIMER ASSY, AUTOMA

Information:

Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The new 583-9296 Gasket replace the former 553-1133 Gasket.Note: The former part number listed is for reference only and may differ.The new gasket is adaptable to the above machines back to first production.
Illustration 1 g06432905
Cross pattern
Illustration 2 g06432913
Square pattern
Apply nickel anti-seize to the bolts.
Hand tighten all bolts.
Using the cross pattern (1-2-3-4), torque each bolt to 25 N m (18 lb ft).
Using the cross pattern (1-2-3-4), torque each bolt to 65 N m (48 lb ft).
Using the cross pattern (1-2-3-4), torque each bolt to 125 N m (92 lb ft).
Using the square pattern (1-3-2-4), torque each bolt to 125 20 N m (92 15 lb ft).
