Information timer assy, automa
Rating:
KIT List:
| Timer assy, automa | No Application |
| Timer assy, automa | No Application |
Scheme ###:

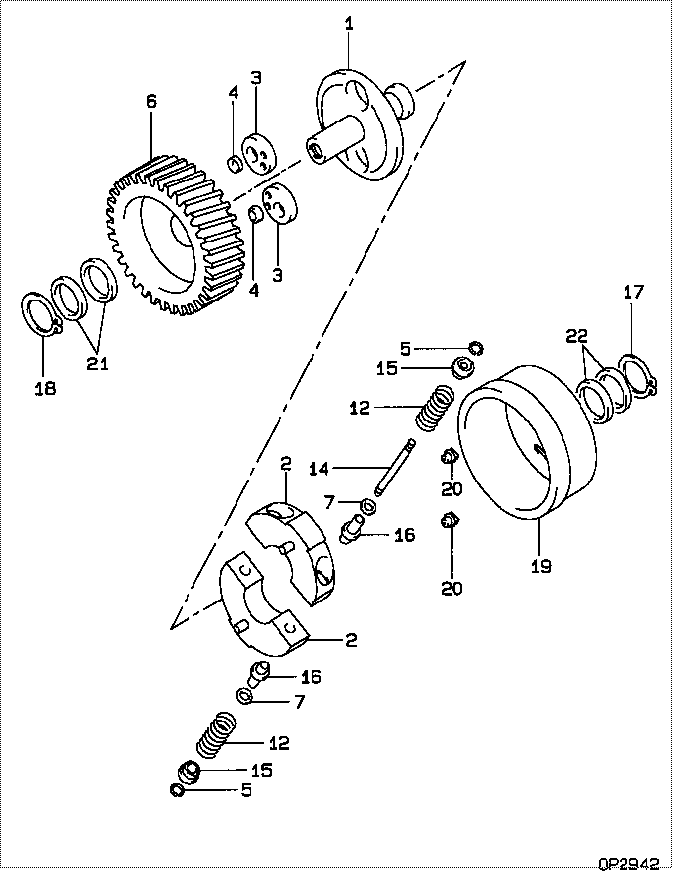

| 000. | [01] | 09180-03990 | TIMER ASSY, AUTOMA | ME743307 |
| 001. | [01] | 09181-12130 | HUB, TIMER | ME743372 |
| 002. | [02] | 09183-61280 | WEIGHT SUB-ASSY, T | ME743373 |
| 003. | [02] | 09189-50340 | CAM, TIMER | ME736494 |
| 004. | [02] | 09189-50330 | CAM, TIMER | ME736495 |
| 005. | [04] | 94907-10880 | WASHER, SNAP | ME703750 |
| 006. | [01] | 09185-00390 | GEAR, DRIVE | ME736089 |
| 007. | [4C] | 94901-39080 | WASHER, PLATE, SK | ME736095 |
| 007. | [4C] | 94901-39070 | WASHER, PLATE, SK | ME736094 |
| 007. | [4C] | 94901-39060 | WASHER, PLATE, SK | ME736093 |
| 007. | [4C] | 94901-39050 | WASHER, PLATE, SK | ME736092 |
| 007. | [4C] | 94901-39040 | WASHER, PLATE, SK | ME736091 |
| 007. | [4C] | 94901-39030 | WASHER, PLATE, SK | ME736090 |
| 012. | [4C] | 09181-81550 | SPRING, TIMER SUB | ME743374 |
| 012. | [4C] | 09181-81560 | SPRING, TIMER SUB | ME743375 |
| 014. | [02] | 09188-40130 | SUPPORT, TIMER SPR | ME736098 |
| 015. | [04] | 09181-70440 | SEAT | ME736496 |
| 016. | [04] | 09181-70400 | SEAT | ME736100 |
| 017. | [01] | 90557-45000 | RING, SHAFT SNAP | ME736101 |
| 018. | [01] | 90557-35000 | RING, SHAFT SNAP | ME703758 |
| 019. | [01] | 09185-60541 | COVER, TIMER | ME736961 |
| 020. | [02] | 09188-20081 | ROLLER, TIMER | ME736962 |
| 021. | [2C] | 94901-38070 | WASHER, PLATE, SK | ME703767 |
| 021. | [2C] | 94901-38060 | WASHER, PLATE, SK | ME703766 |
| 021. | [2C] | 94901-38050 | WASHER, PLATE, SK | ME703765 |
| 021. | [2C] | 94901-38040 | WASHER, PLATE, SK | ME703764 |
| 021. | [2C] | 94901-38030 | WASHER, PLATE, SK | ME703763 |
| 021. | [2C] | 94901-38020 | WASHER, PLATE, SK | ME703762 |
| 022. | [2C] | 94901-38970 | WASHER, PLATE, SK | ME736103 |
| 022. | [2C] | 94901-38980 | WASHER, PLATE, SK | ME736104 |
| 022. | [2C] | 94901-38990 | WASHER, PLATE, SK | ME736105 |
| 022. | [2C] | 94901-39000 | WASHER, PLATE, SK | ME736106 |
| 022. | [2C] | 94901-39010 | WASHER, PLATE, SK | ME736107 |
| 022. | [2C] | 94901-39020 | WASHER, PLATE, SK | ME736108 |
Include in #3:
09180-03990
as TIMER ASSY, AUTOMA
Cross reference number
| Part num | Firm num | Firm | Name |
| 09180-03990 | ME743307 | TIMER ASSY, AUTOMA | |
| ME743307 | MITSUBISHI | TIMER ASSY, AUTOMA |
