09180-03470 TIMER ASSY, AUTOMA Denso Cross

Information timer assy, automa

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy TIMER ASSY, AUTOMA 09180-03470 genuine, new aftermarket engine parts with delivery

KIT List:

Timer assy, automa	No Application
Timer assy, automa	No Application
Timer assy, automa	No Application

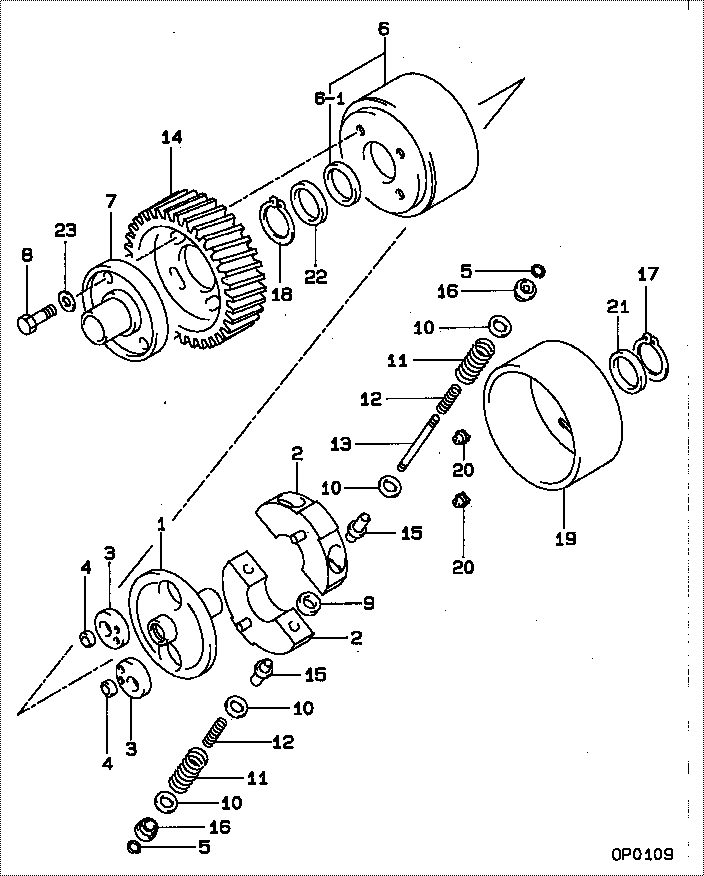

Scheme ###:

000.	[01]	09180-03470	TIMER ASSY, AUTOMA
001.	[01]	09181-11370	HUB, TIMER	22516-1680A
002.	[02]	09183-60960	WEIGHT SUB-ASSY, T
003.	[02]	09189-50250	CAM, TIMER	22545-1340A
004.	[02]	09189-50260	CAM, TIMER	22545-1350A
005.	[04]	94907-10880	WASHER, SNAP	22518-1110A
006.	[01]	09184-00960	FLANGE, TIMER DRIV	22513-2200A
006-001.	[01]	09186-70260	PLATE, TIMER DRIVI
007.	[01]	09241-50720	FLANGE, COUPLING	22611-1880A
008.	[04]	94904-04421	BOLT, HEXAGON	22865-1230A
009.	[02]	09184-30390	STOPPER, TIMER WEI	22521-1060A
010.	[8C]	94901-38180	WASHER, PLATE, SK	22885-5870A
010.	[8C]	94901-38190	WASHER, PLATE, SK	22885-5880A
010.	[8C]	94901-38200	WASHER, PLATE, SK	22885-5890A
010.	[8C]	94901-38910	WASHER, PLATE, SK
010.	[8C]	94901-38920	WASHER, PLATE, SK
011.	[04]	09181-81000	SPRING, TIMER SUB
012.	[04]	09181-92910	SPRING, TIMER
013.	[02]	09188-40070	SUPPORT, TIMER SPR	22519-1080A
014.	[01]	09185-10440	GEAR, TIMER DRIVIN	13613-1280A
015.	[04]	09181-70290	SEAT
016.	[04]	09181-70270	SEAT	22517-1310A
017.	[01]	90557-35000	RING, SHAFT SNAP	22887-1320A
018.	[01]	90557-30000	RING, SHAFT SNAP	22887-1330A
019.	[01]	09185-60400	COVER, TIMER	22512-1620A
020.	[02]	09188-20030	ROLLER, TIMER	22522-1040A
021.	[2C]	94901-38070	WASHER, PLATE, SK	22877-2120A
021.	[2C]	94901-38060	WASHER, PLATE, SK	22877-2110A
021.	[2C]	94901-38050	WASHER, PLATE, SK	22877-2100A
021.	[2C]	94901-38040	WASHER, PLATE, SK	22877-2090A
021.	[2C]	94901-38030	WASHER, PLATE, SK	22877-2080A
021.	[2C]	94901-38020	WASHER, PLATE, SK	22877-2070A
022.	[2C]	94901-38010	WASHER, PLATE, SK	22877-2180A
022.	[2C]	94901-38000	WASHER, PLATE, SK	22877-2170A
022.	[2C]	94901-37990	WASHER, PLATE, SK	22877-2160A
022.	[2C]	94901-37980	WASHER, PLATE, SK	22877-2150A
022.	[2C]	94901-37970	WASHER, PLATE, SK	22877-2140A
022.	[2C]	94901-37960	WASHER, PLATE, SK	22877-2130A
023.	[04]	09241-70060	WASHER, COUPLING S	22867-1490A

Include in #3:

09180-03470 as TIMER ASSY, AUTOMA

09300-04800

09300-05093

Cross reference number

Part num	Firm num	Firm	Name
09180-03470			TIMER ASSY, AUTOMA
22510-2650A		HINO	TIMER ASSY, AUTOMA
S2251-02650-A		HINO	TIMER ASSY, AUTOMA

Information:

Table 1
Pin Number Description Pin Number Description
J1-1 No Connection J1-36 Exhaust Pressure Active Analog Input 1
J1-2 No Connection J1-37 Exhaust Temperature Active Analog Input 2
J1-3 No Connection J1-38 Alarm Data Link
J1-4 RS-485 TX + J1-39 No Connection
J1-5 RS-485 TX - J1-40 No Connection
J1-6 RS-485 Shield J1-41 CAN Port 2 Low
J1-7 PWM/Freq/STG 9 J1-42 CAN Port 1 Shield
J1-8 CDL/ATA + J1-43 RS-232 Port 2 GND
J1-9 CDL/ATA - J1-44 PWM/Freq/STG 13
J1-10 PWM/Freq/STG 10 J1-45 STG 1
J1-11 No Connection J1-46 STG 2
J-12 No Connection J1-47 STG 3
J-13 RS-232 Port 1 TX J1-48 CAN Port 2 Shield
J-14 No Connection J1-49 PWM/Freq/STG 7
J-15 No Connection J1-50 CAN Port 1 High
J-16 No Connection J1-51 PWM/Freq/STG 8
J-17 RS-485 RX + J-52 + Battery
J-18 RS-485 RX - J-53 + Battery
J1-19 UPS Backup Battery (12V) J1-54 R-Terminal
J1-20 PWM/Freq/STG 11 J1-55 STG 4
J1-21 No Connection J1-56 PWM/STG 5
J1-22 RS-232 Port 1 RX J1-57 PWM/STG 6
J1-23 RS-232 Port 1 DTR J1=58 System Status LED (300mA Sinking Driver)
J1-24 No Connection J1-59 System Problem LED (300mA Sinking Driver 2)
J1-25 No Connection J1-60 Over Press LED (300mA Sinking Driver 3)
J1-26 PWM/Freq/STG 14 J1-61 Over Temp LED (300mA Sinking Driver 4)
J1-27 RS-232 Port 2 TX J1-62 RS-232 Port 3 TX
J1-28 PWM/Freq/STG 12 J1-63 RS-232 Port 3 RX
J1-29 No Connection J1-64 RS-232 Port 3 GND
J1-30 RS-232 Port 1 DCD J1-65 - Battery
J1-31 RS-232 Port 1 GND J1-66 STB 1
J1-32 No Connection J1-67 - Battery
J1-33 CAN Port 2 High J1-68 Aux +5V Supply
J1-34 CAN Port 1 Low J1-69 Aux Supply Return
J1-35 RS-232 Port RX J1-70 Keyswitch
